72" (1.85M) AHLSTROM CALANDER STACK REFURBISHED
No longer available
72" (1.85M) AHLSTROM CALANDER STACK REFURBISHED
Description
106398

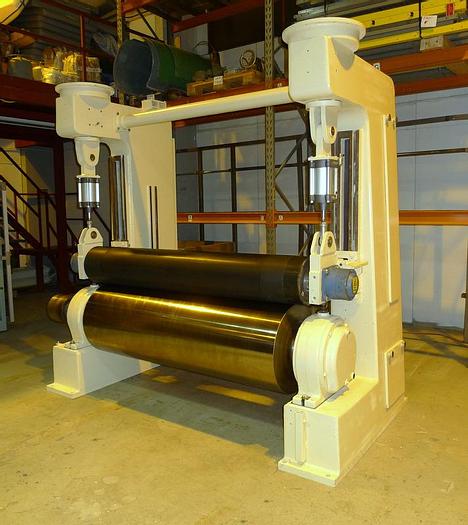

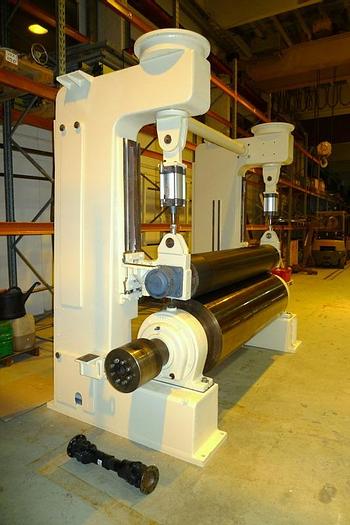

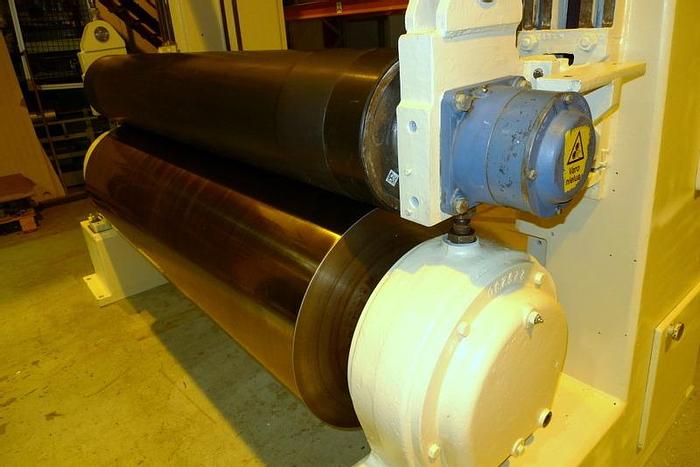

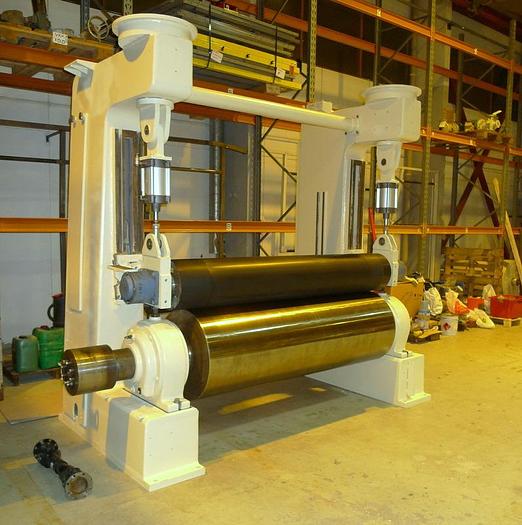

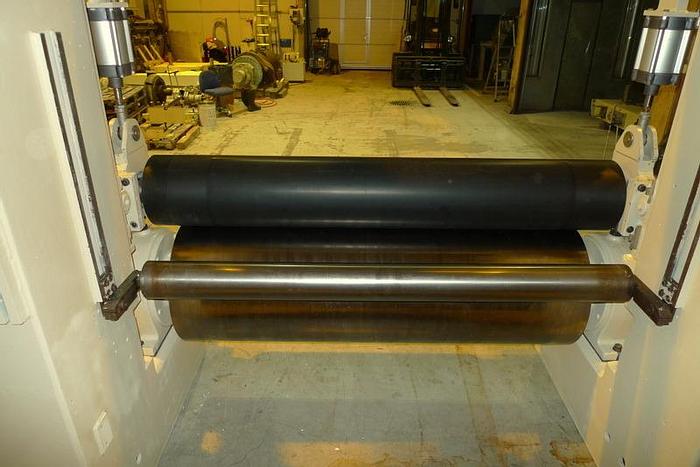

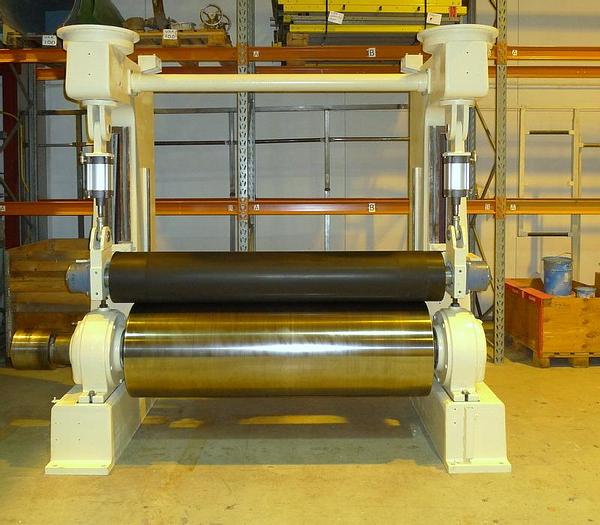

One (1) Used 72" (1850mm) Ahlstrom Calander Stack
Was in use as part of a filter/tape paper machine.
GSM range 20-110 gsm
Machine speed 100-400mpm
Calander section part list:
1.Frames 2 pieces, carbon steel with painting1.Main dimensions : height 2660mm mm, 1280 mm x 350 mm
2.Lower roll : diameter 600 mm, face length 1850mm1.Spare roll 1 piece
3.Upper rolls :1.diameter 340 mm, total lenght 3000 mm
4.diameter 500 mm, total lenght 2700 mm
5.diameter 360 mm, total lenght 2620 mm, damaged covering
6.Other1.auxciliary roll, diameter 145 mm
7.hydraulic unit
8.gear box 2 units

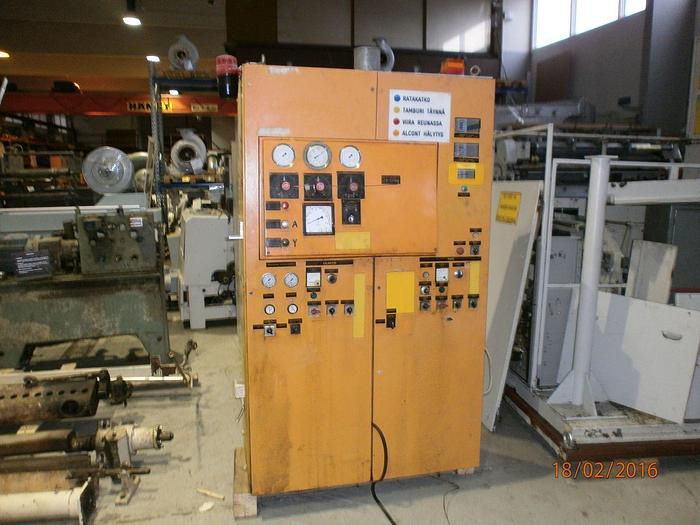

9.cabinet for control units
10.Transportation dimensions:1.Frames: 2 units , weight 1200 kg each,
Specifications
| Manufacturer | AHLSTROM |
| Model | CALENDER STACK |
| Condition | Used |
| Stock Number | 106398 |
| Width | 72.0 in |
| 1.frames 2 pieces, carbon steel with painting1.main dimensions | height 2660mm mm, 1280 mm x 350 mm |
| 2.lower roll | diameter 600 mm, face length 1850mm1.Spare roll 1 piece |
| 3.upper rolls | 1.diameter 340 mm, total lenght 3000 mm |
