80" DOUBLE E MFG UNWIND AND SLITTING SYSTEM MFG. 2013

80" DOUBLE E MFG UNWIND AND SLITTING SYSTEM MFG. 2013
Contact us for price
orCall +1 215-664-6016
Description
903392
One (1) Used 80" Wide Double E Unwinding and Slitting System
Originally built in 2013

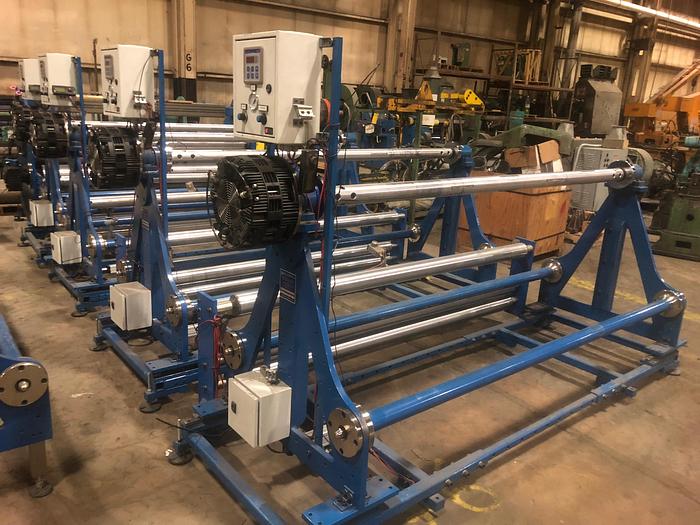

The system comes with three (3) matched unwinds from Double E. The maximum working width is 80" and the maximum diameter is 48". Two of the three unwind stands are guided and fitted with diameter sensors One of the three left is not guided. Lift out 3" air shafts.
Also included with this system is a slitting station. The slitting station will hold tension for the seven unwind stands. It comes equipped with two (2) Mario Cotta Gold Series pneumatic knife holders with mounting equipment and extra blades.
The system was built to feed into another application, which is why it is not equipped with a rewinder.
Unwind stands or slitting station available separately.
Specifications
Manufacturer | DOUBLE E |
Model | 125960-B2433-5 |
Condition | Used |
Stock Number | 903392 |
Width | 80.0 in |
Clamp diameter | 72.0 in |
Rewind diameter | 20.0 in |
