84" DUSENBERY SLITTER REWINDER MODEL 800GB 50" REWIND DIAMETER
No longer available
84" DUSENBERY SLITTER REWINDER MODEL 800GB 50" REWIND DIAMETER
Description
903470.001

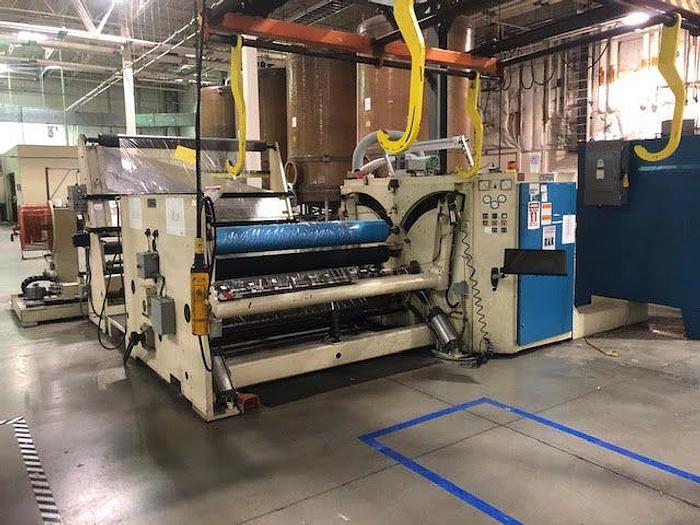

One (1) Used Dusenbery Slitter Rewinder
50" Rewind Diameter,
50" Unwind Diameter,
84" Wide, (80" Slitting Width)
Rewind Slip Core and Lock Core Two Zone,
Slitter KISS Shear or Razor Slitting,
Tidland Air Expanding Female Knife Shaft,
Male Knife Area Designed to Take Tidland Class 3 Male Knife Holder,

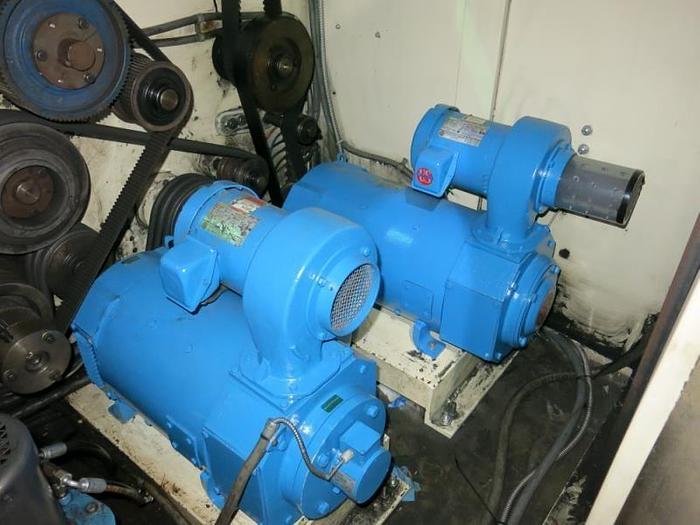

Main Drive and Rewind Drives SSD Digital w/ (2) 25 HP Rewind Drives,
(1) 20 HP Main Drive Recently Replaced,

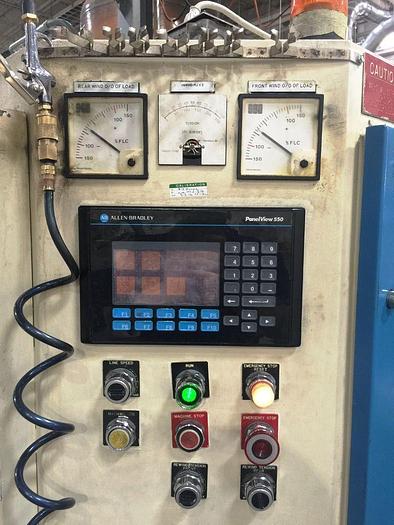

Controls are AB SLC 500 PLC and Allen Bradley Panelview 550 Touch Screen,
Maximum Machine Speed 2000 FPM,
Automatic Minimum Gap Control,
Unwind Stand Shaftless Load, Automatic Edge Guide,
Unwind Both Driven w/ 30 HP Motors,
Unwind chuck sizes: 3", 6", and a set of 10" adapters that fit on the 3" chucks,
Air Cooled Pneumatically Controlled Brake,
Closed Loop Unwind Tension Controls Through Dancer Feedback,
Splice Table w/ 27 and 90 Degree Splice Angle,
Pneumatic Web Clamps w/ Assoicated Spare Parts and Sleeves
Laser diameter sensor for unwind
Twenty (20) female blades included

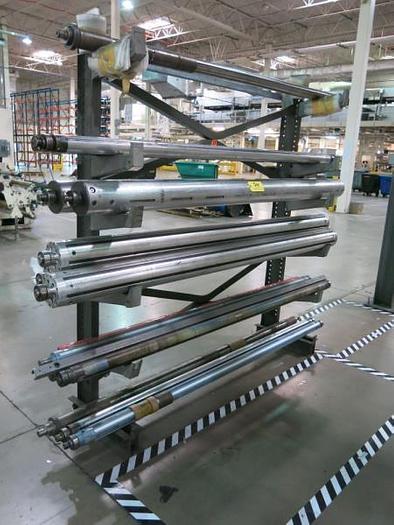

Shafts available:
Ten (10) 3" shafts
Five (5) 6" shafts
Very recently, the following components were replaced with new versions:
Corked rollers
Bowed roller
Main drum roller
Spreader roller
Recently out of service due to plant shut down. Complete documentation included with the machine.
Specifications
Manufacturer | DUSENBERY |
Model | 800GB |
Condition | Used |
Stock Number | 903470.001 |
Width | 84 |
Rewind diameter | 50.0 in |
Unwind chuck sizes | 3", 6", and a set of 10" adapters that fit on the 3" chucks, |
