104" (2.64M) CYLINDER MOULD PAPER MACHINE TOSCOTEC 2002

104" (2.64M) CYLINDER MOULD PAPER MACHINE TOSCOTEC 2002

Contact us for price

orCall +1 215-664-6016

Description

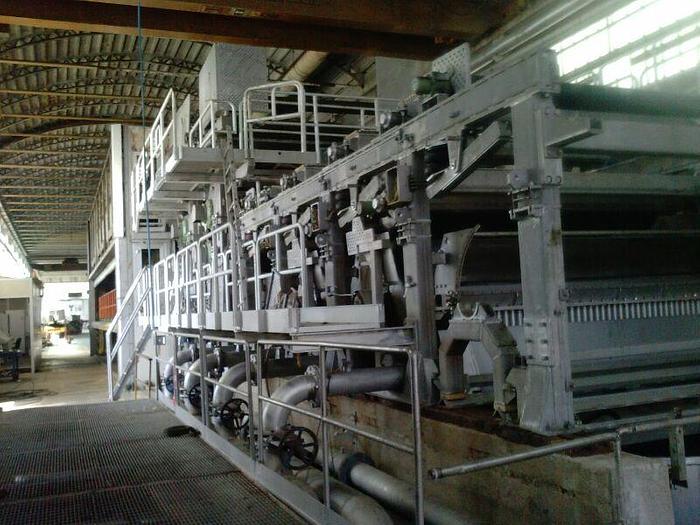

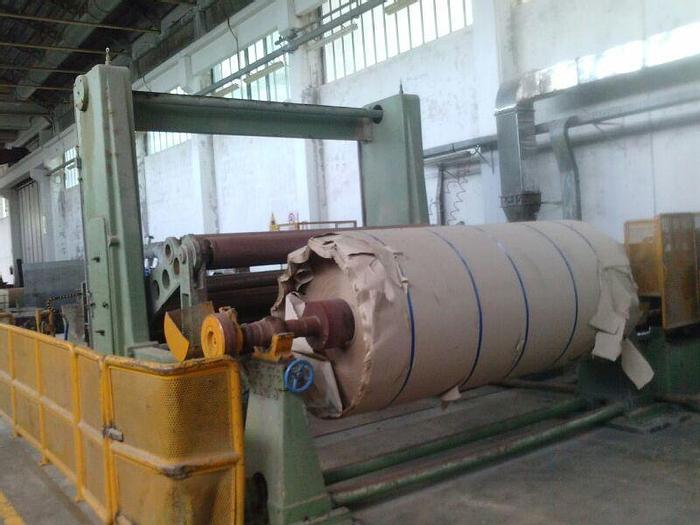

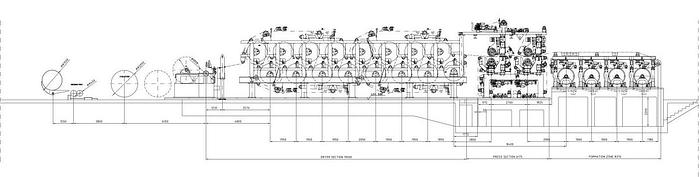

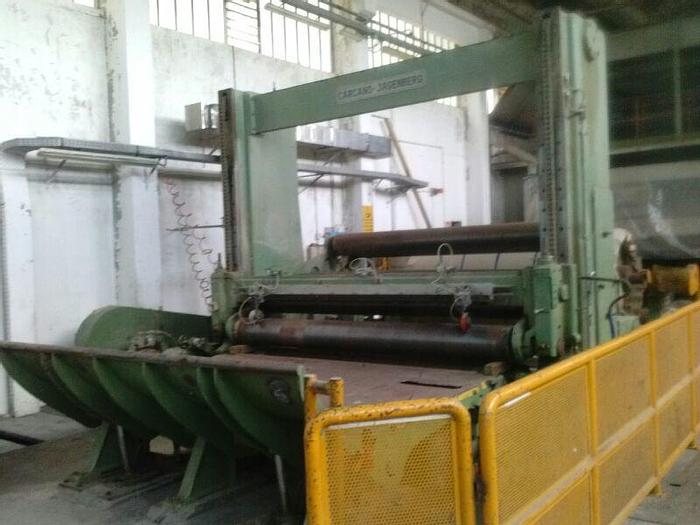

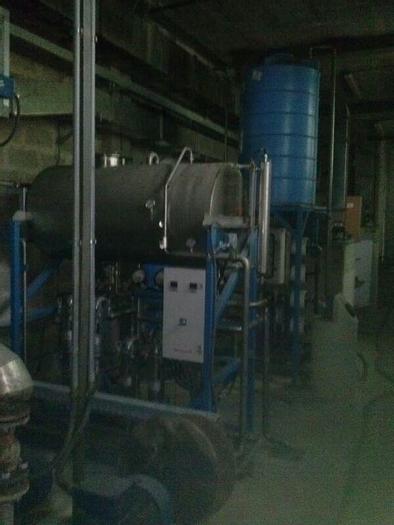

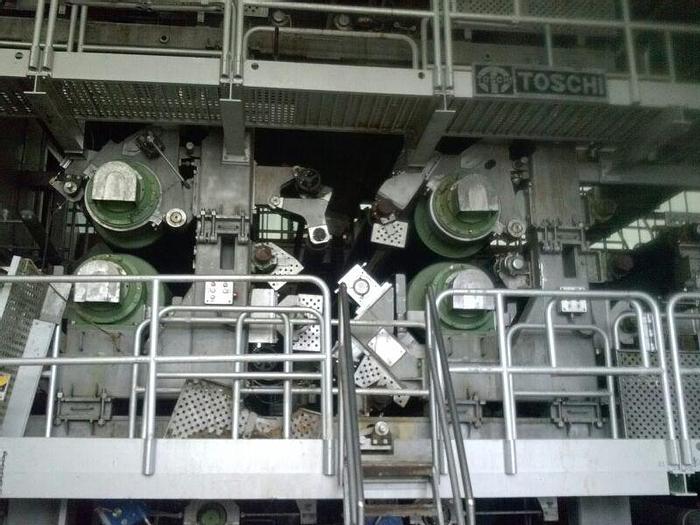

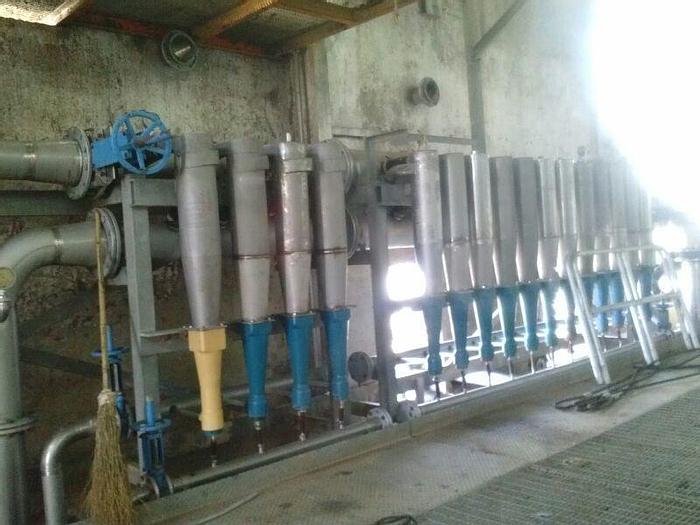

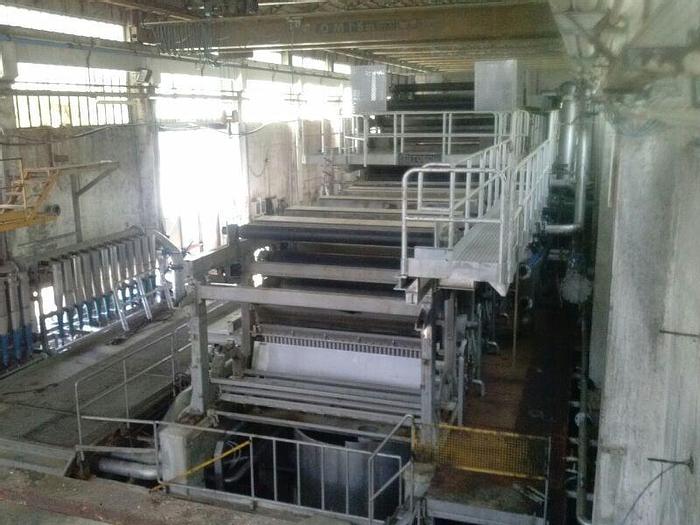

107560 One (1) used 104" (2.64m) wide paper machine built by Toscotec, installed 2002, rated 100 Tpd, 100-250 Gsm, 250m/min, liner / fluting. Consisting of: Forming section all AISI 316 S/S (4) mould formers 49" (1250mm) dia. x 110' (2800mm) face width (1) Headbox (2) Azmec vacuum pumps Dryer Section: (16) dryer cans built by Toscotec, 59" (1500mm) dia. x 116" (2950mm) face width , working pressure 150PSI (10 bar ) QCS Measurex for Moisture and Grammage Carcano Pope reel Carcan slitter / rewinder for reels up to 57" (1450) dia. x 104"(2650mm) trim width, speed 800m/min Right hand DC drive Bono Diathermic oil boiler for 10 tons steam per hour. Stock Prep: Celli HD pulper Celli 17" DD refiner Celli 22" DD refiner Aga 17" refiner Aga 22" refiner (2) Toscotec Selectifiers , perforated baskets , 150TPD (2) vibrating screens for rejects (2) HD cleaners (2) Robuschi Fan pumps (1) 3 Stage Albia cleaners Shut down in 2011

Specifications

ManufacturerTOSCOTEC
ModelPAPER MACHINE
ConditionUsed
Stock Number107560
Width104
