2.0M (79") HEDEMORA GL&V TWIN WIRE PRESS 200 TPD 1985

2.0M (79") HEDEMORA GL&V TWIN WIRE PRESS 200 TPD 1985

Contact us for price

orCall +1 215-664-6016

Description

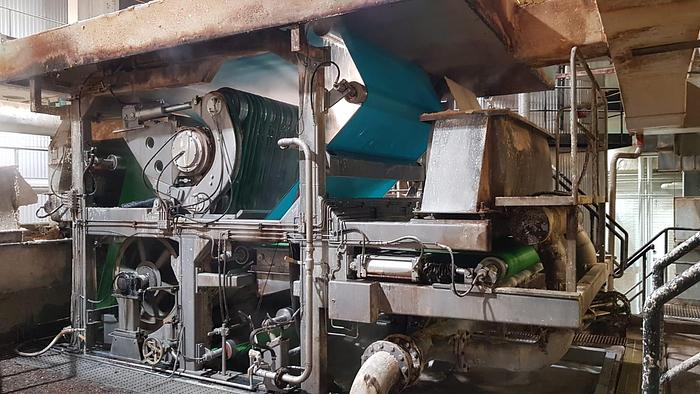

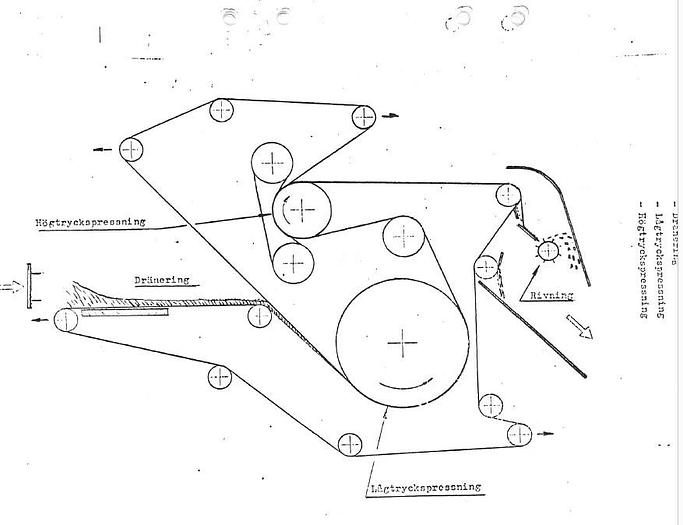

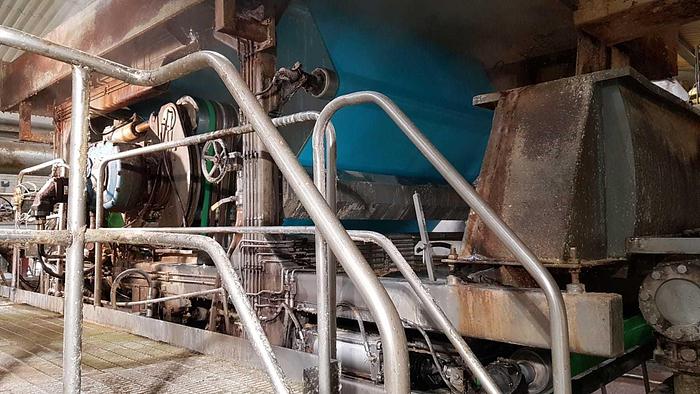

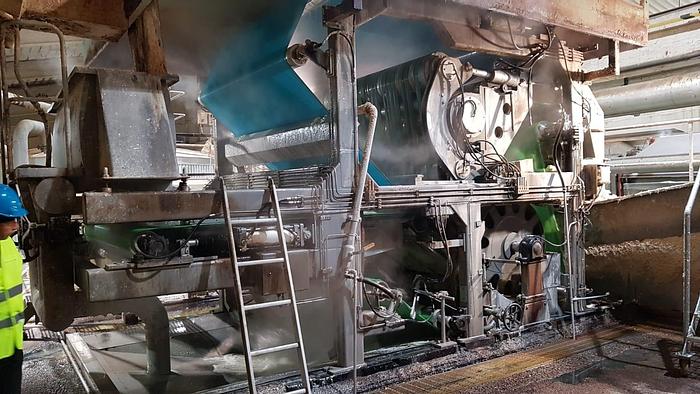

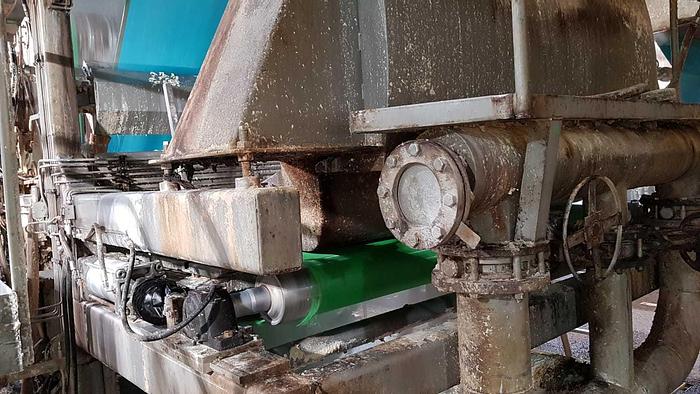

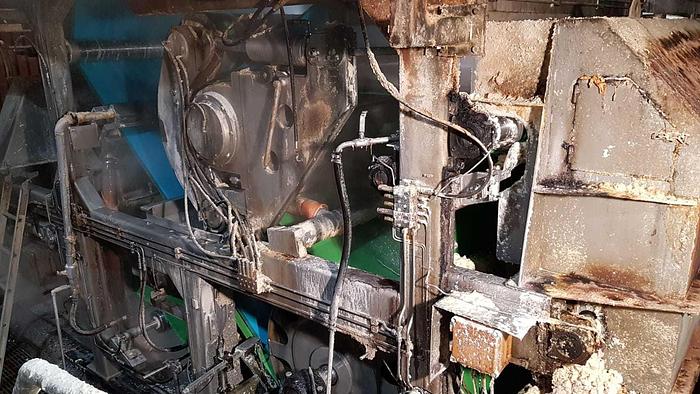

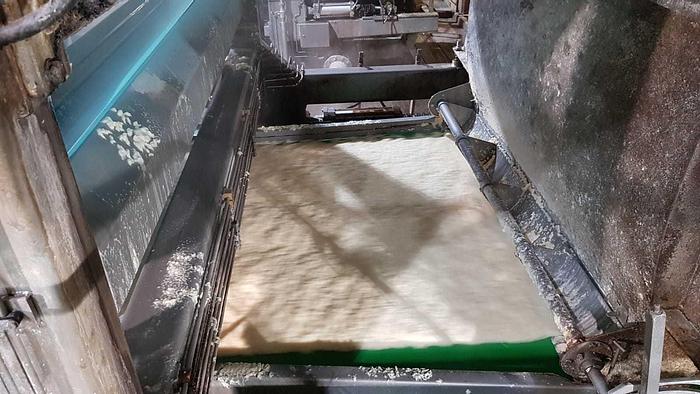

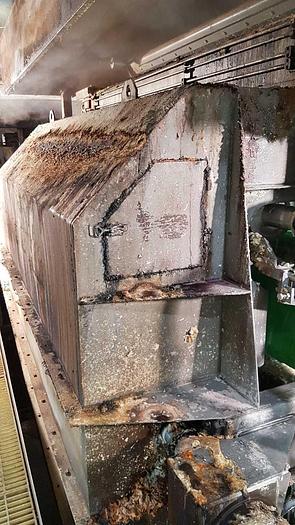

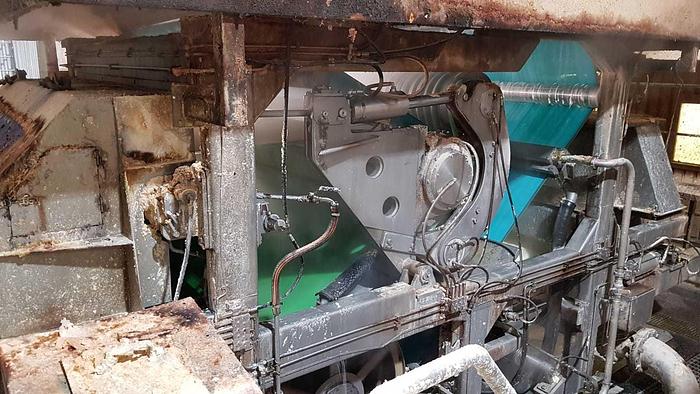

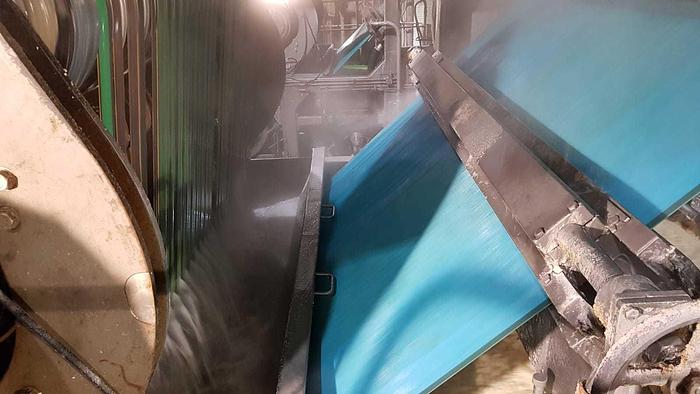

107829 One (1) used 79" (2.0M) Hedemora / GL&V twin wire dewatering press, Rated for 200 TPD, Built 1985 Conc.min. % 3 Conc.max. % 30 200 Tons per day at inlet of 4 %, with 80 to 100 ml CSF, with entrance of 3 % expected capacity will be 150 TPD Speed regulated between 0 and 60 mpm top wire: 9.2 meters bottom wire 14,2 meters Frame made in Stainless Steel Machine has three dewatering zones gravity table low pressure zone high pressure zone with 50 belts to distribute the pressure Hydraulic loading All parts in contact with water/pulp made in Stainless Steel Thune pneumatic wire guides Main drive of 22 kw, hydraulic drive including repulper screw after outlet with motor of 11 kw Along with all the spares and fabrics.

Specifications

ManufacturerHEDEMORA
ModelSLUDGE PRESS
ConditionUsed
Stock Number107829
Top wire9.2 meters
Width8000
Rewind diameter30.0 in
Clamp diameter51.0 in
