HEDEMORA TYPE VDF3 66 X 15 SAVEALL DISC FILTER 276 SQM
No longer available
HEDEMORA TYPE VDF3 66 X 15 SAVEALL DISC FILTER 276 SQM
Description
1U8095

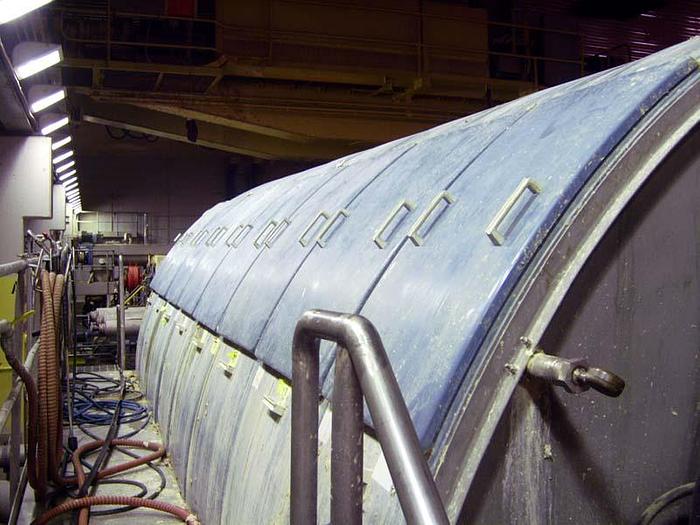

One (1) used Hedemora Type VDF 3,66 X 15 Disc Filter
The Hedemora VDF disc filter is designed for pro-
cessing paper machine white water into high quality
filtrate while, at the same time, recovering the fibers.
It is also designed for thickening of low to medium
freeness pulp, especially where high discharge
consistency is required.
Description Disc diameter : 3660 mm (144")
No. of discs : 15 pcs.
Filter area : 276 sqm
Inlet to filter;
Backwater, flow : 14.000 lpm
Cons. : 0,04 - 0,08 %
Temp. : 40 - 50 C degr. (104 Deg. F - 122 Deg. F)
pH : 4 - 8
Re-circulated Clowdy filtrate, flow :
Pulp mat, amount : max. 120 kg/min
Cons. : approx. 3,5 %
Freeness : 20 - 25 SR
Outlet from filter;
Clear filtrate, total flow : 16.000 lpm
Solids : max. 25 mg/l
Clowdy filtrate : 8.000 lpm
Pulp : 133 kg/min
Specifications
Manufacturer | HEDEMORA |
Model | VDF3 |
Condition | Used |
Stock Number | 1U8095 |
Description disc diameter | 3660 mm (144") |
No. of discs | 15 pcs. |
Filter area | 276 sqm |
Backwater, flow | 14.000 lpm |
Cons. | approx. 3,5 % |
Temp. | 40 - 50 C degr. (104 Deg. F - 122 Deg. F) |
Ph | 4 - 8 |
Pulp mat, amount | max. 120 kg/min |
Freeness | 20 - 25 SR |
Clear filtrate, total flow | 16.000 lpm |
Solids | max. 25 mg/l |
Clowdy filtrate | 8.000 lpm |
Pulp | 133 kg/min |
