256" ( 6.50M) FARRELL ROLL GRINDER 50/63" DIAMETER

256" ( 6.50M) FARRELL ROLL GRINDER 50/63" DIAMETER

orCall +1 215-664-6016

Description

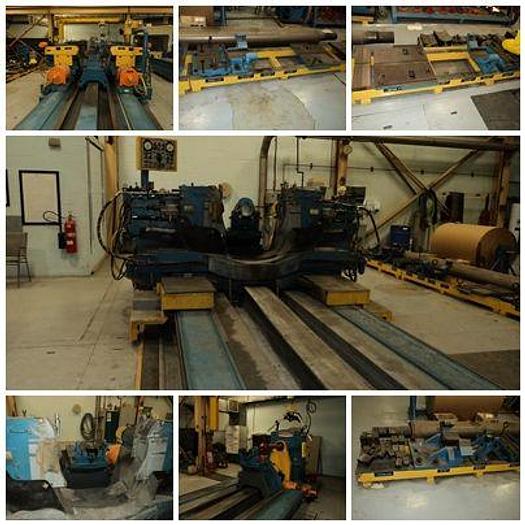

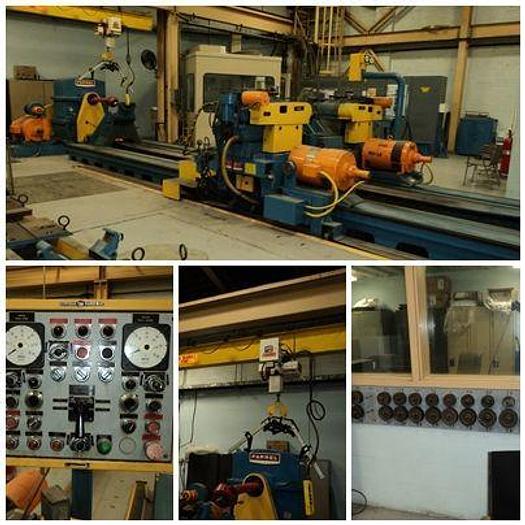

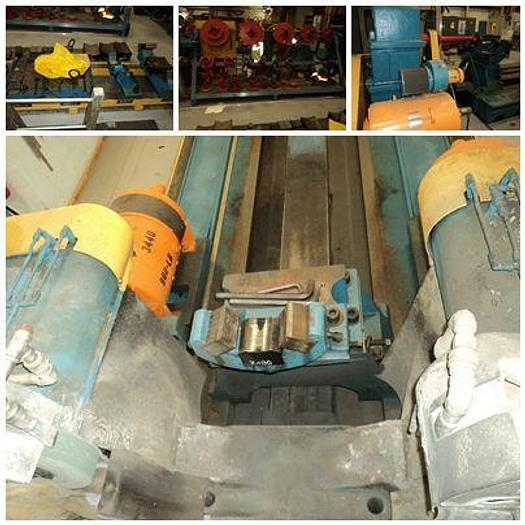

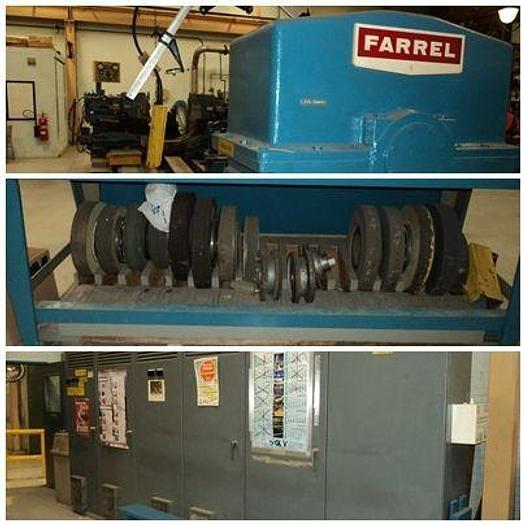

107617 One (1) Used Farrell Roll Grinder 50/63" x 256" Roll Grinder - Farrell - 50/63" x 256" Two-wheel roll capable of grinding all rolls bed: 50/63" x 256" (1270 mm/1600 mm) Rolls up to 50" (1270 mm) can be ground on the centerline of the machine. Rolls from 50" up to 63" are mounted above the centerline and are driven by a drive shaft. Rolls up to 72"(1830 mm) in diameter can be ground above the centerline, by removing one wheel and guard. Max Roll length 256" (6500 mm) Grinding carriage travel is 280" (7110 mm), providing additional travel for roll set-up. * size 8 type W rotoclone dust arrestor complete with suction pipes built into grinder carriage * roll grooving attachment including grooving head * 2 hydrostatic wheel spindles, 360 to 1062 RPM speed range * Grinding wheels, 20" (508 mm) diameter x 3" (76 mm) face * Carriage traverse drive, 30 to 1 speed range; 2" (51 mm) to 60" (1524 mm) per minute, infinitely variable. * Cam type crowning and concaving device Range .400" crown, .400" concave, on diameter * Approximate shipping weight: 57 540 kg * Motors: 1 Motor 25 HP DC, 2 Motors 26 HP DC, 1 Motor 5 HP DC, All tools included

Specifications

ManufacturerFARRELL
ModelROLL GRINDER
ConditionUsed
Stock Number107617
Bed50/63" x 256" (1270 mm/1600 mm)
* approximate shipping weight57 540 kg
