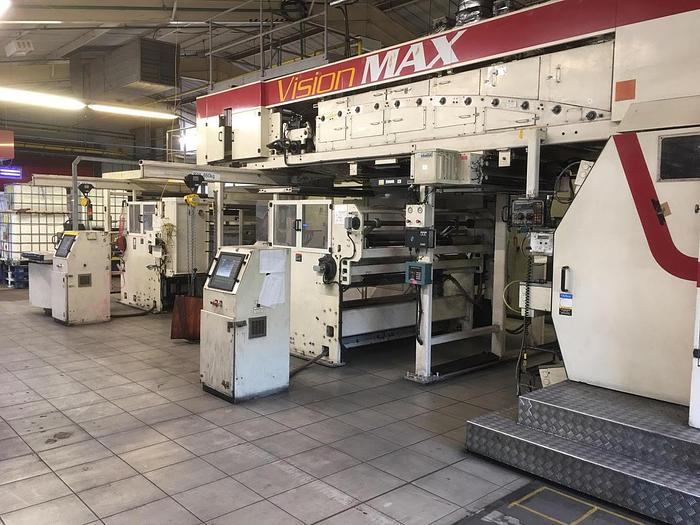

40" (1.0M) PCMC VISION MAX 8 COLOR FLEXOGRAPHIC CI PRINTING PRESS
No longer available
40" (1.0M) PCMC VISION MAX 8 COLOR FLEXOGRAPHIC CI PRINTING PRESS
Description
108922
One (1) used PCMC 40" , 8 color, Flexographic CI printing press,
Sleeve type: Sleeve change in press, plate and anilox
Print repeat: 305-610
Max unwind
diameter: 32" (800 MM)

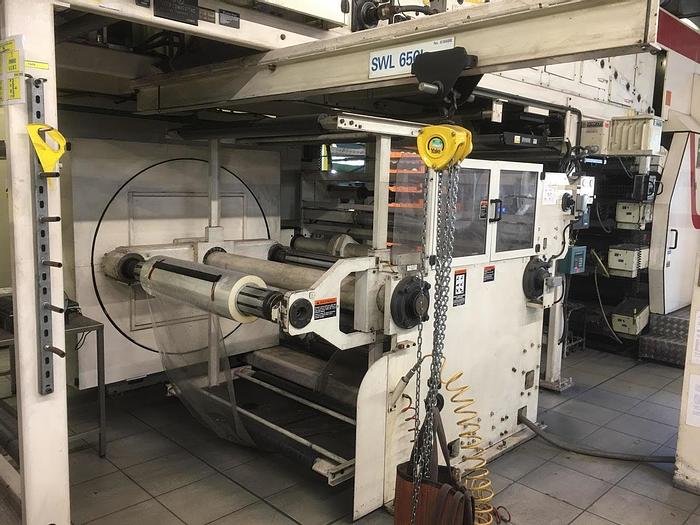

Unwind type: Double turret unwind flying splice
Rewind Type: Double turret rewind flying splice
Number,size airshafts: (4) x (3") 76mm
Gear Pitch : 5 mm
Drying type: gas
Drying length: 4 metres appriox

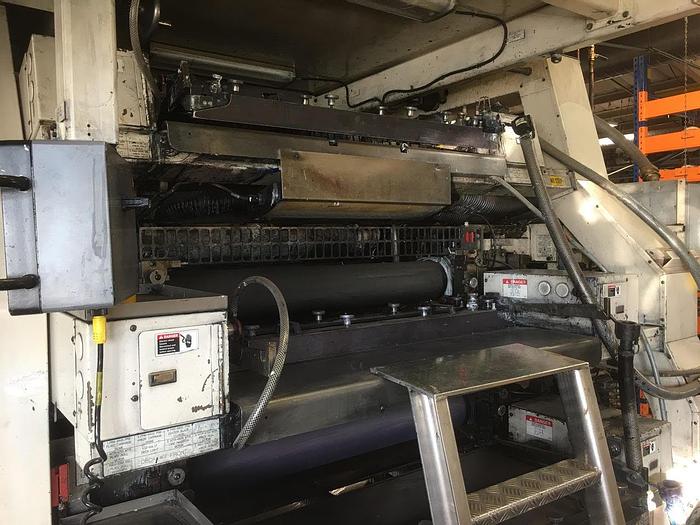

Doctor blades: (16) chambered doctor blades
Edge guide: 2 x fife
Video camera: AVT Vision inspection camera
Materials: LDPE from 25 My-PP 12 My-paper from 33 gsm
Number of Anilox: (16)
Number of Sleeves: ( 250 }
Roll hoists: ( 2 ) unwind and rewind
New 2000
Specifications
| Manufacturer | PCMC |
| Model | VISION MAX 8 |
| Condition | Used |
| Stock Number | 108922 |
| Width | 40.0 in |
| Sleeve type | Sleeve change in press, plate and anilox |
| Print repeat | 305-610 |
| Diameter | 32" (800 MM) |
| Unwind type | Double turret unwind flying splice |
| Rewind type | Double turret rewind flying splice |
| Number,size airshafts | (4) x (3") 76mm |
| Gear pitch | 5 mm |
| Drying type | gas |
| Drying length | 4 metres appriox |
| Doctor blades | (16) chambered doctor blades |
| Edge guide | 2 x fife |
| Video camera | AVT Vision inspection camera |
| Materials | LDPE from 25 My-PP 12 My-paper from 33 gsm |
| Number of anilox | (16) |
| Number of sleeves | ( 250 } |
| Roll hoists | ( 2 ) unwind and rewind |
