51" (1.30M) PASABAN KB SHEETING COUNTING AND PALLETIZING MACHINE MFG. 2006
No longer available
51" (1.30M) PASABAN KB SHEETING COUNTING AND PALLETIZING MACHINE MFG. 2006
Description
107508

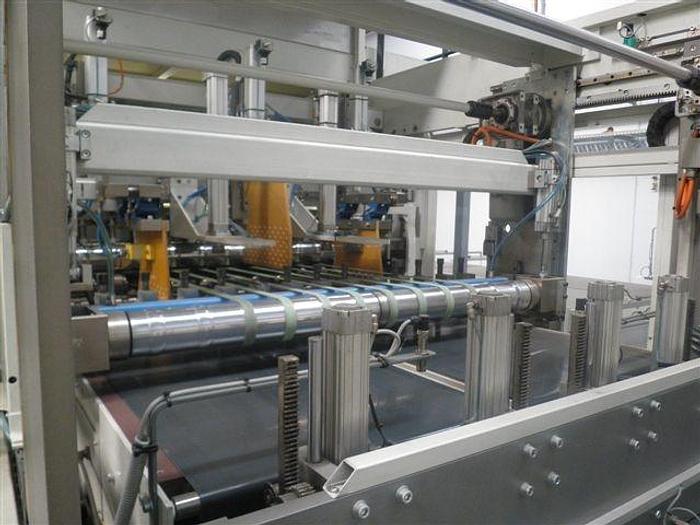

One (1) Used Pasaban KB Sheeting Counting and Palletizing Machine
The machine is a sheeting / counting / palletising machine for the processing of paper, cardboard and other substrates in finishing lines. Basic Operation The printed material is loaded onto the unwind in web (reel) form. The web is guided and side slitted prior to entering the knife. After the knife, the cut sheets are sent to one of two delivery systems where the reams are counted to a predetermined number, have a cardboard divider inserted and sent to a palletising system. The palletising system loads the finished reams onto a finished pallet.
Features: • 1300 m twin head rotary cutter • 2 ream delivery sections • Sheet inspection section • De-curling system • Web guiding system (FIFE) • Setup for inline sheeting direct from the printing press without supplementary loading of the reel onto an unwind • Slitting with automatic positioning • Trim removal system • Multiple paper jam sensors • Static elimination system • Walkways, stairs and safety guards • Rejected sheet shredding and removal system • Cardboard divider stacking and feeding system • Ream conveying system • Automatic pallet feeding system with pallet magazine • Stack conveying line
Specifications Year: 2006, Machine width: 1300 mm, Maximum speed (mechanical design): 300M/min, Maximum speed (operational): 200M/min, Minimum crawl speed: 7M/min, Web width: 550–1250 mm, Max trimmed web width: 1200 mm, Reel diameter: 400–1100 mm, Core diameter: 152 mm, Cut sheet size (Single): 450–1000 mm long X 550–1200 mm wide, Cut sheet size (DoublE): 600–800 mm long X 450–600 mm wide, Sheet length accuracy: +/- 0.5mm for sheets <1000 mm, Sheet angle accuracy: +/- 0.5mm per 1000mm length, Cut to register accuracy: +/- 0.15 mm, Maximum knife loading: 600g/m3, Delivered ream height: 20 mm – 80 mm, Noise leveL: 80 dB(A), Consumed power(Approx full load): 60 kW, Power supply: 415V 50Hz, Control System: Siemens S7–300 / Pasaban knife control system, This machine was install as new in 2006 we can report that it is in very good condition as it has been used very lightly over the years and has been carefully maintained ,
In production , PRICE NEW: 6.8 Million USD
Specifications
Manufacturer | PASABAN |
Model | SHEETER |
Year | 2006 |
Condition | Used |
Stock Number | 107508 |
Width | 51.0 in |
Features | • 1300 m twin head rotary cutter • 2 ream delivery sections • Sheet inspection section • De-curling system • Web guiding system (FIFE) • Setup for inline sheeting direct from the printing press without supplementary loading of the reel onto an unwind • Slitting with automatic positioning • Trim removal system • Multiple paper jam sensors • Static elimination system • Walkways, stairs and safety guards • Rejected sheet shredding and removal system • Cardboard divider stacking and feeding system • Ream conveying system • Automatic pallet feeding system with pallet magazine • Stack conveying line |
In production , price new | 6.8 Million USD |
