40" (1.01M) CAVALLERI MODEL CT12 SYNCRO ROTARY SHEETER MFG. 2010
No longer available
40" (1.01M) CAVALLERI MODEL CT12 SYNCRO ROTARY SHEETER MFG. 2010
Description
107643

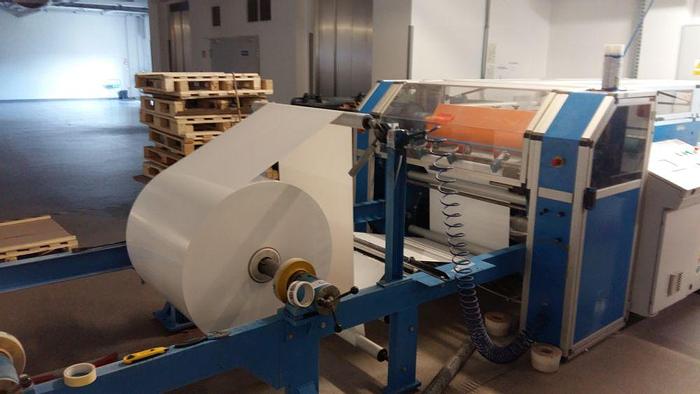

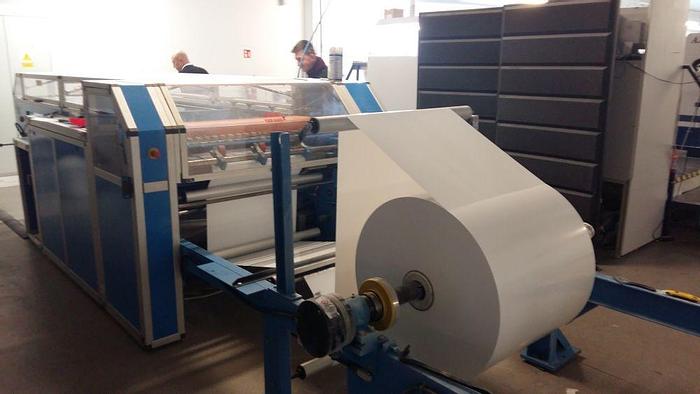

One (1) Used Cavalleri CT12 Syncro Sheeter
Manufactured: 2010
Paper thickness:10-250 gr
5.7 "LCD touch screen
2 x unwinder
Photocell
2 expanding shafts
Quick size change
TECHNICAL DATA
web width 1,000 mm (39")
Max. knife width 1.050 mm (40")
Max. material width 1.020 mm
Min. Cutting length 200 mm
Max. Cutting length 1.010 mm
Cutting accuracy ± 0.15 mm
Speed max. 175 cuts / min
In production in very good condition like new
Very accurate Sheeter
Cut sheets are transported by conveyor belts and laid (from 5 to 30) on the collecting drum.
A synchronized conveyor transports the cut sheets from the drum and arranges them
on the receiving table. The perfect stacks of sheets are created thanks to the system special vibrators.
A mechanical receiving table equipped with an optical scanner for accurate leveling without the need for manual operation.
Upper and lower limit switch for stacks control.
The machine is also equipped with an electronic axis synchronization system
cutting length controlled by the touch screen on which it is positioned formats between 200 mm and 1.010 mm, regulates the machine speed and
production information is obtained.
Pcs. 4 brushless motors that do not require servicing and have high accuracy of work.
· Accident protection controlled by micro switches,
which stop the machine when opened
· Mushroom safety switches (in accordance with standards
safety);
· A compressed air blower system that facilitates insertion
thin materials for the cutting system;
· An electronic vibrator ensuring alignment of sheets;
· Tele-modem for remote control.
· High-performance antistatic bar system (3 bars + power supply)
Specifications
Manufacturer | CAVALLERI |
Model | CT12 |
Year | 2010 |
Condition | Used |
Stock Number | 107643 |
Width | 40.0 in |
Manufactured | 2010 |
Paper thickness | 10-250 gr |
