60" (1500MM) NEW SRC SYSTEMS LTD. CORE CUTTER MDL. CC15
60" (1500MM) NEW SRC SYSTEMS LTD. CORE CUTTER MDL. CC15
Contact us for price
orCall +1 215-664-6016
Description
200210

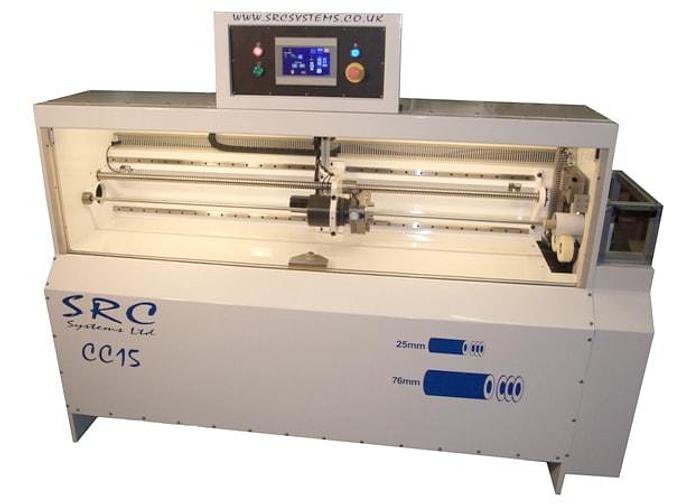

One (1) New 60" (1500mm) SRC Systems Core Cutter
Maximum core length: 60" (1500mm)
Core sizes: 1" & 3" & 6" 25mm & 76mm & 152mm
Core holding: pneumatic chuck
Knife height control: programmable
Knife cut: Rotary blade (lubricated)
Core draw in: Automatic
Position control: Servo motor
Programmable cutting sizes
7" customer touch screen
Safety door: automatically operated
All SRC Systems, Ltd. machines come with remote support for the life of the machine and a 12-month parts warranty
For slitting: Foils, Films, Papers, Laminates
SRC has over 25 years experience. Est. 1996
Specifications
| Manufacturer | SRC SYSTEMS LTD. |
| Model | CC15 |
| Condition | Used |
| Stock Number | 200210 |
| Width | 60.0 in |
| Maximum core length | 60" (1500mm) |
| Core sizes | 1" & 3" & 6" 25mm & 76mm & 152mm |
| Core holding | pneumatic chuck |
| Rewind diameter | 60.0 in |
| Clamp diameter | 60.0 in |
| Knife height control | programmable |
| Knife cut | Rotary blade (lubricated) |
| Core draw in | Automatic |
| Position control | Servo motor |
| Safety door | automatically operated |
| For slitting | Foils, Films, Papers, Laminates |
