THUNE SCREW PRESS MODEL SP23
THUNE SCREW PRESS MODEL SP23
orCall +1 215-664-6016
Description

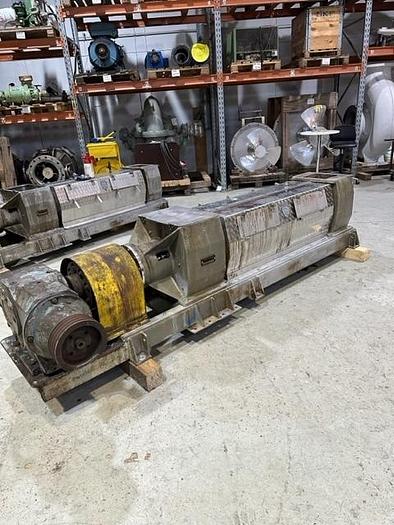

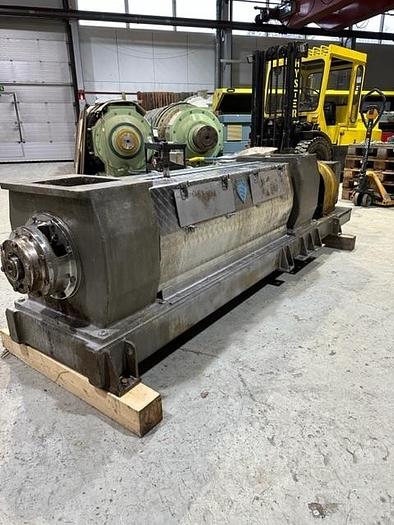

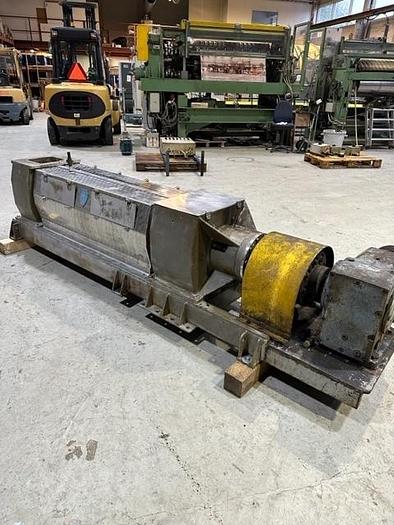

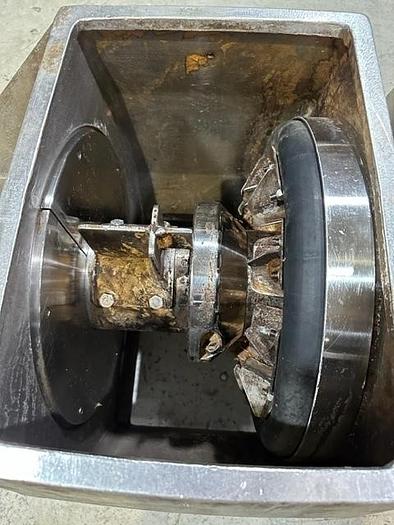

Used Thune Screw Press Model SP23
Two pieces available.
Very good condition

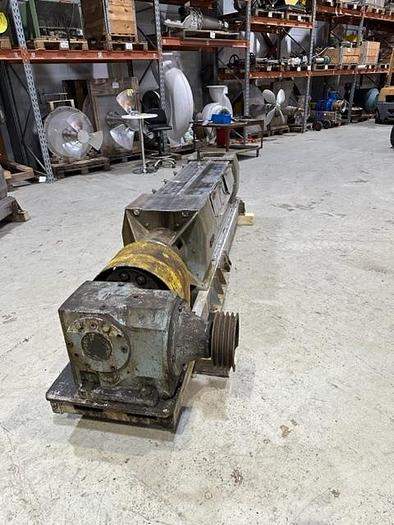

Gearbox available but no motor.
Production data
Material: Defibrator fiber board pulp
Nominal capacity 20 t/day
10t/day (minimum)
Inlet consistency: 3,5% t o,5% cons. regulated
Outlet consistency: 35% – 0,5%
Freenes: 15-17 SR
Temperature 40-50 c
Drive unit: Cyclo HT 88 U=29:1
Coupling: Hateco TA 120
Control Panel: Art. No. 20656-001

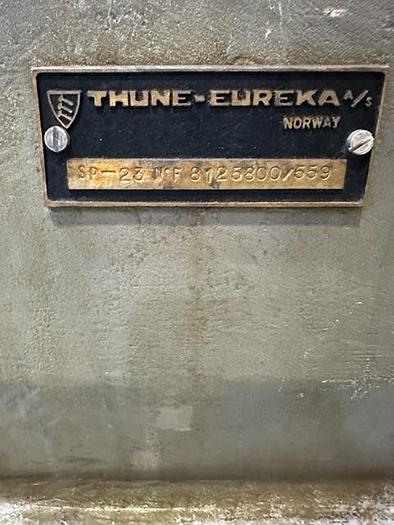

Serial: N.F 8125800/559
Specifications
| Manufacturer | THUNE |
| Model | SP23 |
| Condition | Used |
| Serial Number | N.F 8125800/559 |
| Stock Number | 109831 |
| Used 3350mm kraft paper mill (gsm | 180g/㎡) |
| Stopped year | Feb. 2023 |
| Product | Kraft paper (One glossed paper) |
| Gsm | 30-180g/㎡ |
| Production capacity | 100ton/day |
| Final product width | 3350mm |
| Design speed | 150-550m/min |
| Operation speed | 390m/min |
| Width direction adjustment device | CP |
| Wire width | 3710mm |
| (sheet moisture in outlet of press | 60%) |
| (the number of cylinders in pre-dryer | ∅1524mm x 10units) |
| (the number of cylinders in after-dryer | Yankee ∅4572mm x 1unit) |
| Main steam pressure (inlet of dryer) | low 0.3/Medium 0.7MPa |
| Mean steam pressure (pre-dryer) | 0.2MPa |
| Mean steam pressure (after dryer) | Yankee 0.35MPa |
| Dew point | 35g 56°C, 120g 61°C |
| Maximum diameter of reel | ∅1800m |
| The number of slitters | 8 units |
| (quality control system | BM) |
| The number of scanner | 1unit |
| Measuring sensor | GSM, moisture |
| Flow direction control system | seed valve, steam pressure |
| Width direction control system | CP |
| Profile control actuator | CP valve |
| Manufacturing year | 1993 |
| Btf equipment was installed in inlet | 2003 |
| Wire forming port was newly installed | 1993 |
| Wire file unit was additionally installed | 1993 |
| Large diameter of press paper roll was installed | 1993 |
| Felt roll front of press 3p was installed | 1993 |
| Paper detector in reel was installed | 1993 |
| New drive system was installed | 1993 |
| Cleaner pump was replaced | 1990 |
| Dandy roll of wire was replaced by diameter 915mm | 1990 |
| Wire was replaced by c-frame type | 1990 |
| Press 3pccr was installed | 1990 |
| Tension control system in winder was installed | 1990 |
| New screen was installed | 1986 |
| Bm detector was installed | 1986 |
| Material | Defibrator fiber board pulp |
| Inlet consistency | 3,5% t o,5% cons. regulated |
| Outlet consistency | 35% – 0,5% |
| Freenes | 15-17 SR |
| Coupling | Hateco TA 120 |
| Control panel | Art. No. 20656-001 |
| Serial | N.F 8125800/559 |
