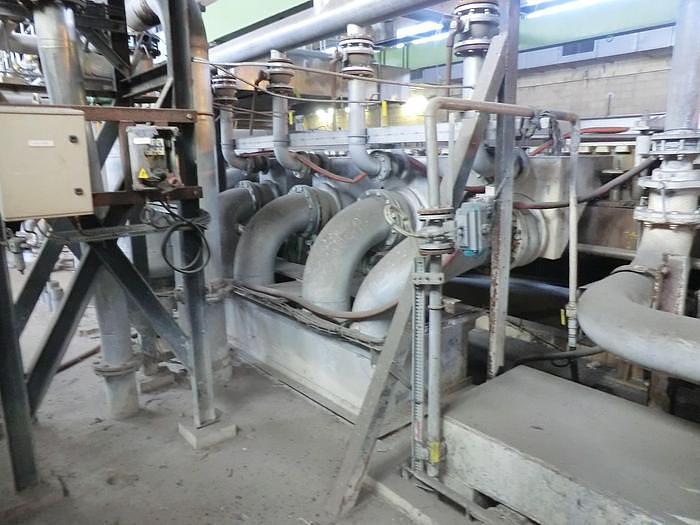

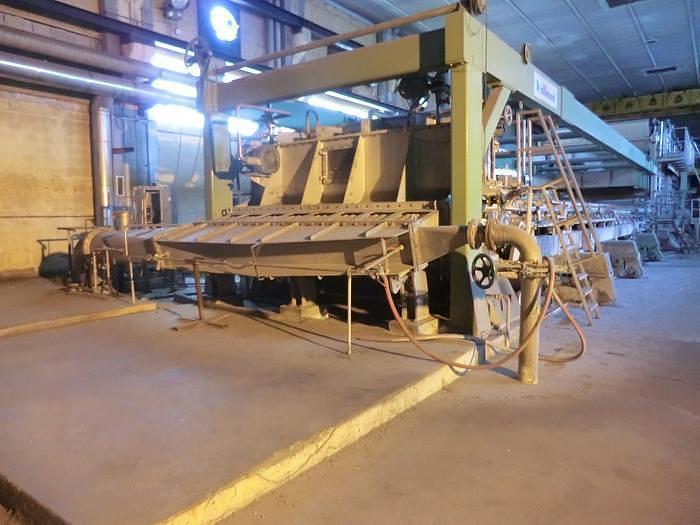

125" VOITH PULP DRYER 800 G/M2 BLEACHED HARDWOOD

Used Voith Pulp Dryer Made by VOITH-DÖRRIES, Germany and ALLIMAND, France Width of pulp web 125" (3.200 mm) Design capacity 710 ton/24 h Speed range 80-150 m/min Pulp quality Bleached hardwood PH-value in head box 3,5 Basis weight of pulp web 800 g/m2 Nip press press roll/suction roll of wire part 60/62 KN/M ( operating side/Drive side) Wire forward roll/pick up roll 50/49 KN/M Pick up roll/1.press roll 42/44 KN/M 2-press 55/46 KN/M 3-press 70/65 KN/M 4-press 84/78 KN/M Dryness consistency in head box 1,5 % after wire section 26 % After 1.press After 2.press After 3.press 46 % After 4.press 52 % After dryer section 88 % Vacuum level Foil boxes without vacuum Wet suction boxes Plan suction boxes Wire suction roll 6 m H2O pick up suction roll, high vacuum 4 m H2O pick up suction roll, low vacuum 4 m H2O
