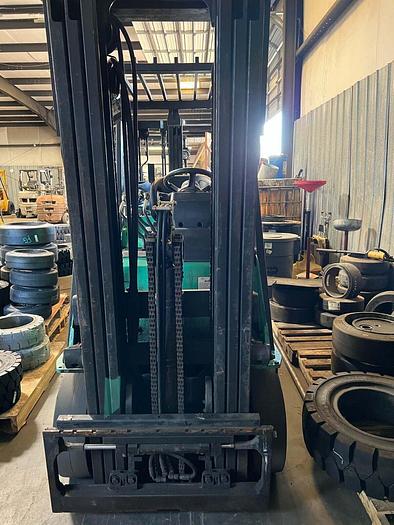

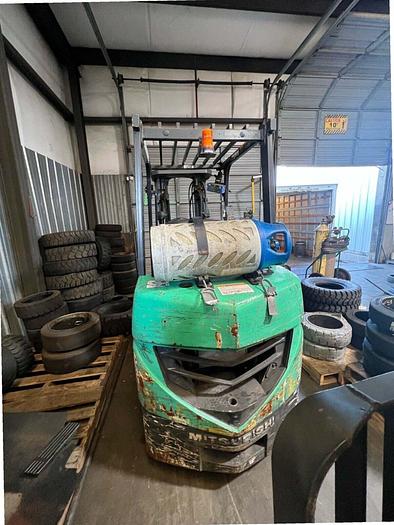

5,000 POUND MITSUBISHI MODEL FGC25N FORKLIFT MANUFACTURED 2016

Color: Green Movement Type: WHEELED Size: STANDARD Overall Width: 3.5ft in Overall Height: Mast Lowered 6.93ft in Wheelbase:4.6ft in Ground Clearance: 3.15in Height To Top Of Overhead Guard: 6.8ft in Max Fork Height: 10.96ft in Turning Radius: 6.63ft in Mast Tip Forward: 5degrees Mast Tip Rear: 9degrees Load Center: 19.69in Load Capacity: 5511.56lb Number Of Cylinders: 4 Engine Model: GK21E Power: 55hp Torque: 111lbft Power Measured @ 2700rpm Displacement:128.2cu in Torque Measured @ 2000rpm Fuel Type: LP gas Operating Weight: 8179.2lb Tire Type: Pneumatic Max Speed: 11.2mph Removed and replaced the drive tires and start to install the dash panels. Installed throttle position sensor and pulled the wheels to complete the brake job. Disassembled both sides and removed the backing plate. Installed new wheel cylinders and installed the backing plates. Turned the drums. Removed old wheel seals and cleaned up races from debris. Greased bearing and applied grease to axle. Installed new wheel seals. Reinstalled all brake components with new shoes. Reinstalled drums and adjusted brakes for proper drag. Cleaned off axle mating surfaces and applied RTV. Installed axles. Removed old master cylinder and installed new one. Bled brakes. Installed new stepper motor and mixer. Plugged up wiring to harness and soldered it in. Installed air horn and a mass airflow sensor. Replaced bad battery. Started engine. Truck runs well. Installed new transmission cooling hoses. Connect hoses and filled with coolant. Installed fan shroud. Started engine and checked for leaks. No leaks. Completed the reassembly of the lift and tested.
