14" MAY COATING TECHNOLOGIES PILOT COATING LINE - PAPER LINERS, FILMS & FOAM
14" MAY COATING TECHNOLOGIES PILOT COATING LINE - PAPER LINERS, FILMS & FOAM
orCall +1 215-664-6016
Description
904364.002

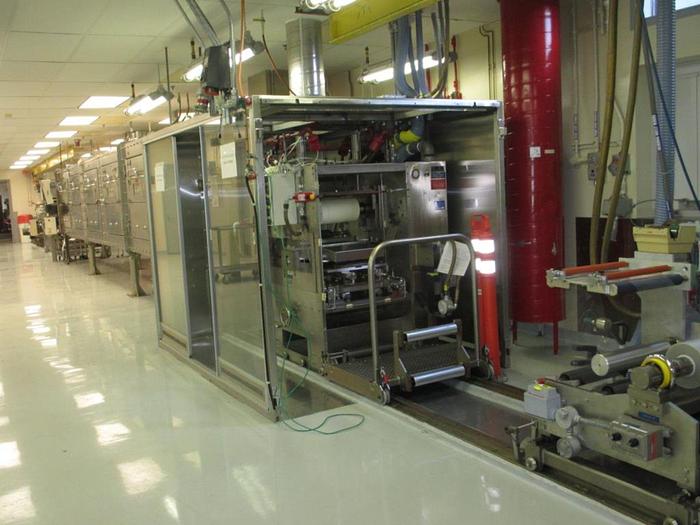

One (1) 14" May Coating Technologies Pilot Coating Line

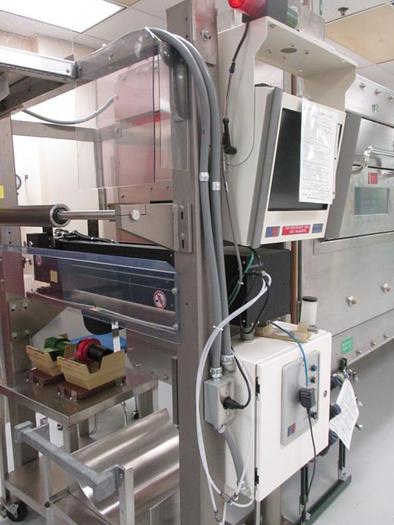

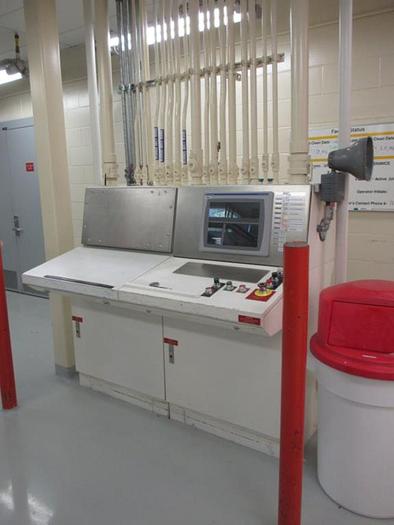

Allen Bradley controls

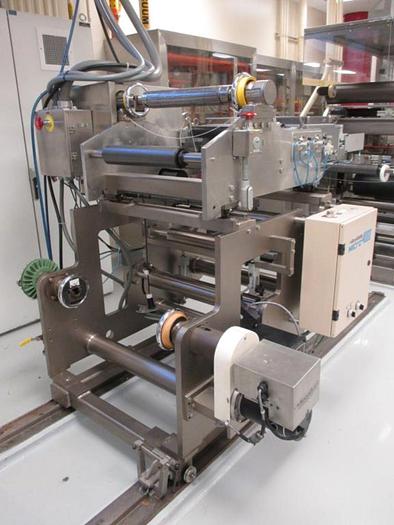

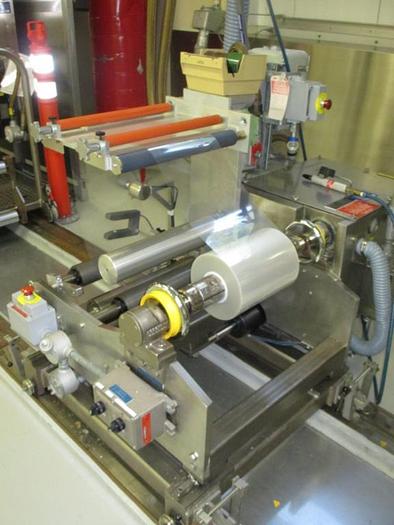

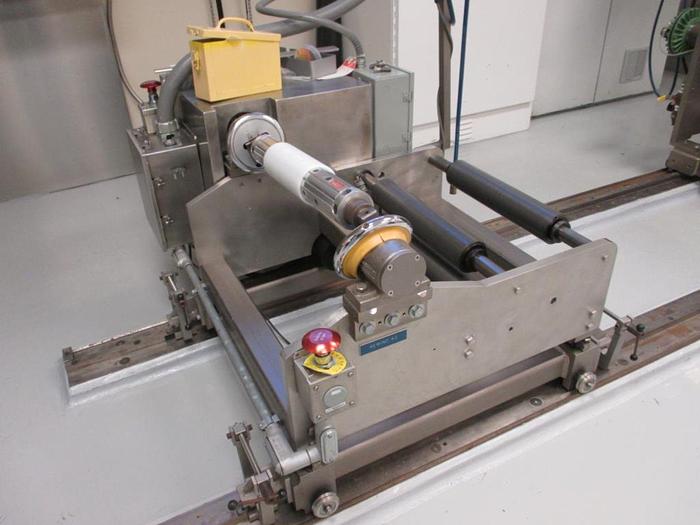

Two unwind stations, 18" diameter, 3" core
Web steering
Web tension rewinds: .25 - 4 Pli
Web tension unwinds: .25 - 7 Pli

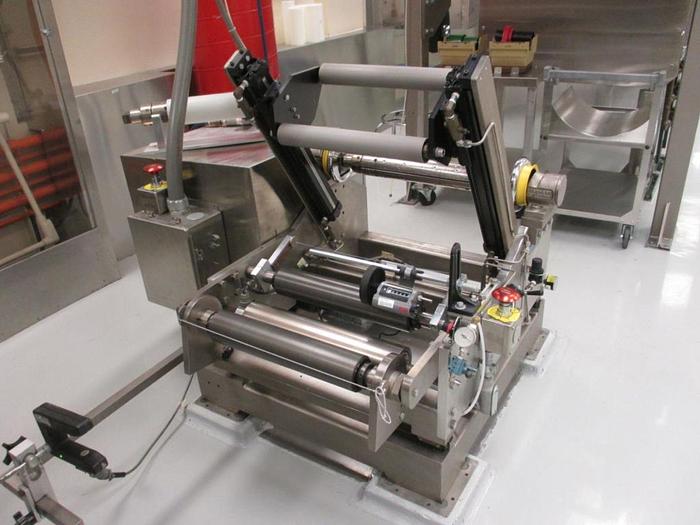

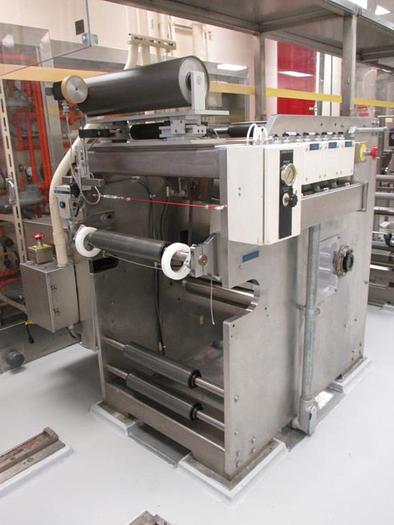

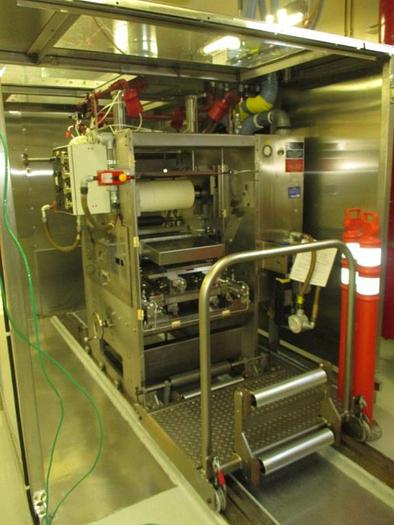

Two coating stations, 14" maximum coating width. 16" face rollers

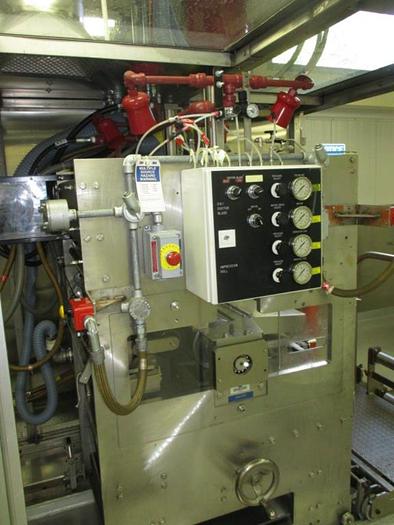

Coating station 1: Knife over roll, presure feed die, kiss gravure, gravure, hot-melt die coating
Coating station 2: Gravure only
One laminating station/vacuum roll
16" diameter vacuum pull roll
8" diameter steel laminating roll, hardchrome plated, up to 40 Pli nip pressure
Speed: 2 to 150 fpm

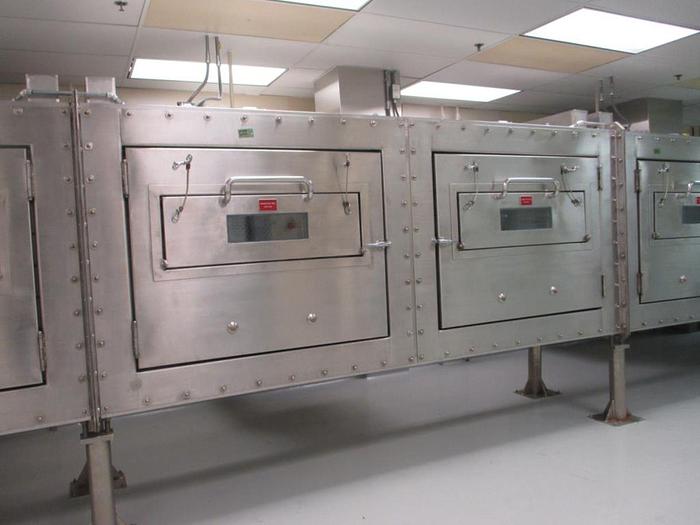

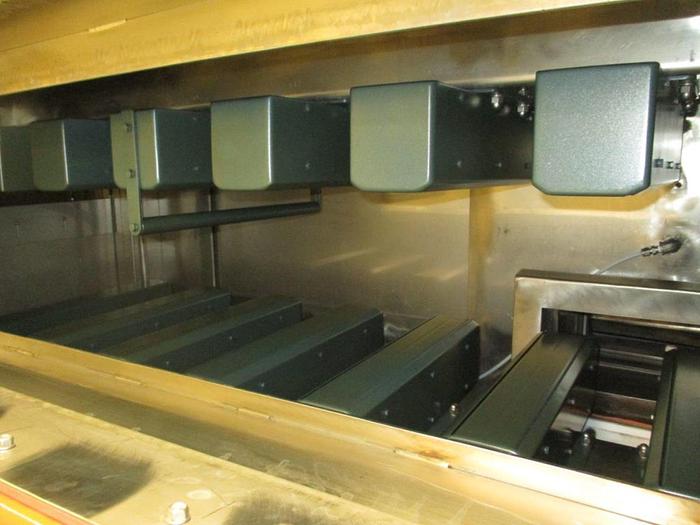

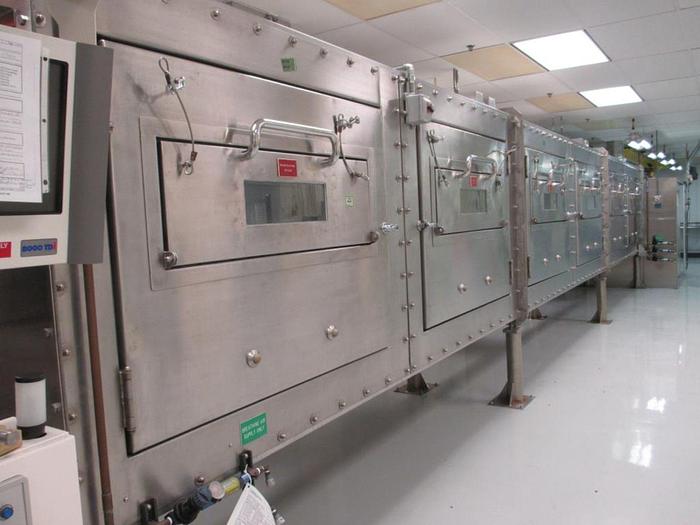

One oven, 3-zone 30 ft long; 400 degrees airbar exit temperature
Burner firing rating: 1,500,000 btu / hr
Two Rewinds; 18" diameter, 3" core
Web materials: Paper liner 3-6 mils, Cast and extended films 1 -10 mils, Foam 20 mils

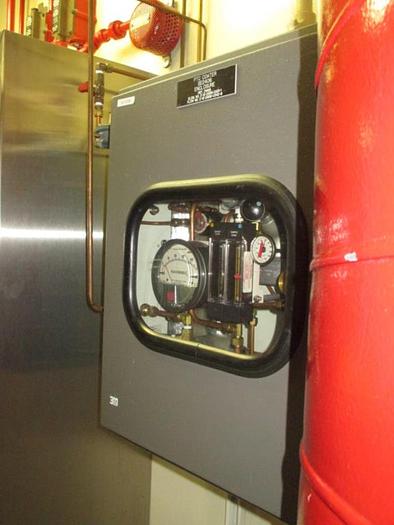

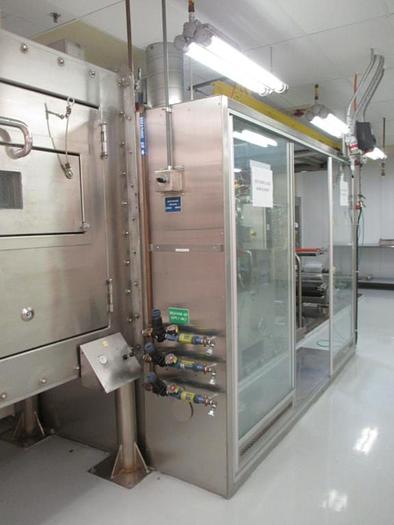

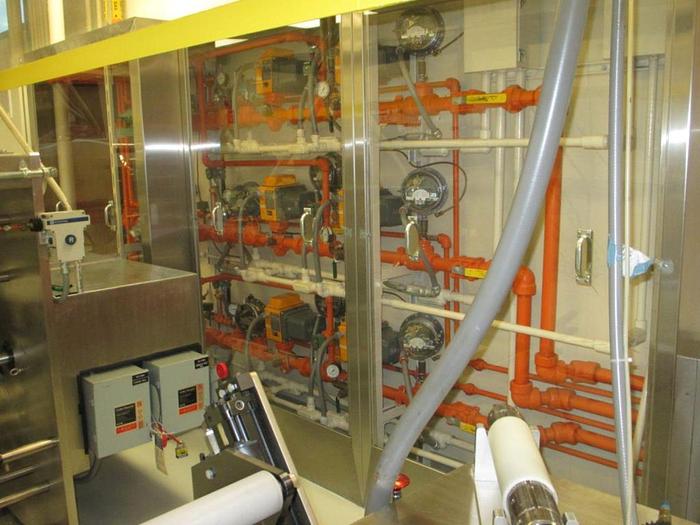

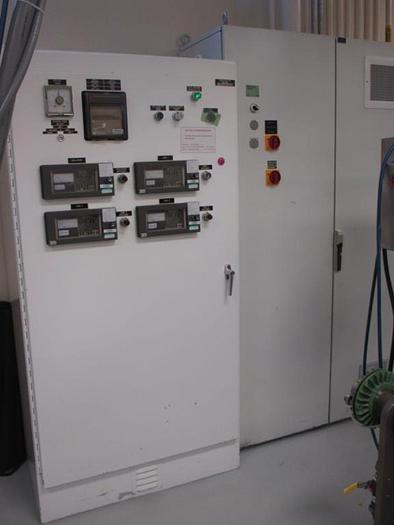

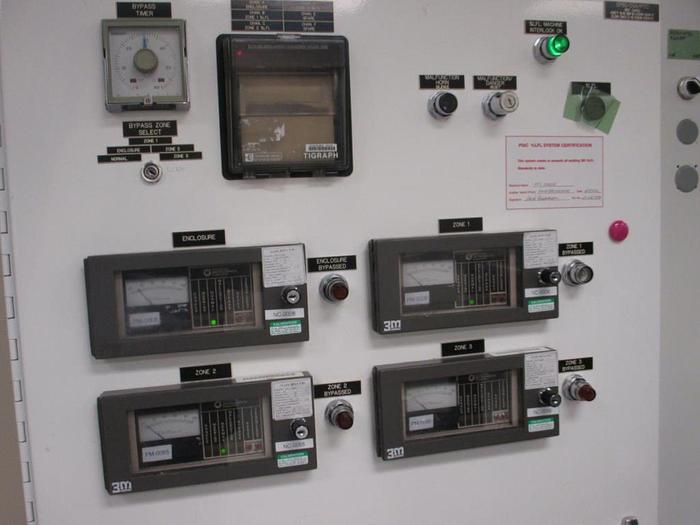

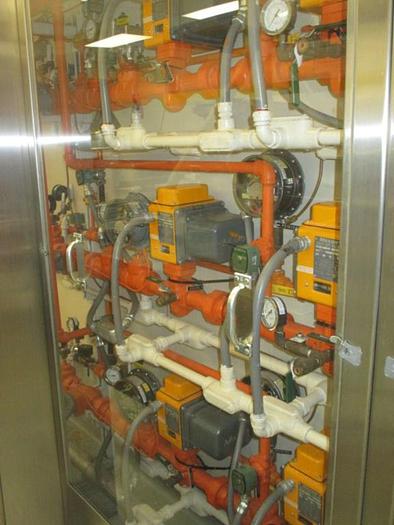

Gas Lines with Valves and Gauges, Electrical Panels and control panels

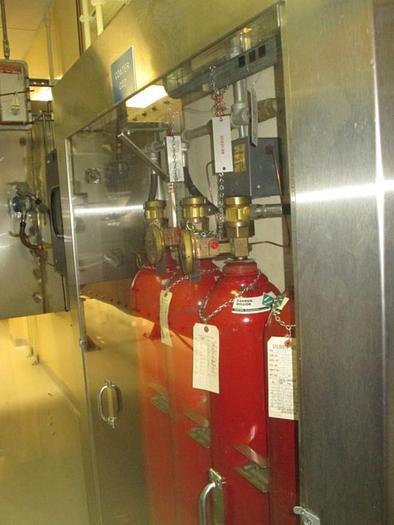

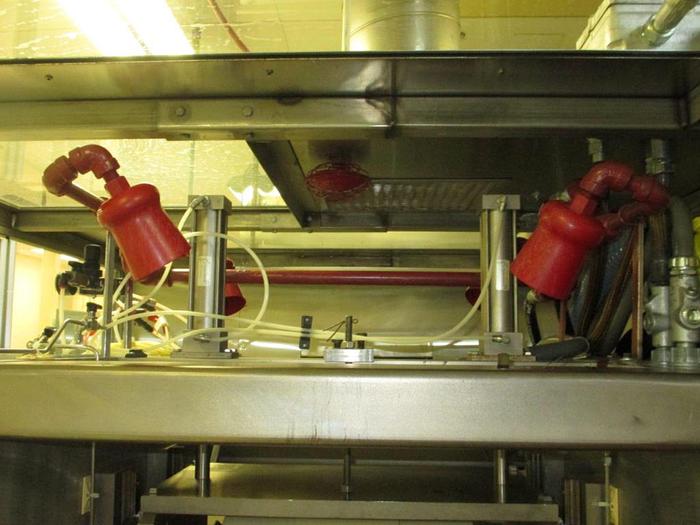

CO2 Fire Suppression System
Specifications
Manufacturer | MAY COATING TECHNOLOGIES |
Model | PILOT COATING LINE |
Condition | Used |
Stock Number | 904364.002PF |
Web tension rewinds | .25 - 4 Pli |
Web tension unwinds | .25 - 7 Pli |
Coating station 1 | Knife over roll, presure feed die, kiss gravure, gravure, hot-melt die coating |
Coating station 2 | Gravure only |
Speed | 2 to 150 fpm |
Burner firing rating | 1,500,000 btu / hr |
Web materials | Paper liner 3-6 mils, Cast and extended films 1 -10 mils, Foam 20 mils |
