DRAGON PRODUCTS FRAC TRUCK

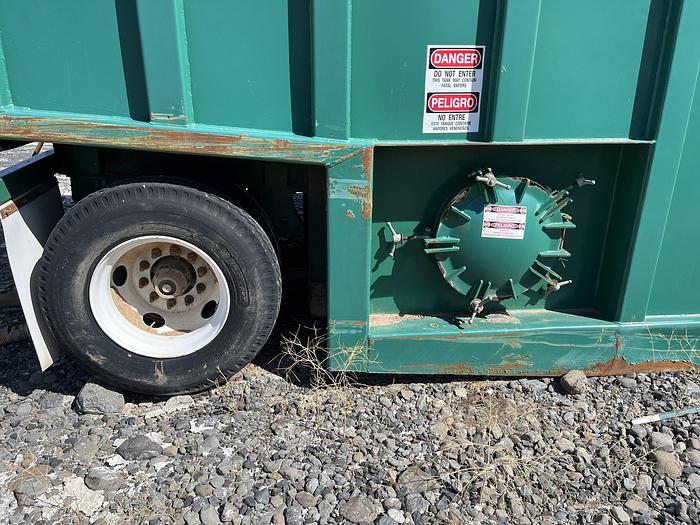

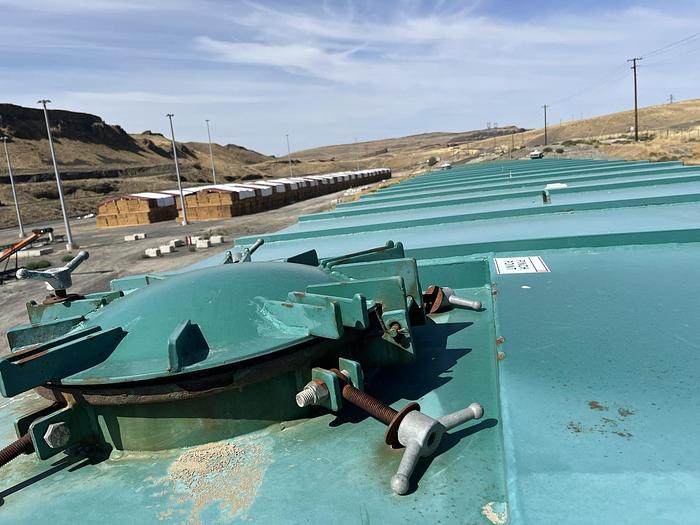

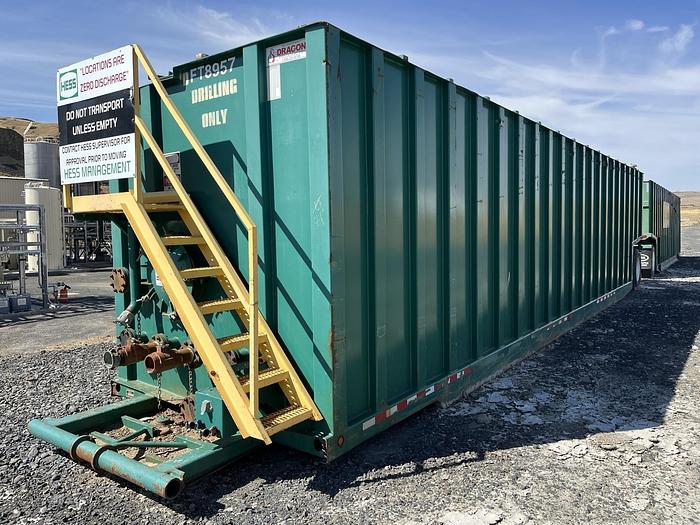

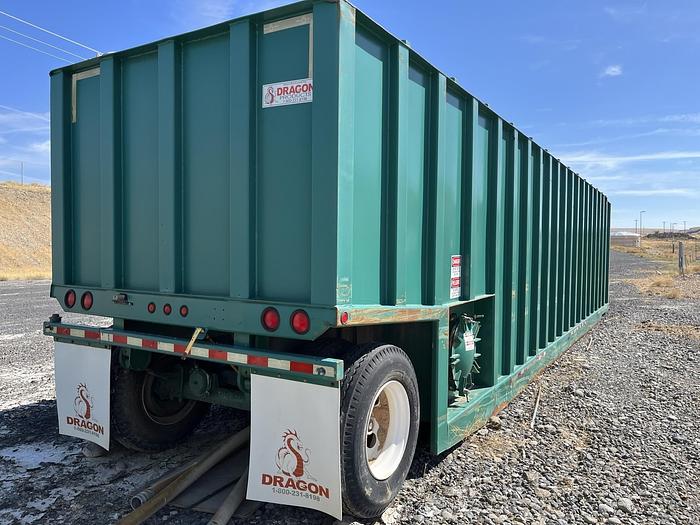

500 BARREL SMOOTH WALL LIQUID STORAGE TANK SPECIFICATIONS FLOOR: 1/4 PL, 4" V-bottom with integral formed side channels FLOOR SUPPORT: 10" channel longitudinal runners with 8" channel and formed 1/4 PL channel crossmembers WALLS: 1/4 PL solid welded, smooth inside, with formed channel supports outside ROOF: 2 - step design, 1/4 PL solid welded with channel supports outside FRONT/REAR: 1/4 PL solid welded, smooth inside, with formed channel supports outside DRAIN/FILL: 4" drain at floor each end w/valve, 3" fill elbow at roof, 4" flange w/valve on front - flanged on inside, 8" flange on front w/blind cover plate - flanged on inside, 4" flange w/blind cover plate on roof, 2" coupling w/plug on roof, 4" coupling w/plug on roof, PV vent on roof MANWAY: 21" manway on front, side, rear and roof PICK UP: Standard 5th wheel king pin WELDS: All welds continuous except substructure crossmembers AXLE: 22,500 lb axle with air brakes, 11.00X22.5 tires on steel disc wheels ACCESS: Front ladder and stairway with grating walkway to roof manway, stationary and fold down handrail system HYDRO TESTING: Full capacity test @ 3 psi DIMENSIONS: Overall; 42' long, 8'-6" wide,
