MSK PALLET WRAPPING LINE

No longer available
MSK PALLET WRAPPING LINE
Description
109665

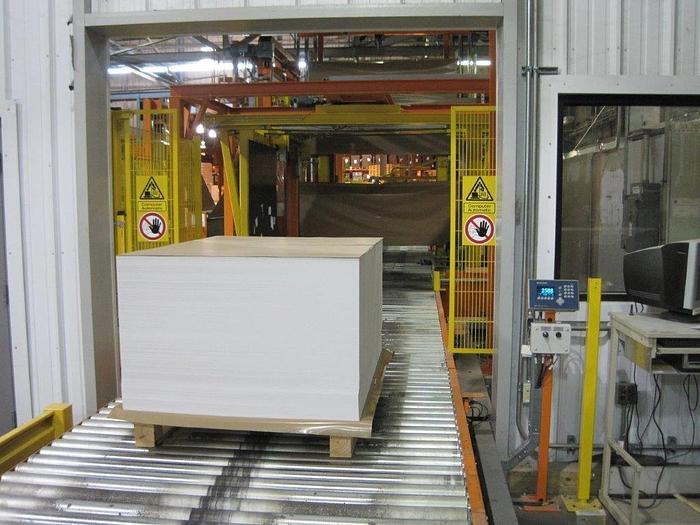

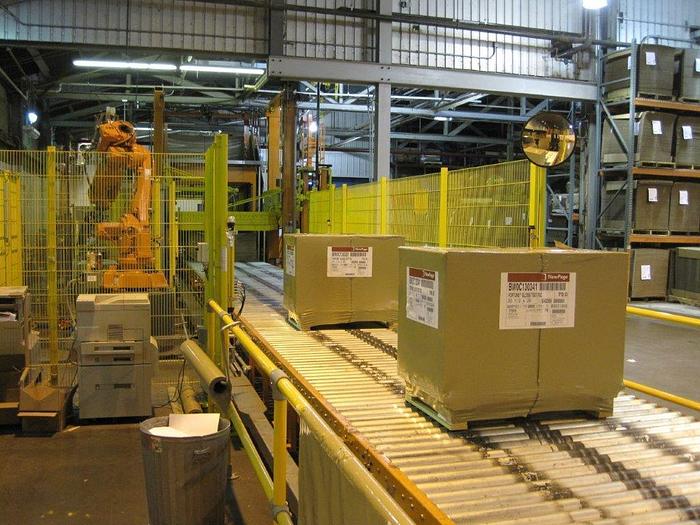

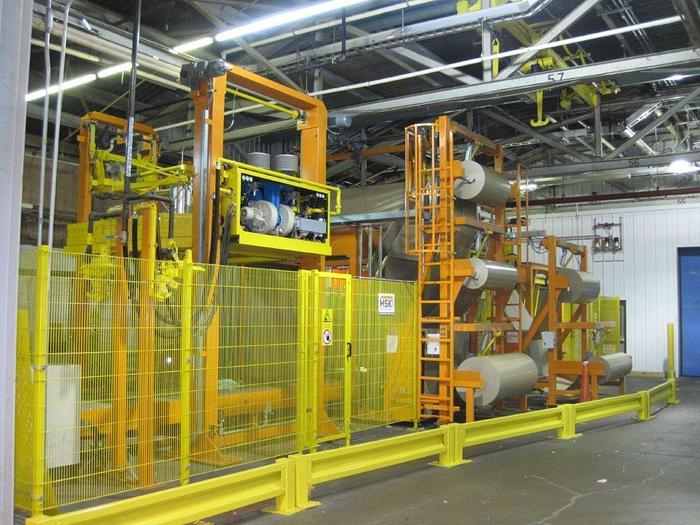

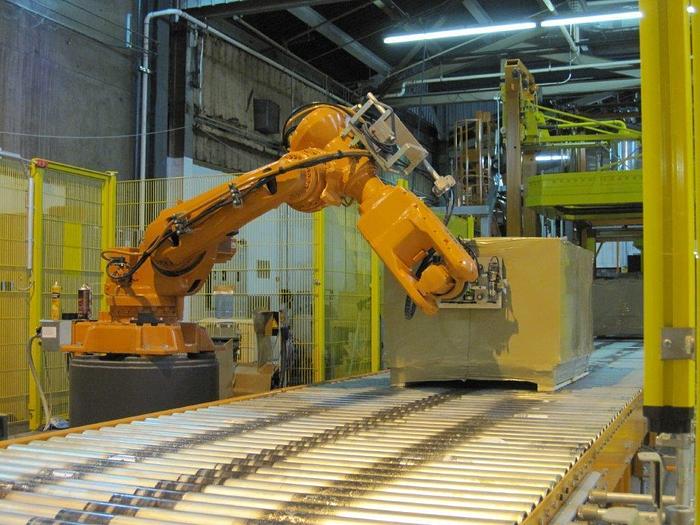

One used MSK Pallet Wrapping Line
***All PLC Programs, documentation and drawings included
***Still installed and running

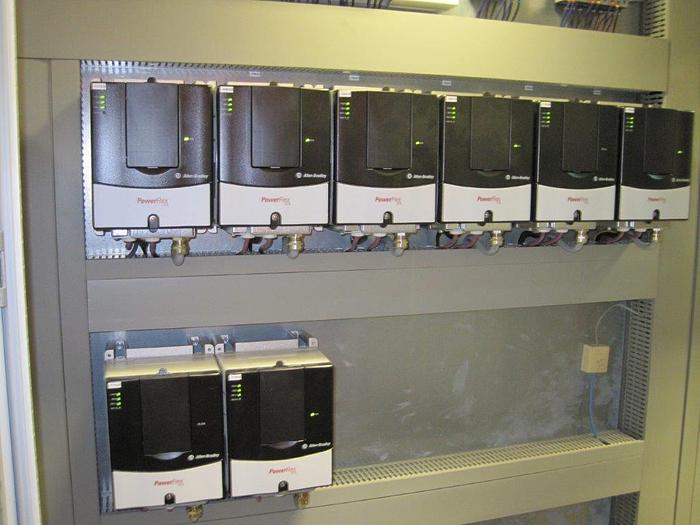

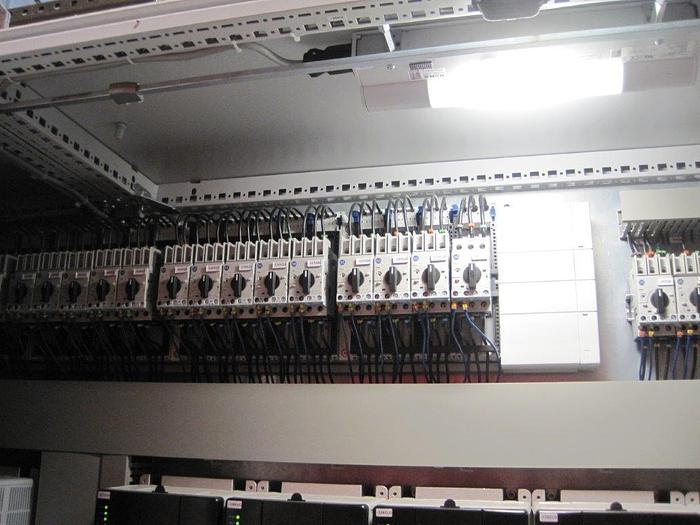

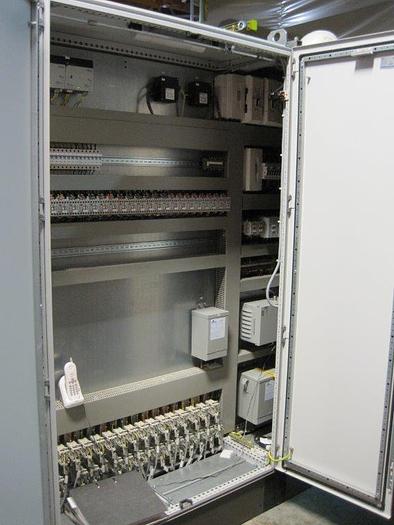

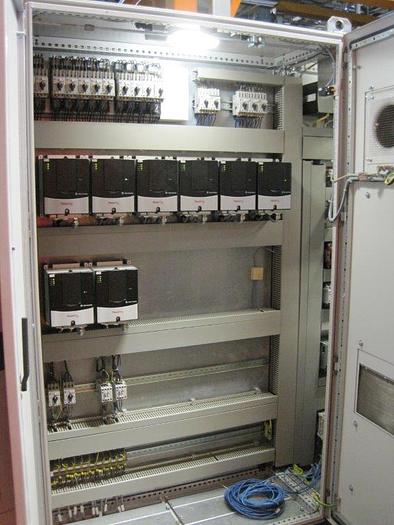

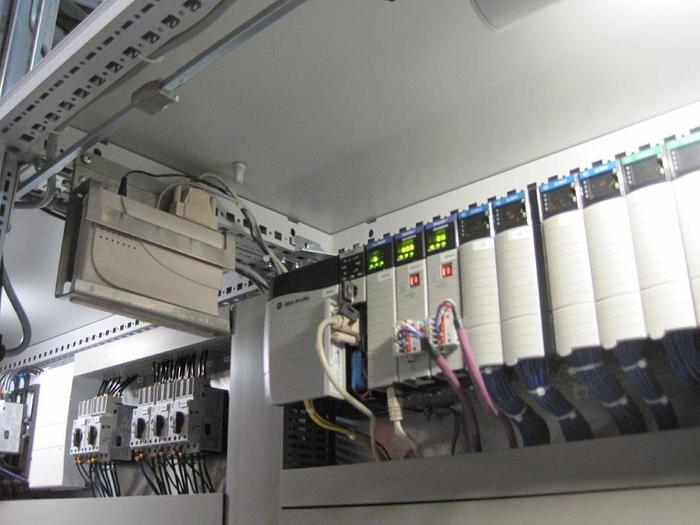

***Allen Bradley Drives and PLC

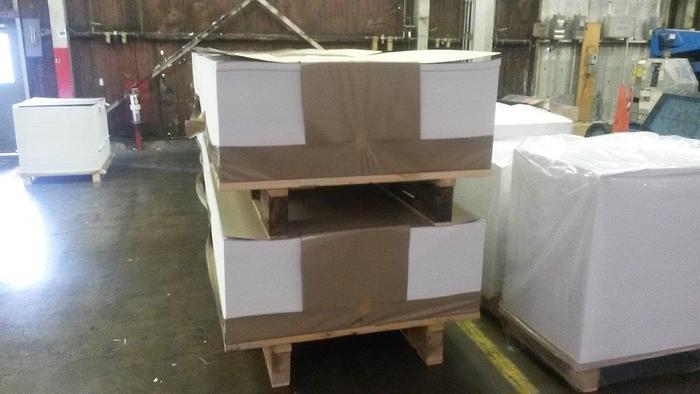

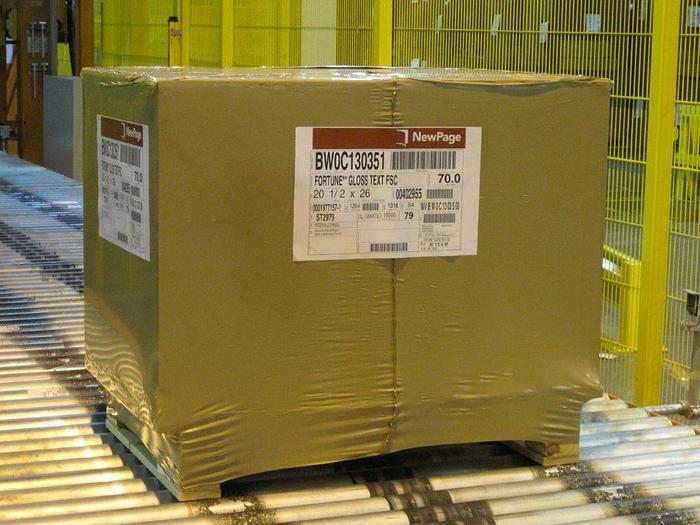

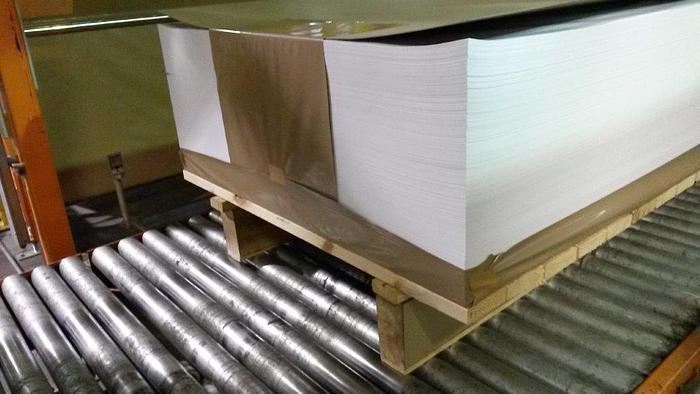

Product to be packaged Paper skids
Pallet material Wood
Load dimensions (length x width x height) min. 16” x 15” x 13”, max. 64” x 64” x 65”
Pallet running direction longitudinal and transversal
Pallet weight min. 500 kg
max. 1400 kg
Height of load (incl. pallet) min. 13”, max. 65”
Packaging capacity 60 pallets per hour with a film thickness of 100 μm
and a max. pallet height of 65”
Noise level (DIN 45641 part 1) 85 dB (A)
Temperatures 10--30° C
Electrical connection values
Input voltage from electrical net 3 x 480 V
Frequency 60 Hz
Control voltage of the inputs/outlets 24 V (DC)
Break voltage of the drives 230 V (AC)
Control voltage gas regulation system 230 V (AC)
Connection value 75 kVA

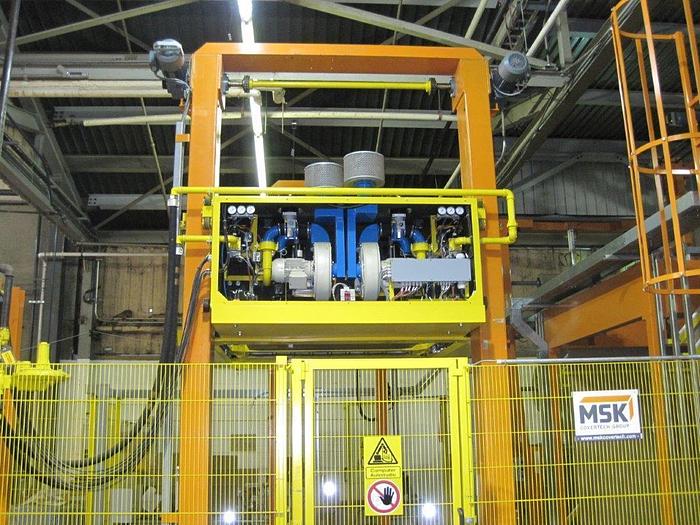

Gas connection
Type of gas LPG
Gas pressure 80 mbar
Permissible gas pressure 50--80 mbar
(Existing gas pressure > Permissible gas pressure ⇒ Gas pressure regulator with optional safety features required, see chap. 8.2)
Rated heat load of the MSK SYNCHROTECH: 547,2 kW
Pneumatic connection values
Existing air pressure 5--6 bar
Air connection min. 550 liter/pallet

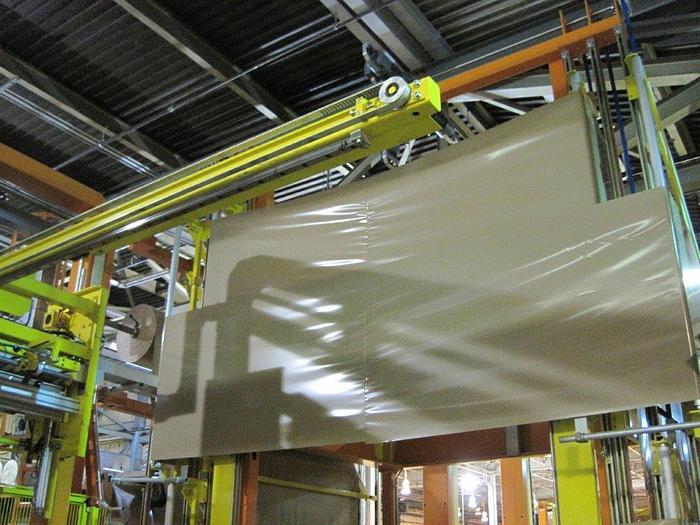

Film size:
MSK Flowtech
Film thickness 100 μm
Film format: A 65“, B 50“, C 42“, max. 71”

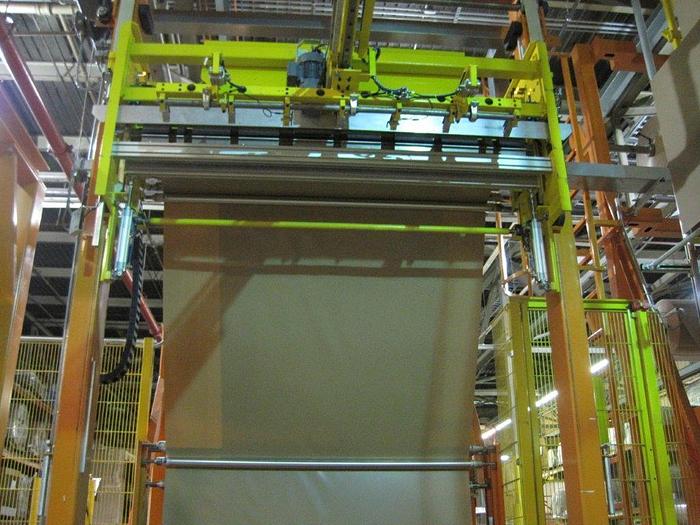

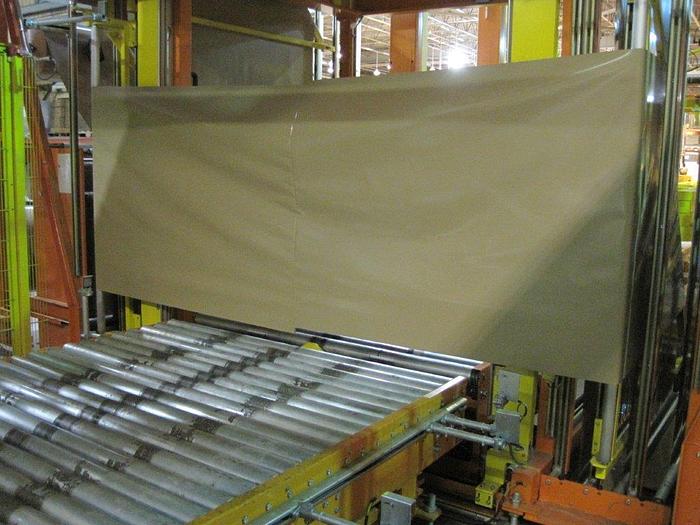

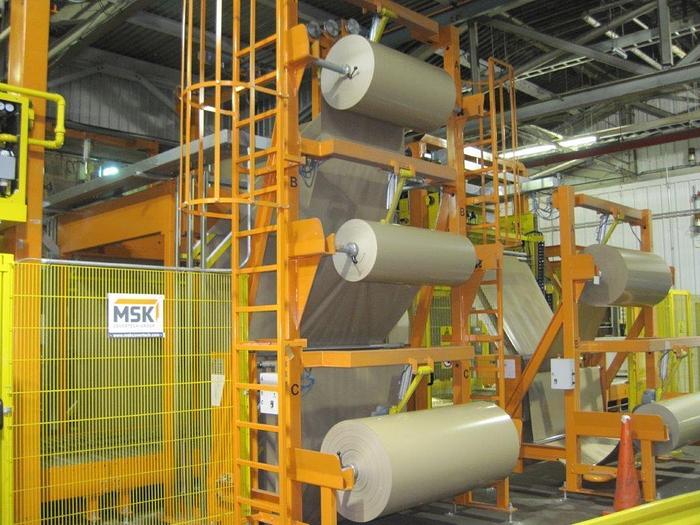

MSK Top Sheet Dispenser:
Film thickness 100 μm
Film format MSK Top Sheet Dispenser A 60“, B 45”, max. 71”
Roller diameter max. 40”
Cone inner diameter: 3" (76 mm)
Roller weight max. 1000 kg
Specifications
Manufacturer | MSK |
Model | PALLET WRAPPING LINE |
Year | 2008 |
Condition | Used |
Serial Number | 399600 |
Stock Number | 109666 |
Rated heat load of the msk synchrotech | 547,2 kW |
Film format | A 65“, B 50“, C 42“, max. 71” |
Cone inner diameter | 3" (76 mm) |
