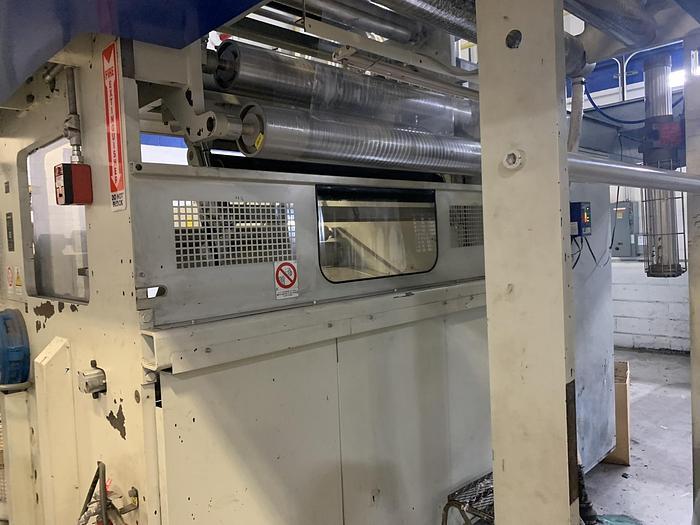

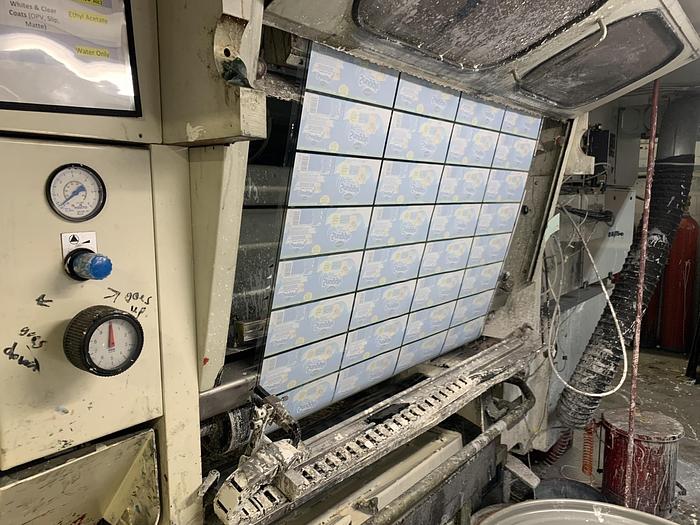

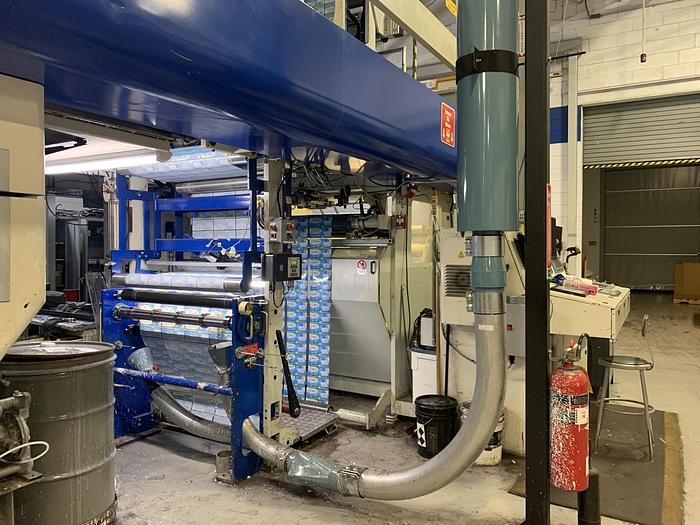

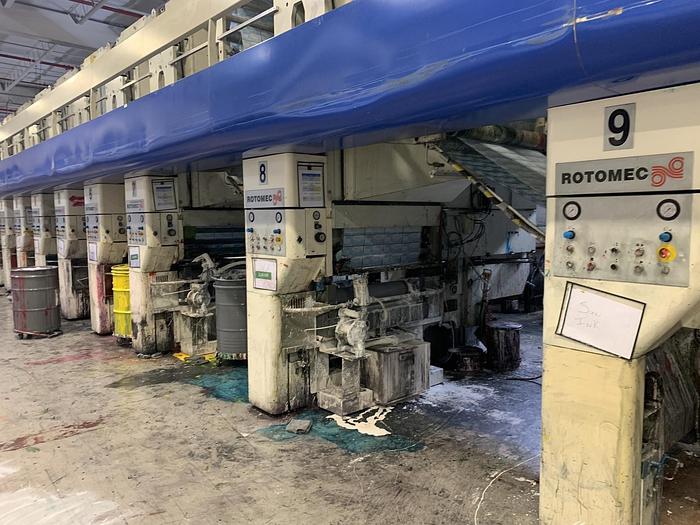

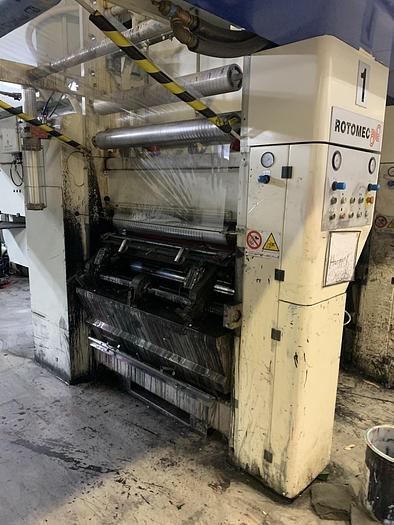

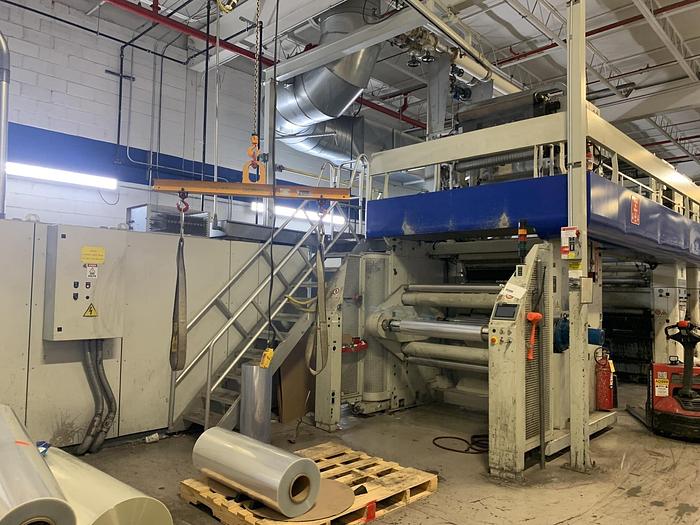

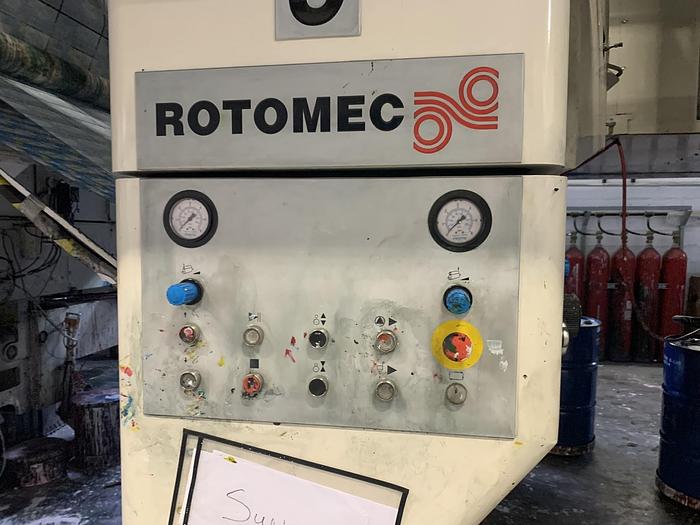

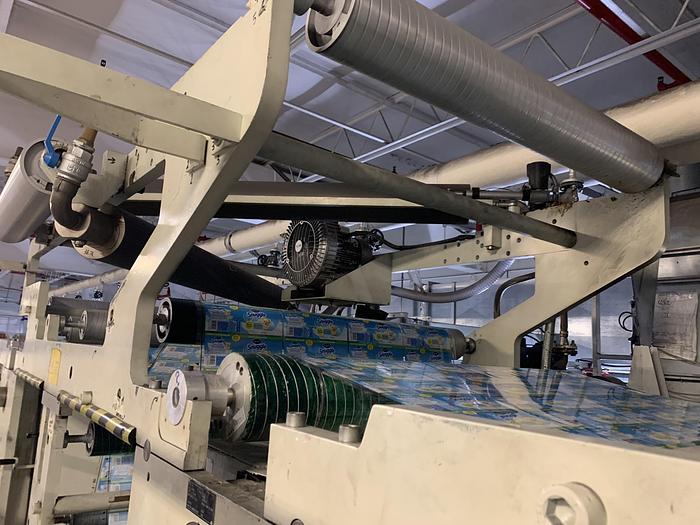

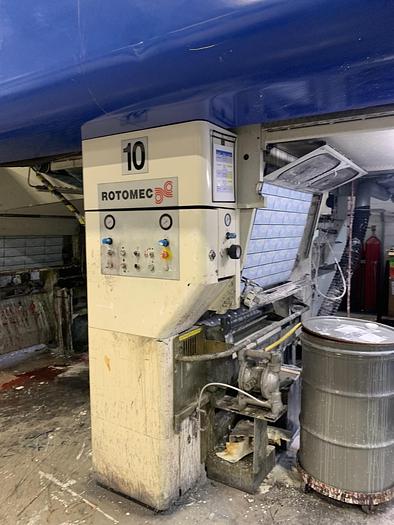

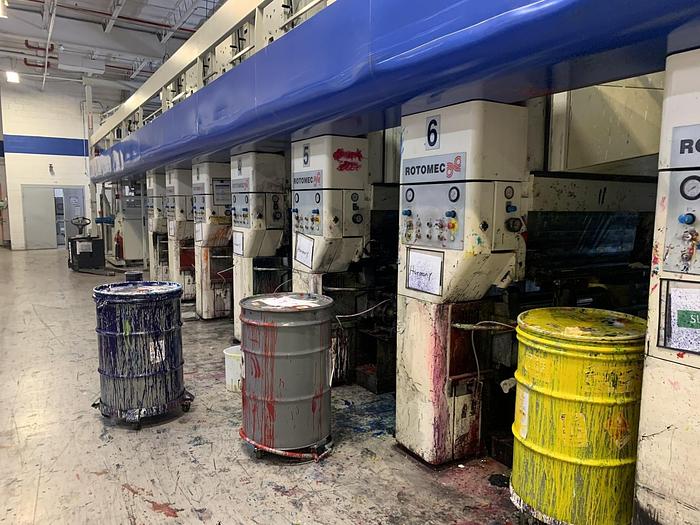

40" ROTOMEC MODEL RS 4003 10 COLOR ROTOGRAVURE PRESS (SOLVENT INK) MFG. 2006

40" ROTOMEC MODEL RS 4003 10 COLOR ROTOGRAVURE PRESS (SOLVENT INK) MFG. 2006
Contact us for price
orCall +1 215-664-6016
Description
One (1) Used 40" (1050mm) Rotomec Model 4003
10-Color
Maximum web width: 40" (1050mm)
Minimum web width: 20" (500mm)

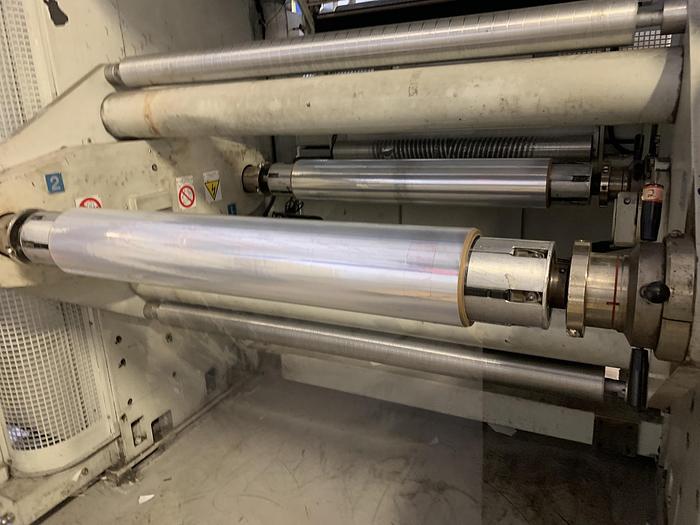

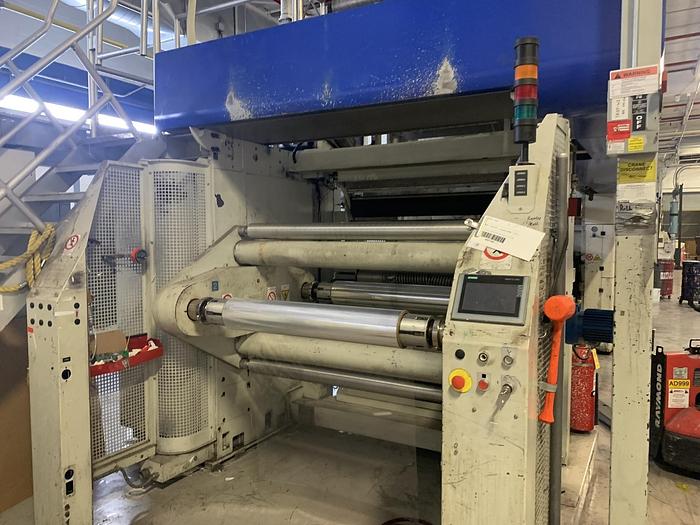

Unwind diameter: 40", 3" and 6" shafts
Unwind tension range: 3.5 - 35 daN

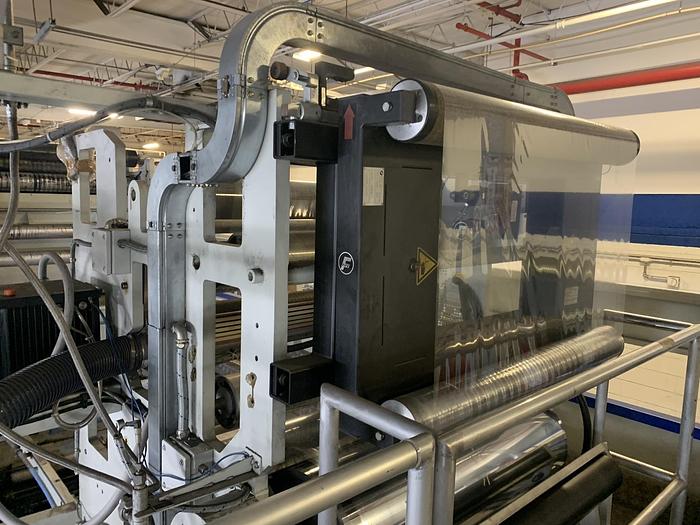

Rewind diameter: 40"
Rewind tension range: 3.5 - 35 daN
Line speed: 1150 ft/min (350 meter/min) considering print cylinder circumference of 450mm
Heating minimum temperature: 230 degrees C
Pressure: 3 - 3.5 bar
Pressure drop through heat exchanger: 25 degrees C
Dryers at stations 1-7: Web path 2200mm, 67nm3/min air flow rate through slot nozzles
Dryers at station 8 -9: Web path 4400mm, 134nm3/min air flow rate through slot nozzles
Dryers at stations 10: Web path 5000mm, 156nm3/min air flow rate through slot nozzles

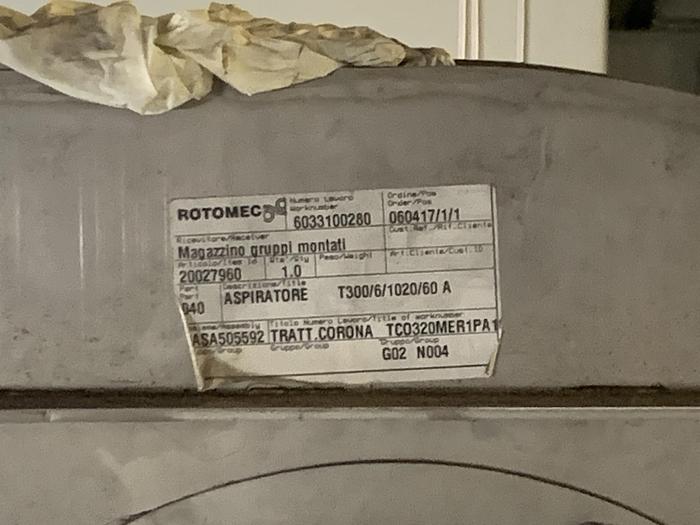

Corona treater

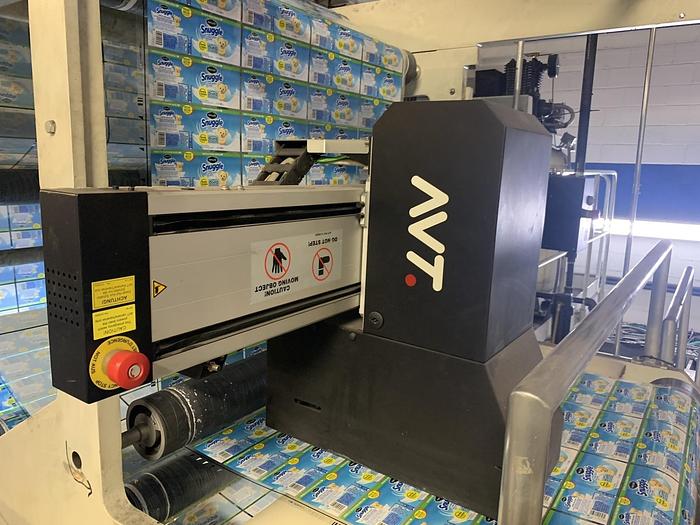

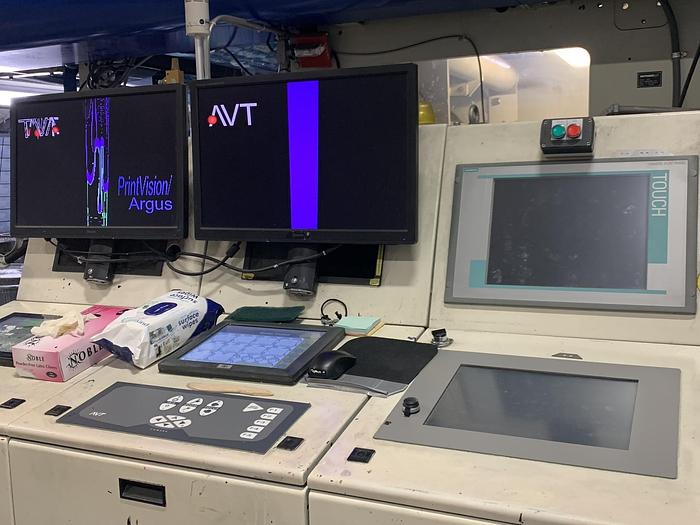

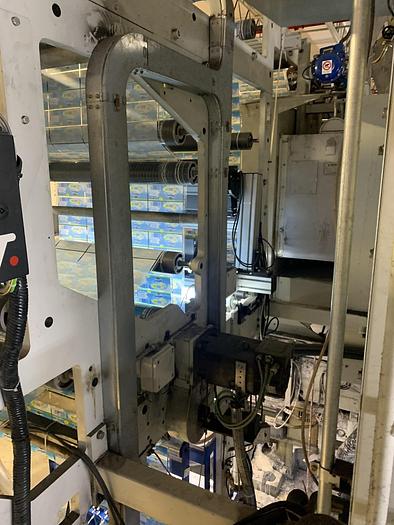

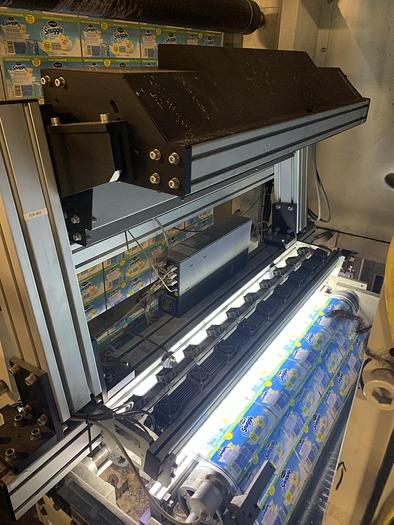

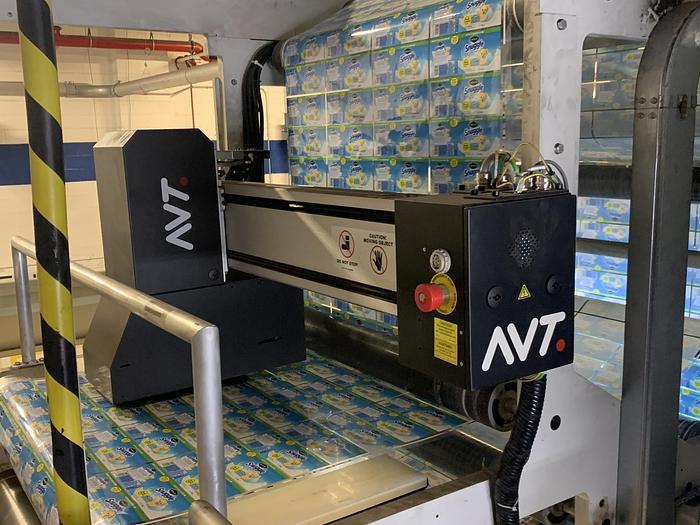

AVT - Print Vision Argus E – 100% Inspection with automatic defect detection.

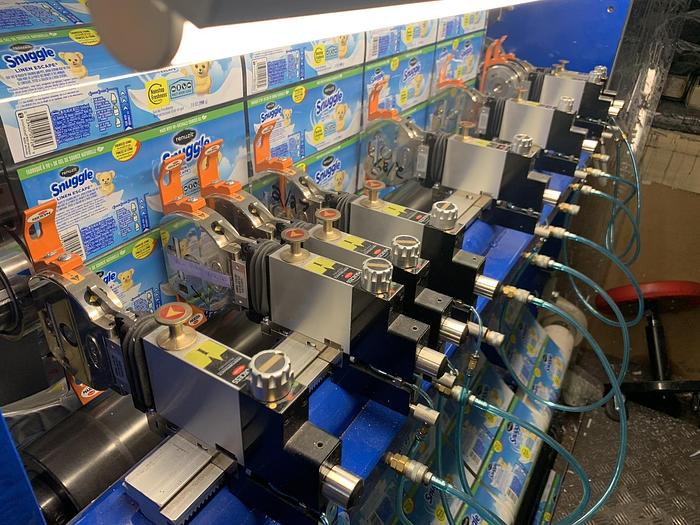

Bobst automatic color register
Rotomec viscosity controllers
Can print:
Paper, cardboard, board, annealed aluminum foil, cellophane, polyester, mylar, cast PP, BOPP, non orientated Nylon, Bi-axially orientated Nylon, soft PVC, rigid PVC, LDPE, LLDEP & EVA

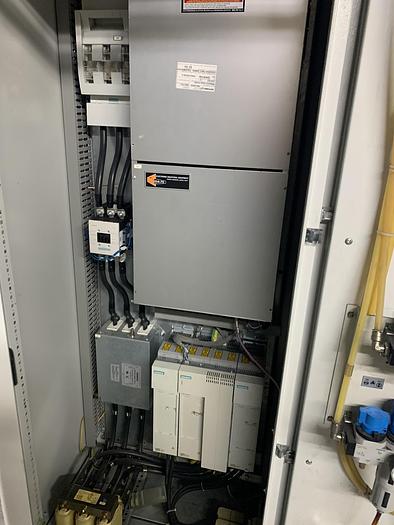

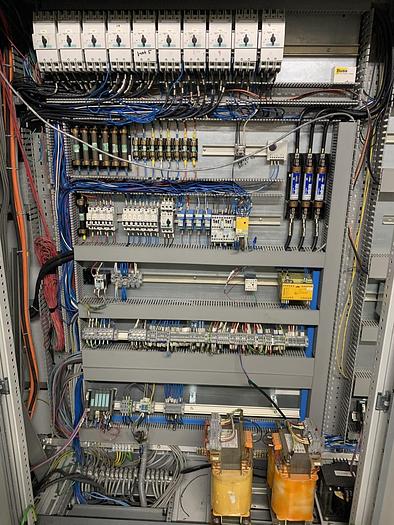

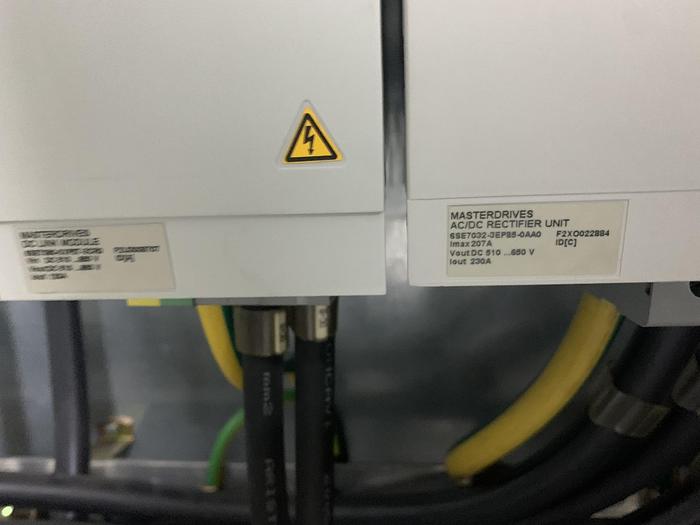

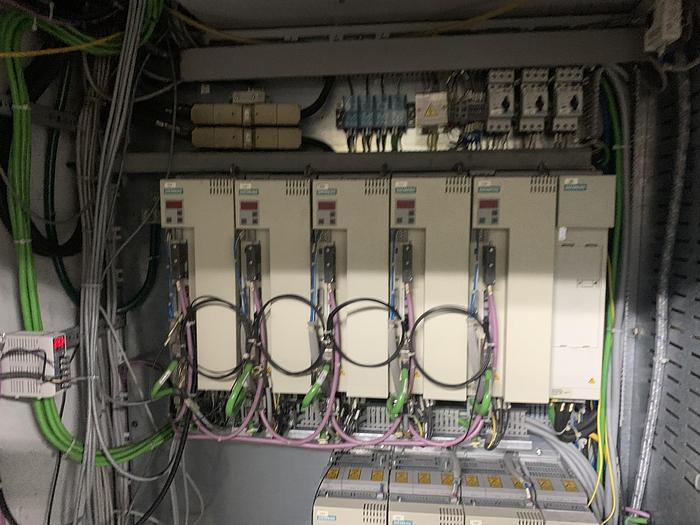

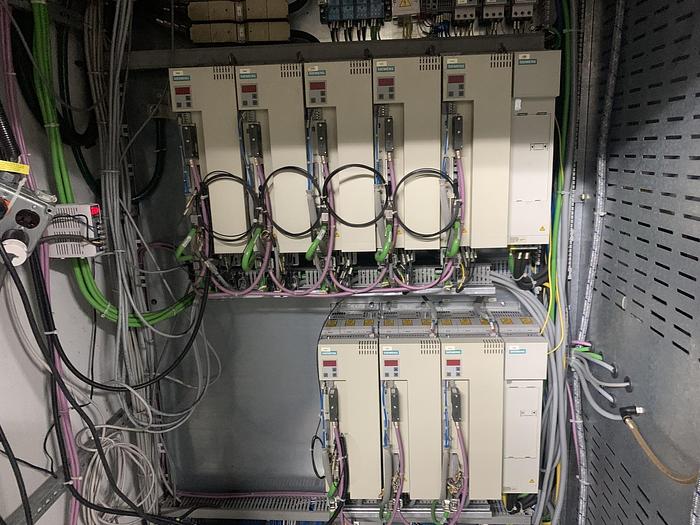

Electrical:
480 V, 3 Phase PE w/o Neutral, 60Hz
Specifications

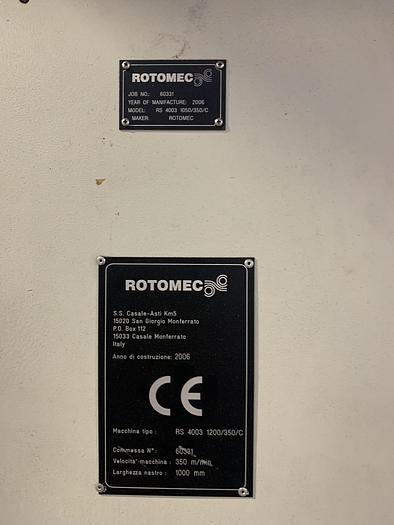

Manufacturer | ROTOMEC |

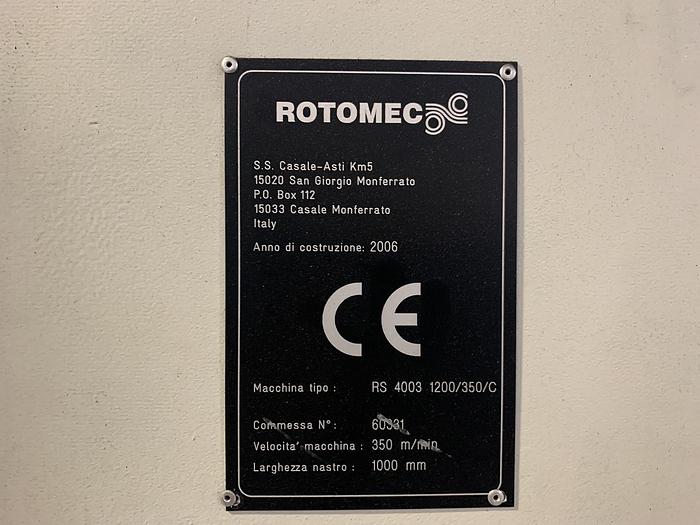

Model | RS 4003 |
Year | 2006 |
Condition | Used |
Serial Number | 60331 |
Stock Number | 904295 |
Maximum web width | 40" (1050mm) |
Minimum web width | 20" (500mm) |
Unwind diameter | 40", 3" and 6" shafts |
Unwind tension range | 3.5 - 35 daN |
Rewind diameter | 40" |
Rewind tension range | 3.5 - 35 daN |
Line speed | 1150 ft/min (350 meter/min) considering print cylinder circumference of 450mm |
Heating minimum temperature | 230 degrees C |
Pressure | 3 - 3.5 bar |
Pressure drop through heat exchanger | 25 degrees C |
Dryers at stations 1-7 | Web path 2200mm, 67nm3/min air flow rate through slot nozzles |
Dryers at station 8 -9 | Web path 4400mm, 134nm3/min air flow rate through slot nozzles |
Dryers at stations 10 | Web path 5000mm, 156nm3/min air flow rate through slot nozzles |
