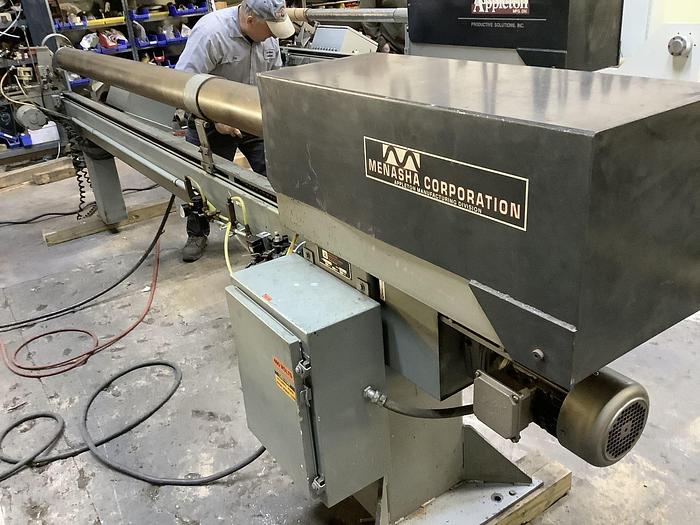

120" APPLETON CORE CUTTER MODEL A300 WITH 6" MANDREL

No longer available

120" APPLETON CORE CUTTER MODEL A300 WITH 6" MANDREL

Description

One (1) Used 120” Appleton Model A300 automatic core recutter. Operator loads core and sets the target to the desired core length. The operator then presses a button on the panel to activate the cutting cycle. The A300 advances and cuts the core until the parent core is consumed. The air powered knife and electric core advance drive makes system easy to install and maintain. Knife on A300 is fixed as opposed to a power saw. Knife generates no dust or noise resulting in an enhanced burnished cut. Serial # 0505588. 6” mandrel. 460 volt, 3 phase, 60 cycle. Target adjusts to maximum 60” length cuts. .25 HP motor drives pusher core advance. 2 HP motor drives, turns mandrel. Air-loaded knife cut system. Wall thickness .25” - .625” thick. Minimum cut determined by core integrity. Typically equal to wall thickness. Has controls for cutting time and feed speed. Typical cut length tolerance +/- .01”.

Specifications

ManufacturerAPPLETON
ModelA300
ConditionUsed
Serial Number0505588
Stock Number904171.012
Width120.0 in
