LAWTON SINGLE ROLL WRAPPER MODEL OBRX SOLD

No longer available

LAWTON SINGLE ROLL WRAPPER MODEL OBRX SOLD

Description

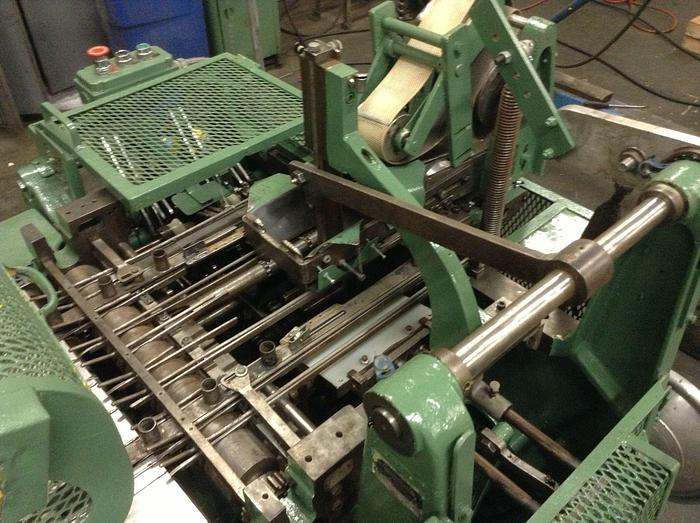

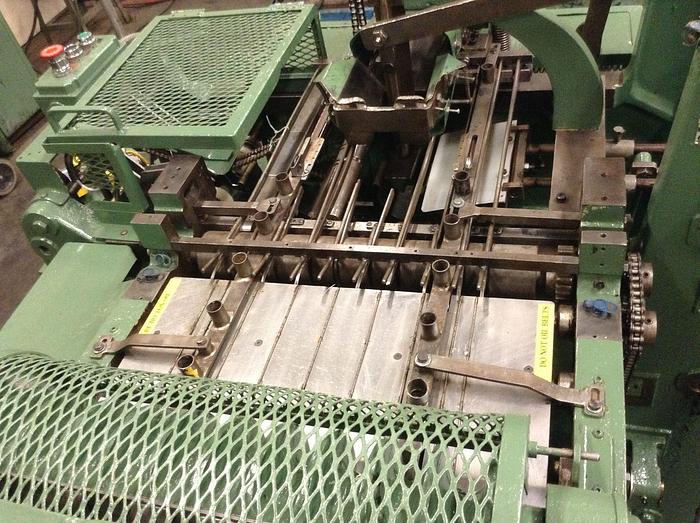

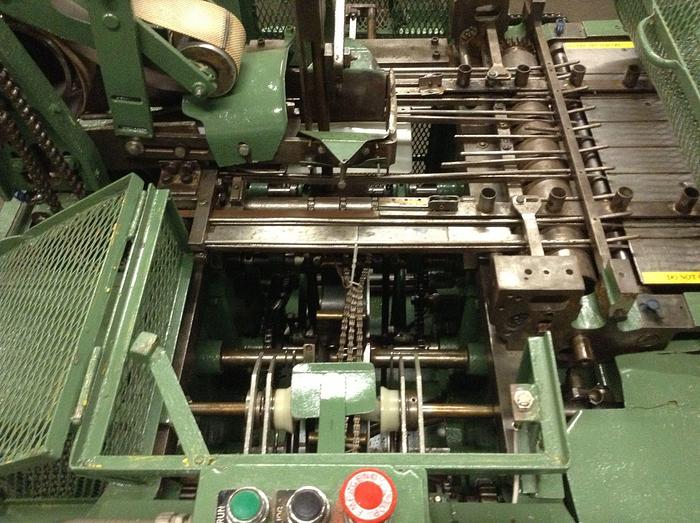

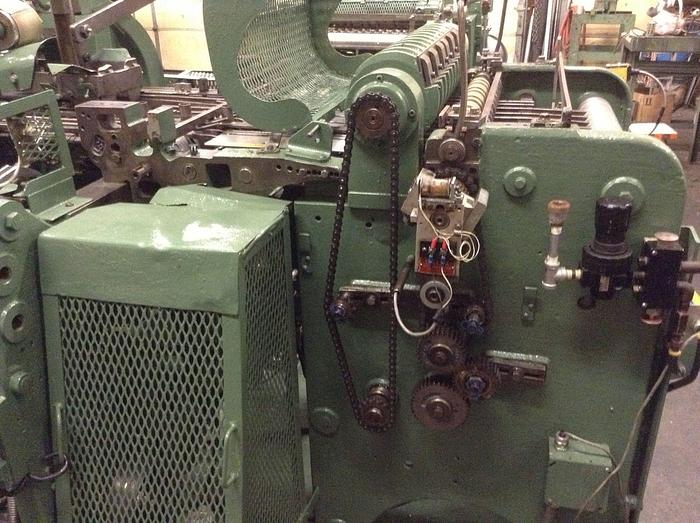

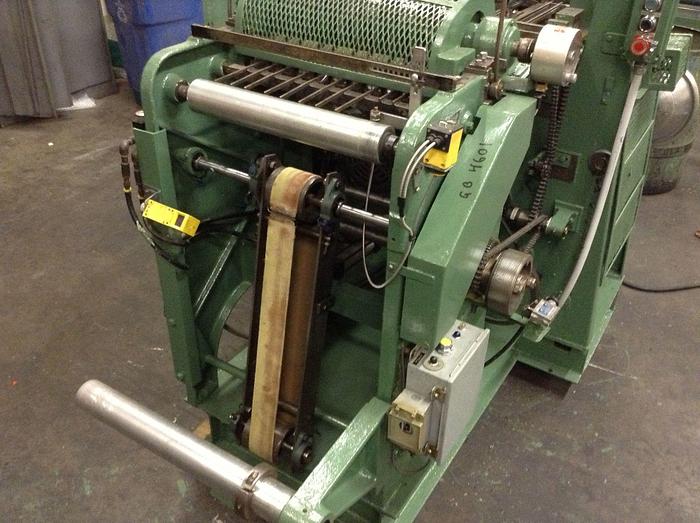

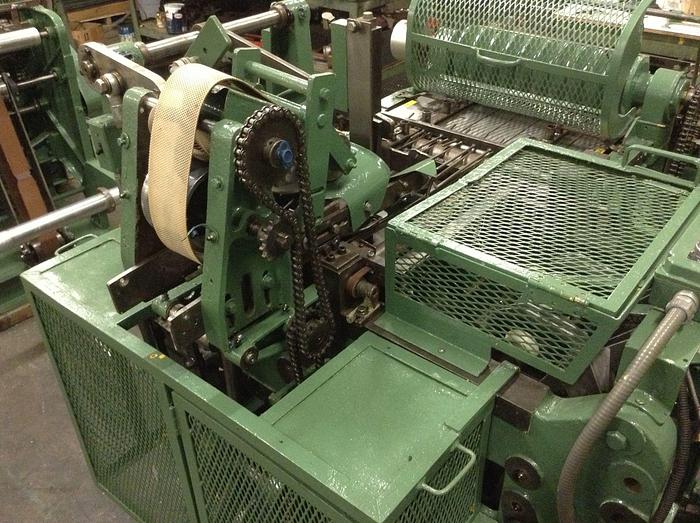

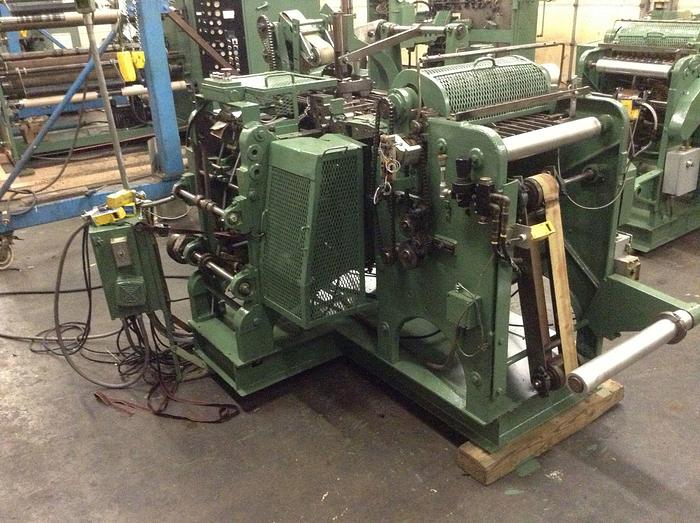

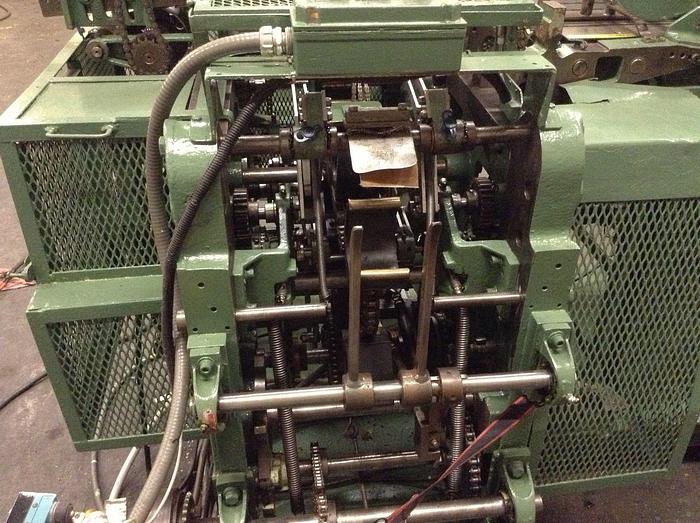

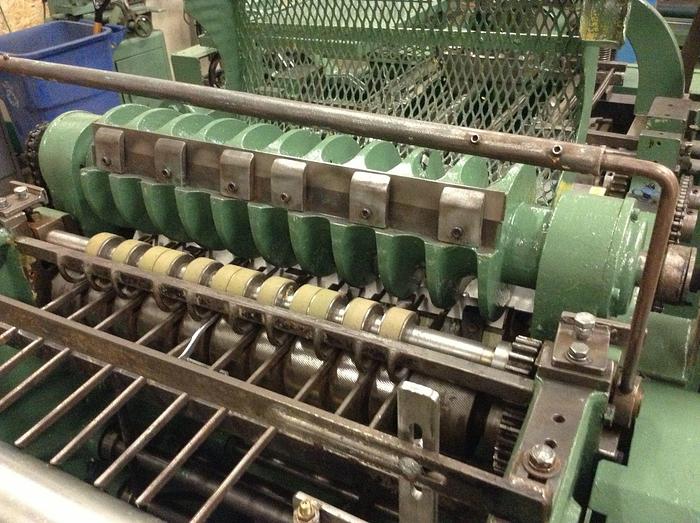

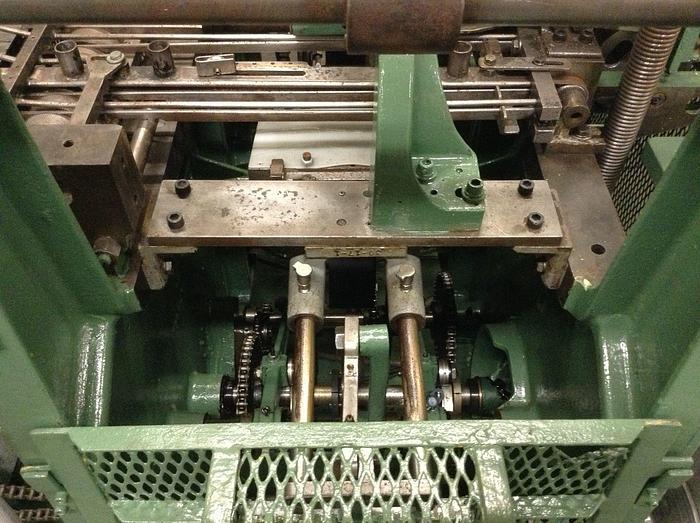

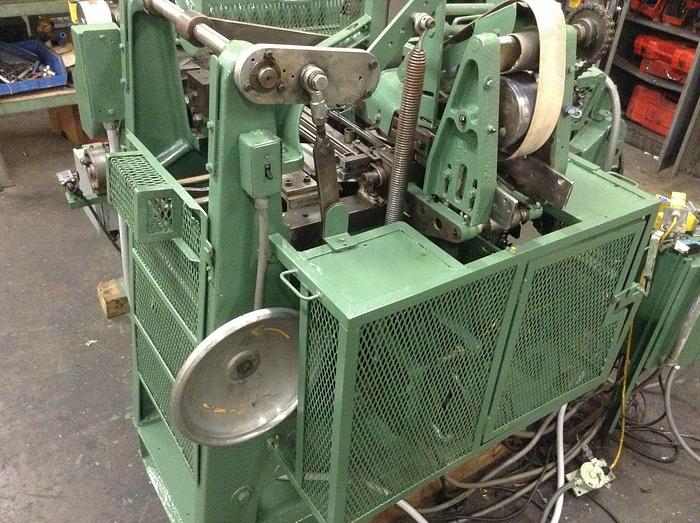

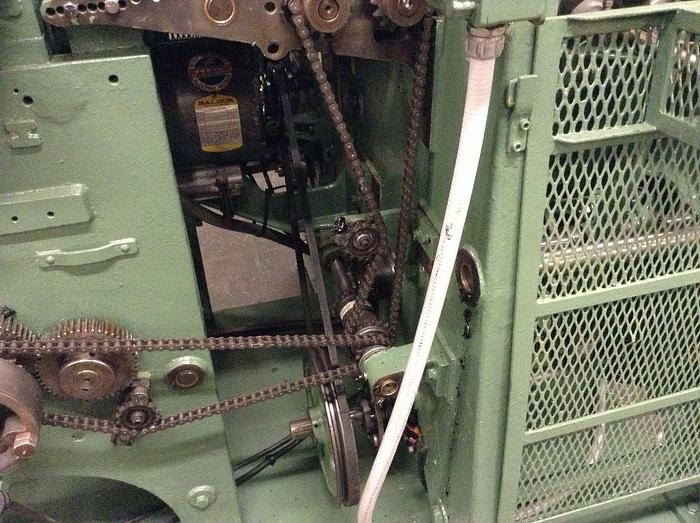

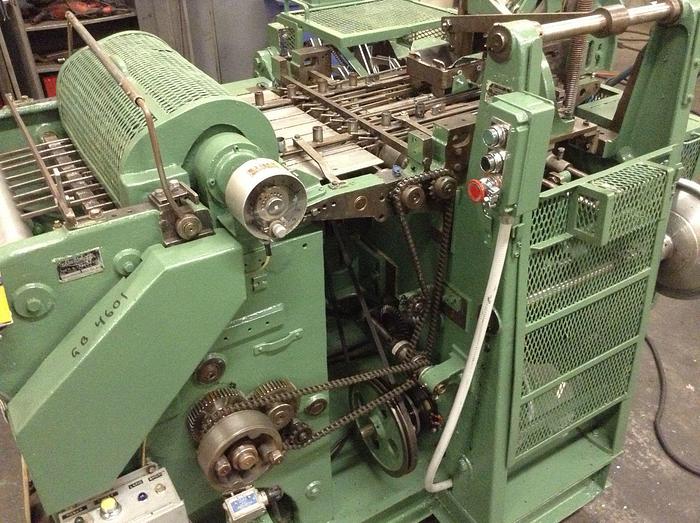

One (1) Used Lawton Model OBRX roll feed, single roll, household bath tissue wrapper. Cleaned tested painted Serial # 798. Wraps individual rolls of household tissue rolls in paper. The standard “O” Series wrapper is capable of mechanical speeds of 80 wraps per minute. Typical production speed, 60 wraps per minute. Equipped with Lawton roll feed attachment with sheeter. Unwind takes 18” diameter rolls of paper, 3” cores. Belt-driven unwind, 4.5” wide belt. Steel-to-rubber segmented pull roll section. 19” wide sheeter knife. Dietz electric eye; controls the cutoff of sheeter. Can use printed wrapping paper; will sheet on mark. (8) 4.25” cups. Typically can vary the diameter of roll .25" lower or higher. OB Series wrappers have adjustments to handle 4" to 4.5" wide rolls. Elevator & top plunger. Crimper & side plungers. Eject arms. With cups that are presently in the machine, will handle rolls from 4.0” to 4.5” diameter. If different diameter rolls are needed to be wrapped, then the purchase of different size cups can be made. Typical operating speed for Lawton wrapper is 60 wraps per minute; this is dependent upon operator’s skill, rolls of tissue, wrapper material, environment & condition of machine. 2 HP AC motor, 460 voltage. Good mechanical condition.

Specifications

ManufacturerLAWTON
ModelOBRX
ConditionUsed
Serial Number798
Stock Number904171.009
