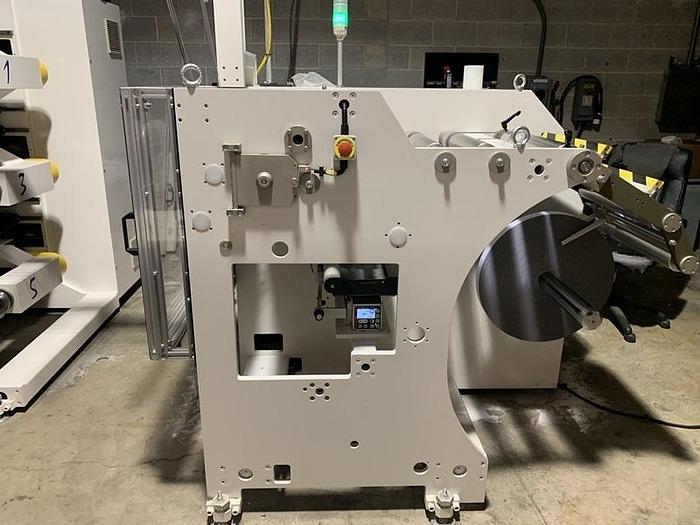

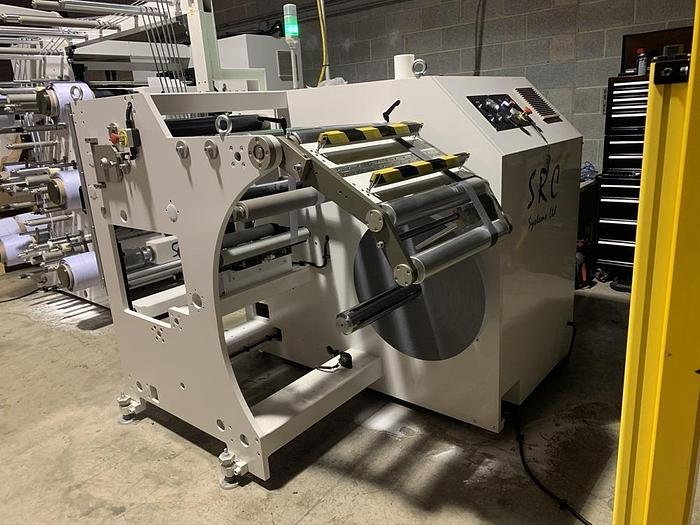

19" WIDE SRC SYSTEMS 6-HEAD SPOOLING SYSTEM MODEL SP06
19" WIDE SRC SYSTEMS 6-HEAD SPOOLING SYSTEM MODEL SP06
or
Call +1 215-664-6016
Description

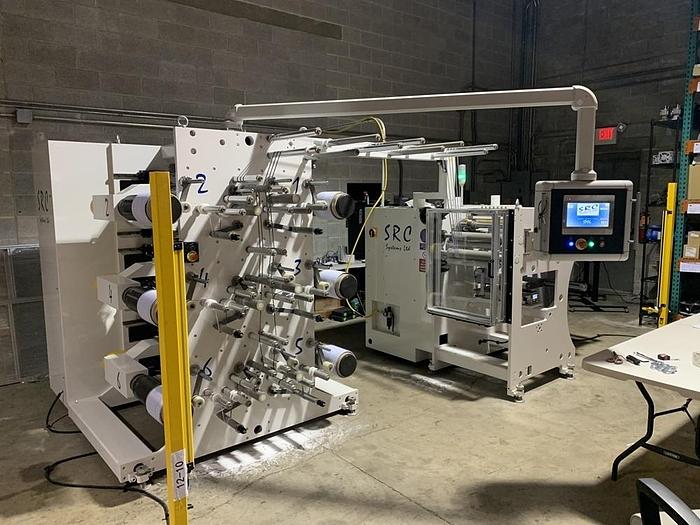

200230 One (1) New SRC Systems, Ltd. 6-Head Spooling System Model SP06 Maximum material width: 19" Max parent roll diameter: 40" BST pivot frame in-line guiding system Unwind shaft: 3" auto-inflating air shaft Equipped with all tooling for the following: Shear slitting: 1/4 Inch minimum slit Razor slitting: 1/8 Inch minimum slit Score slitting: 1/2 Inch minimum slit (can get lower with die cutting station option) Spool Information: Max spool width: 1.5" Minimum spool width: 1/8th" Maximum spool diameter: 19" Maximum machine speed (dependent on product type and width): 1000 ft/minute SRC has over 25 years experience. Est. 1994 in Ipswich, U.K. SRC Systems, Ltd. machines come with remote support & a 12-month parts warranty.
Specifications
| Manufacturer | SRC SYSTEMS LTD. |
| Model | SP06 |
| Condition | Used |
| Stock Number | 200230 |
| Width | 19.0 in |
| Rewind diameter | 19.0 in |
| Maximum material width | 19" |
| Max parent roll diameter | 40" |
| Unwind shaft | 3" auto-inflating air shaft |

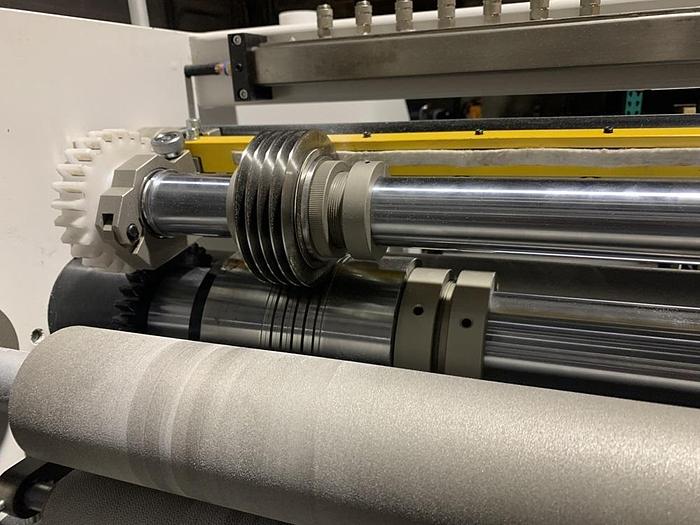

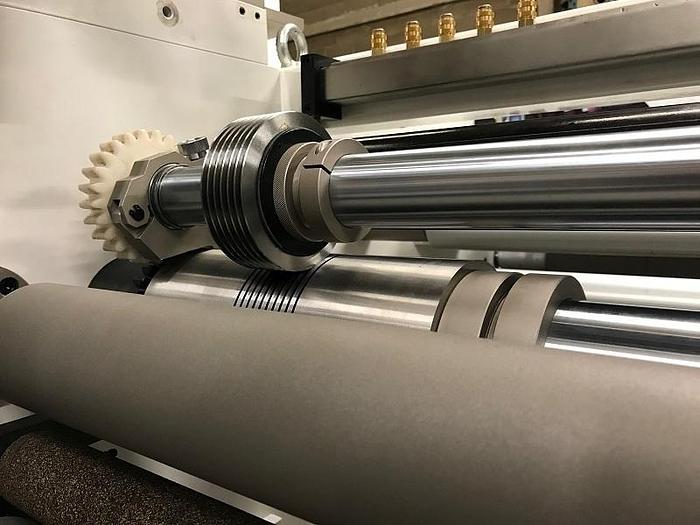

| Shear slitting | 1/4 Inch minimum slit |

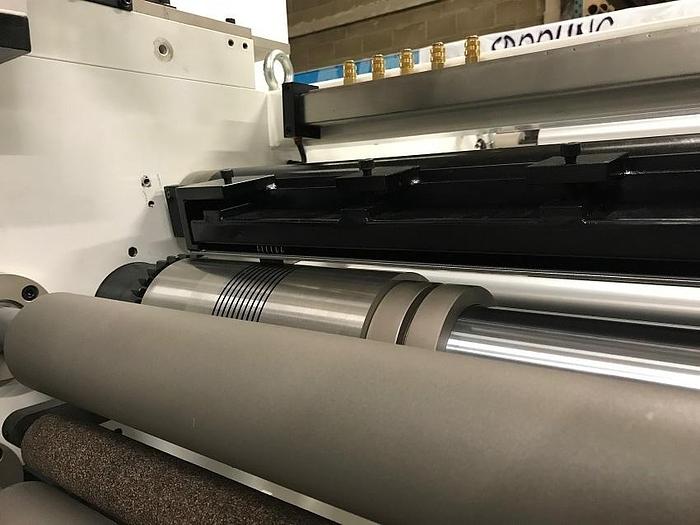

| Razor slitting | 1/8 Inch minimum slit |
| Score slitting | 1/2 Inch minimum slit (can get lower with die cutting station option) |

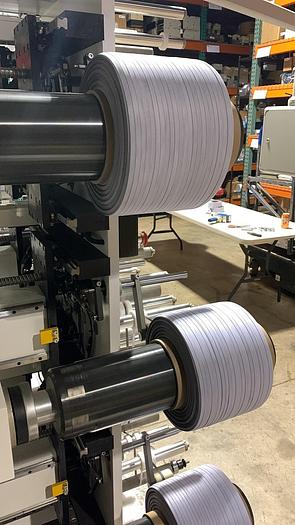

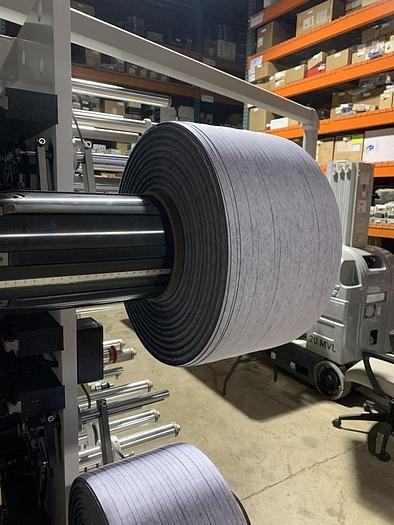

| Max spool width | 1.5" |
| Minimum spool width | 1/8th" |
| Maximum spool diameter | 19" |
| Maximum machine speed (dependent on product type and width) | 1000 ft/minute |
