24" DUSENBERY 635 DUPLEX REWINDER

24" DUSENBERY 635 DUPLEX REWINDER

Contact us for price

orCall +1 215-664-6016

Description

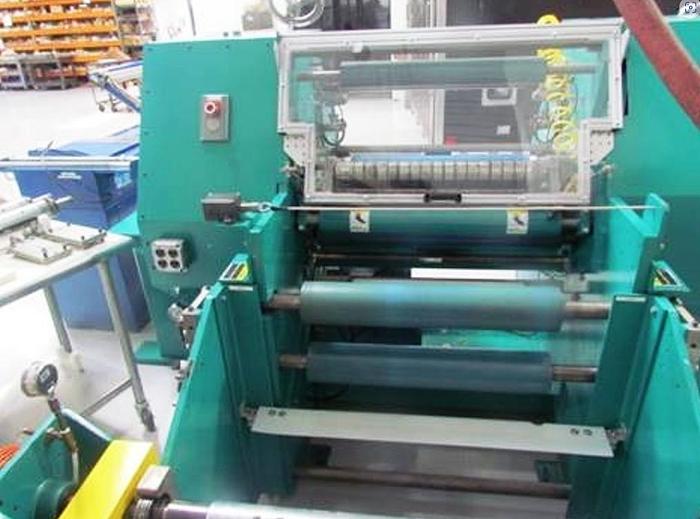

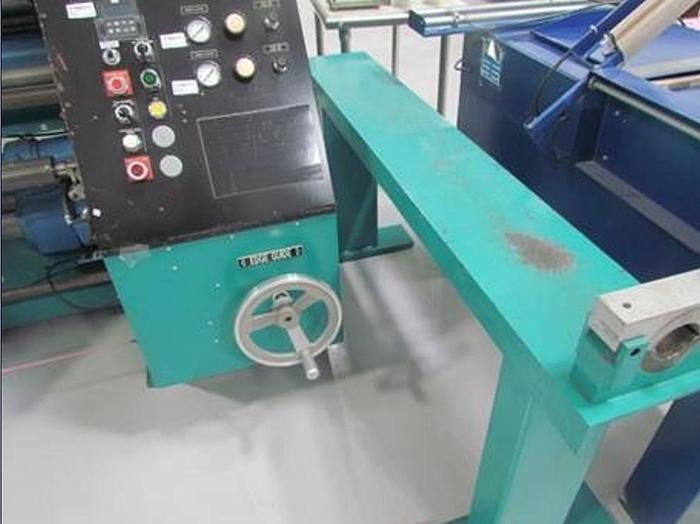

109458 24" Dusenbery Model 635 JD, lab slitter. Maximum rewind diameter of 24” without top riding rolls, with top riding rolls is 21”. Duplex rewind with core spacer differential rewind tension control-all the slit roll have individual tension control. Four zone individual tension control, you can run four different slit widths at the same time. Rewind mandrels for use with 3" core. Slitting is razor in the grove cut. Maximum speed is 500FPM. Cork covered pull rolls. Equipped with a 40” diameter free standing unwind. Automatic edge guide, Fife P-50, edge only guiding. Unwind tension is controlled with a air cooled Montalvo brake. 3" Tidland air expanding unwind shaft. The Drive system Consists of a 7.5 HP DC motor and a main drive controller. Unwind diameter of 40".

Specifications

ManufacturerDUSENBERY
Model635
ConditionUsed
Stock Number109458
