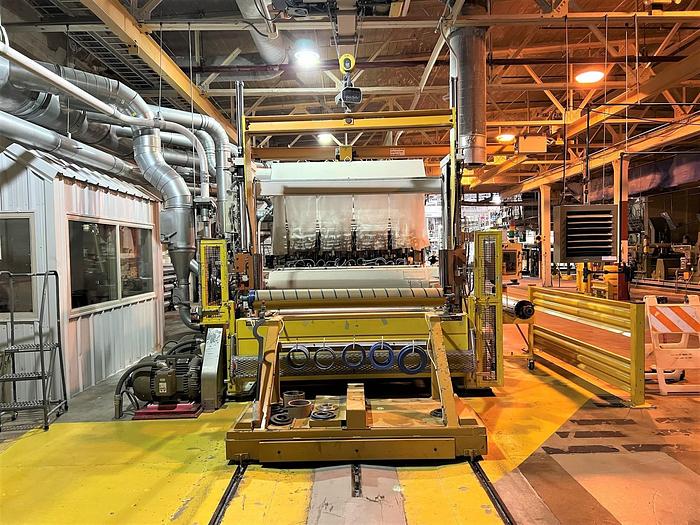

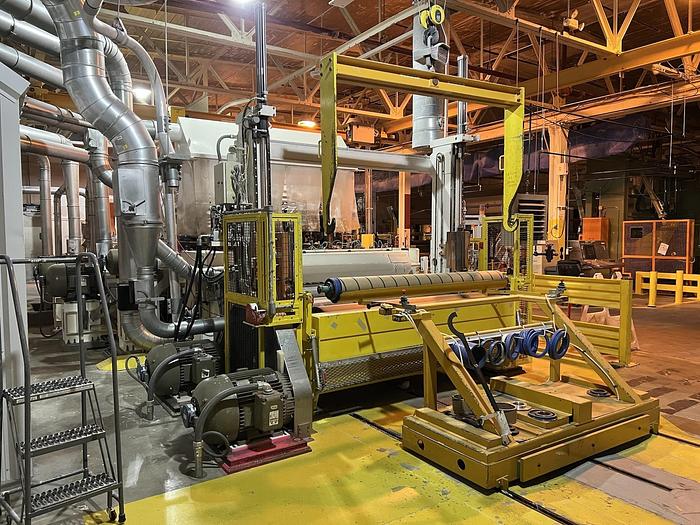

84" ASSOCIATED MACHINE DESIGN TWO DRUM SLITTER REWINDER 4500 FPM 66" DIAMETER

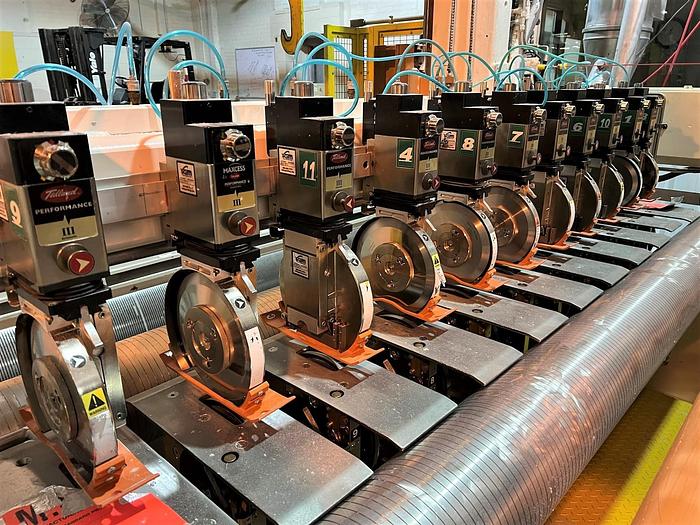

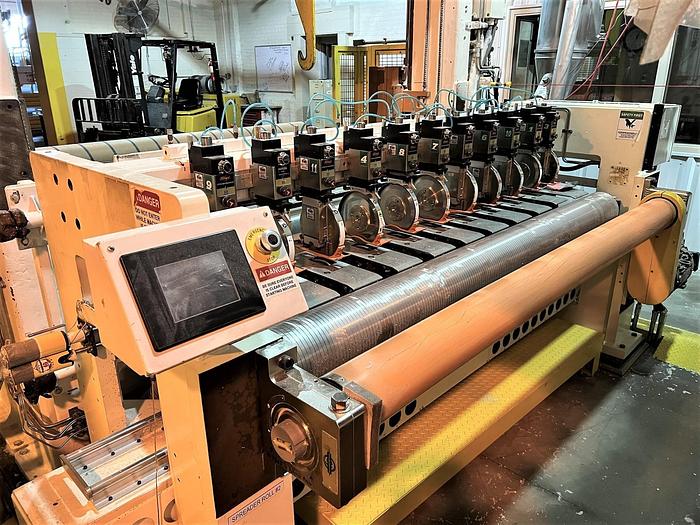

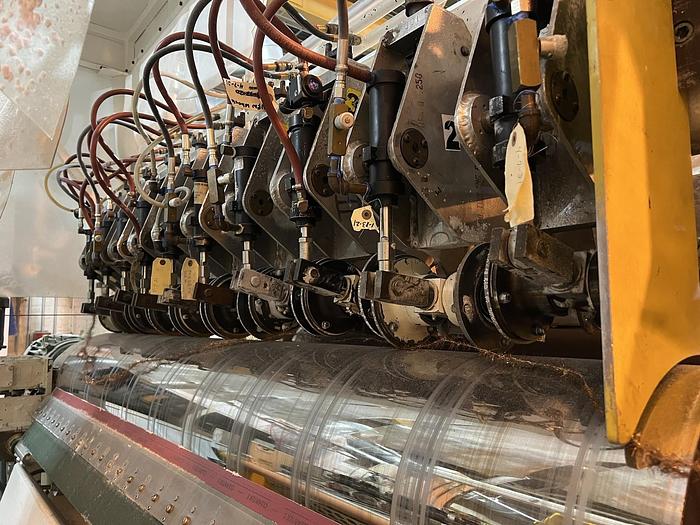

904117.001 Number of slitters eleven (11) Tidland Class III Blade diameter 200mm (7.87”) Blade material “D2” tool steel Band diameter 250 mm (9.84”) Band material “D2” tool steel Slit width 6” minimum Before table roll one (1) 7.90” diameter x 90.0” face After table roll one (1) 7.90” diameter x 90.0” face Rewind Section: Front bedroll one (1) 23.375” diameter x 85.5” face tungsten carbide coat Rear bedroll one (1) 23.375” diameter x 85.5” face circumferential grooves Wound roll diameter 66.0” maximum Presently installed.
