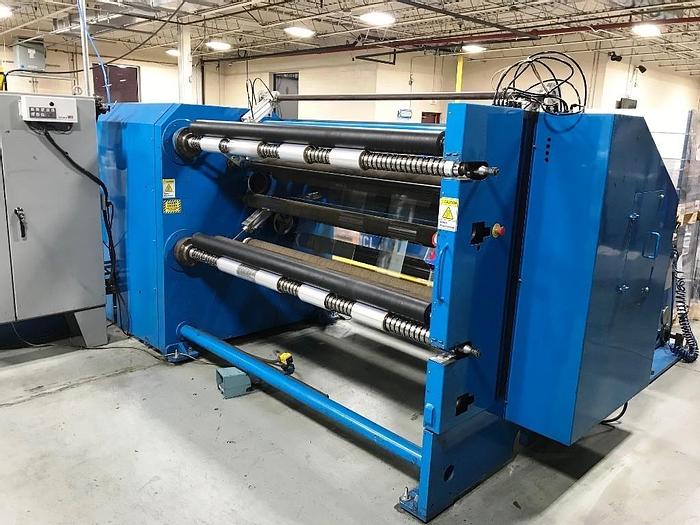

76" WIDE CAMERON DUPLEX CANTILEVERED SLITTER REWINDER

76" WIDE CAMERON DUPLEX CANTILEVERED SLITTER REWINDER

Contact us for price

orCall +1 215-664-6016

Description

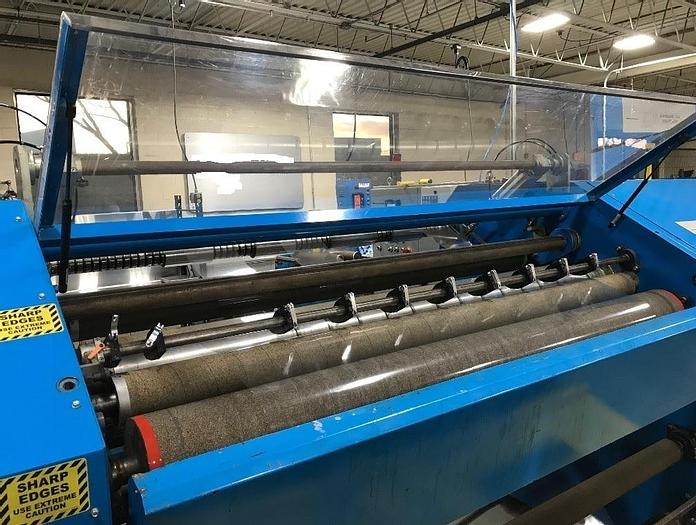

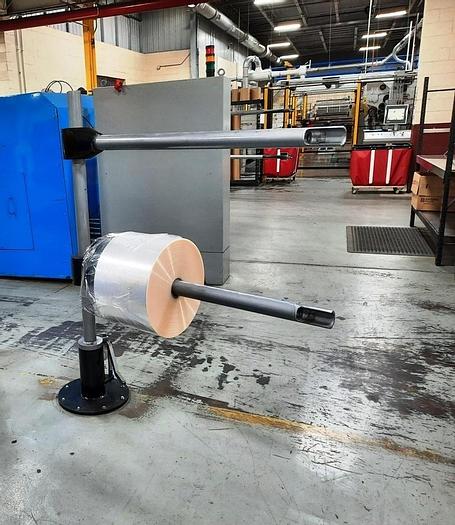

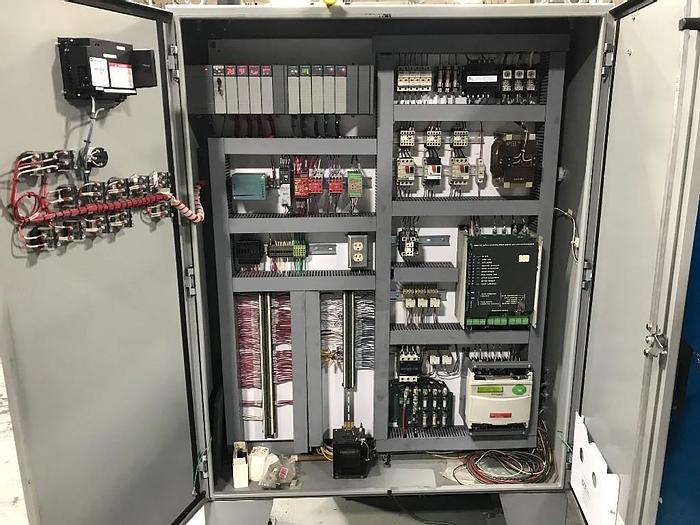

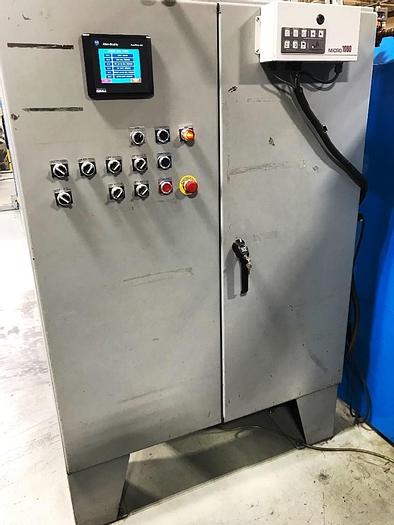

109503 One (1) Used 76” Wide used Cameron cantilevered slitter rewinder Separate unwind with lift, 40" diameters One pneumatic 3” diameter carbon fiber light weight unwind shaft Unwind has a automatic edge guide with +/- 2” travel and remote. Unwind tension automatic with a pair of load cells. With a air cooled brake. Razor in air slitting with bar mounted razors holders has capability for shear cutting 3" diameter rewind shafts, cantilevered. indirect friction air differential. 24” maximum rewind diameter. Top riding rolls are pneumatically loaded. Rubberized cork covered pull rolls. 2 cork covered pull rolls. One pull roll before slitting and one after slitting. This pull roll configuration maintains proper tension during slitting and isolates tension from the unwind and rewind. Automatic rewind taper/tension control. Two motor, bardac DC drive runs this machine to speeds up to 1000 FPM Main drive is 10HP and rewind drive is 20HP. Controls are Allen Bradly PLC with a operator interface through a touch screen display.

Specifications

ManufacturerELITE CAMERON
ModelDUPLEX CENTER WIND SLITTER
ConditionUsed
Stock Number109503
Width76.0 in
Rewind diameter24.0 in
