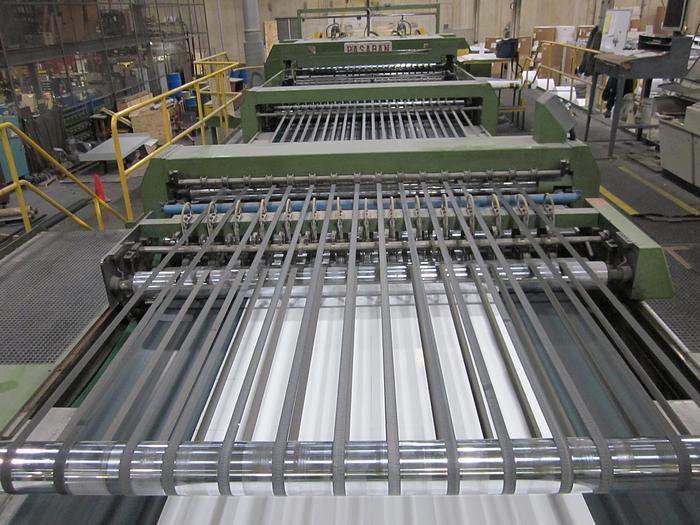

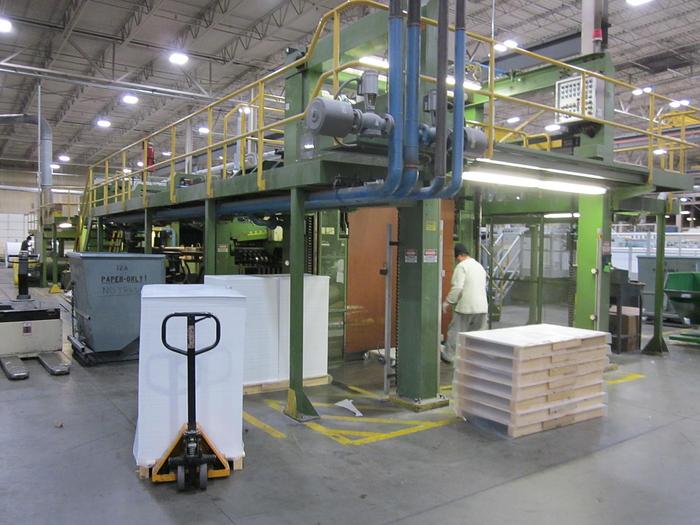

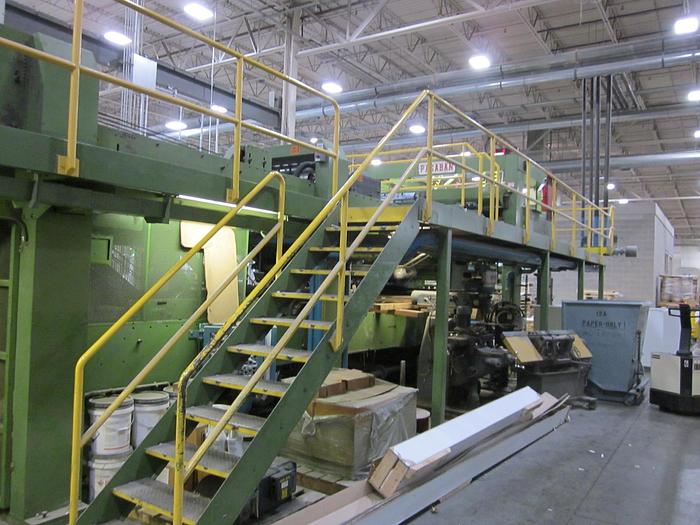

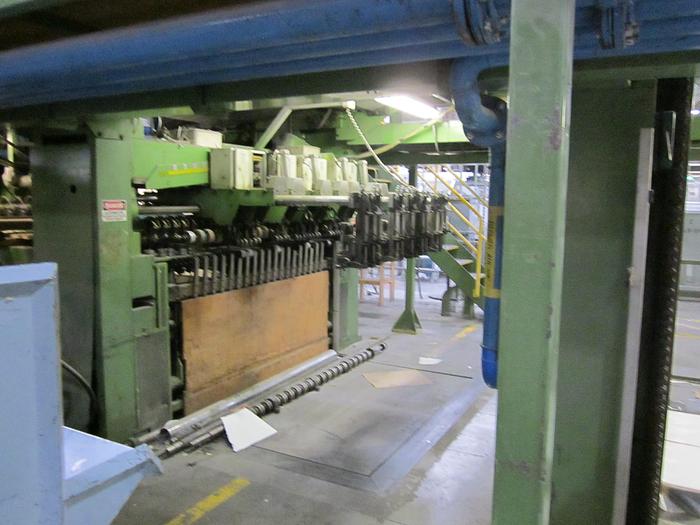

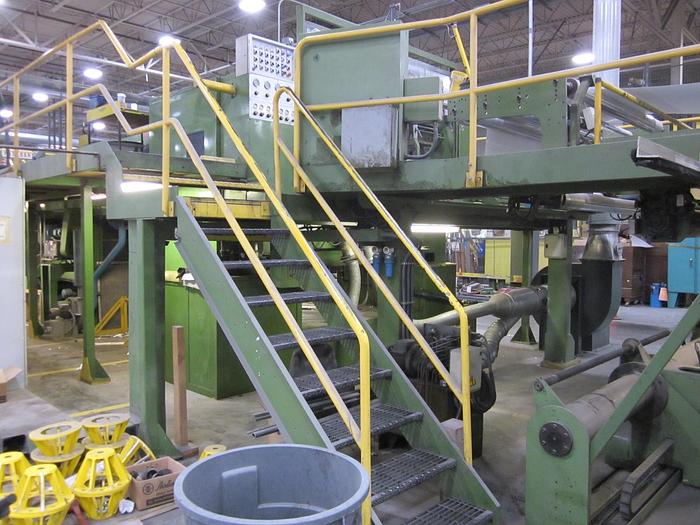

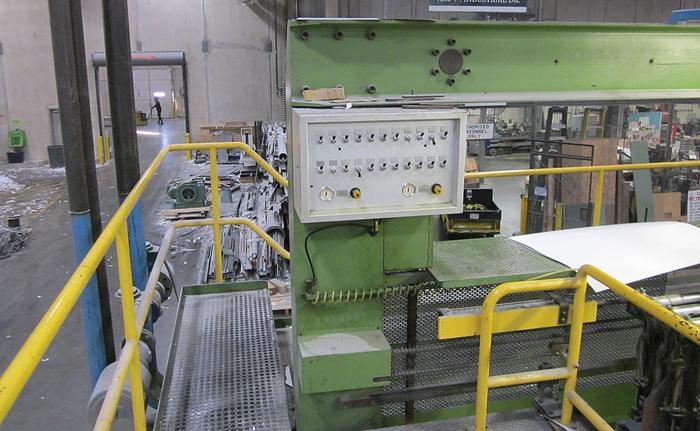

80" PASABAN MODEL KST-2200 DUAL ROTARY KNIFE SHEETER DRIVE UPGRADE 2010

80" PASABAN MODEL KST-2200 DUAL ROTARY KNIFE SHEETER DRIVE UPGRADE 2010

Contact us for price

orCall +1 215-664-6016

Description

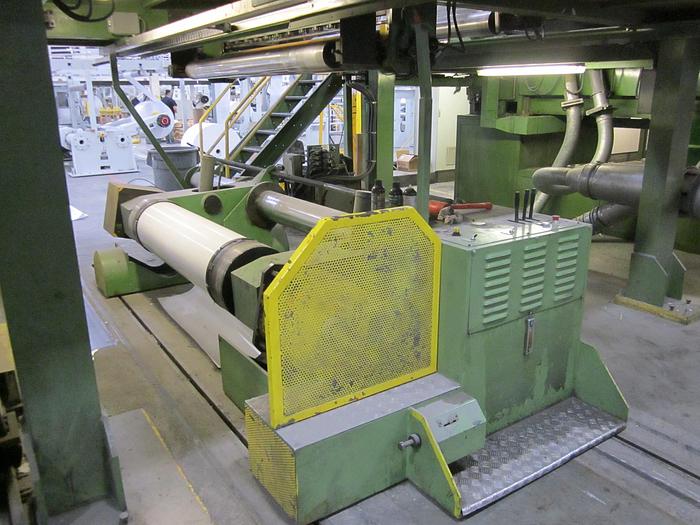

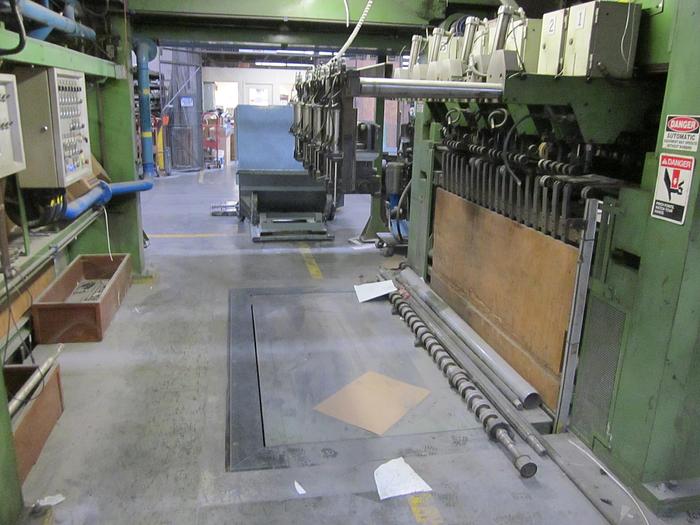

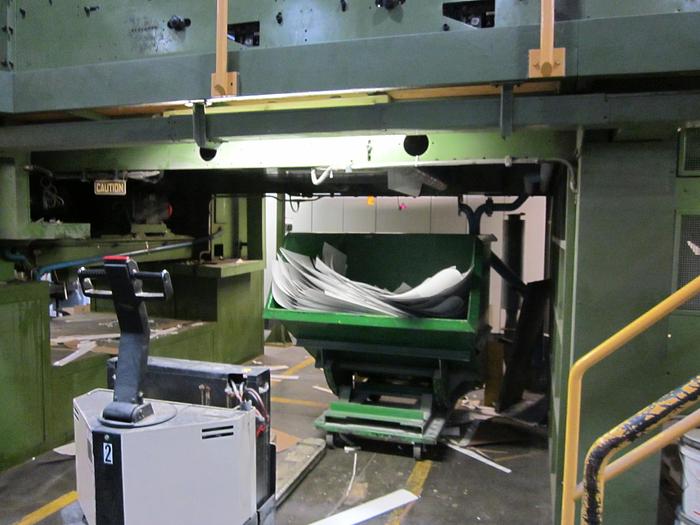

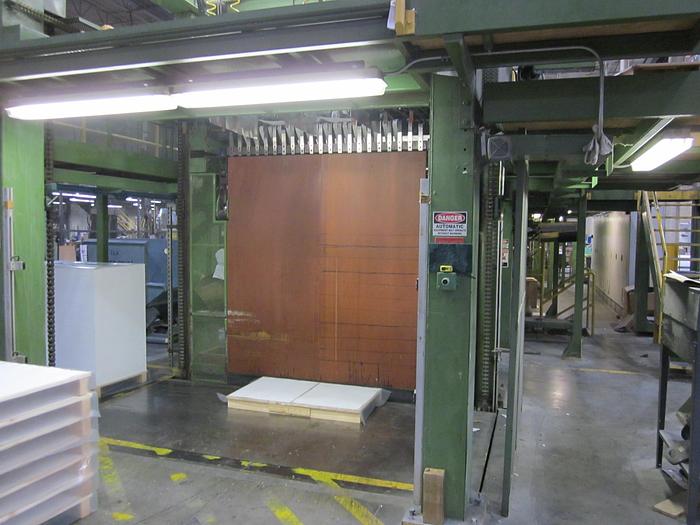

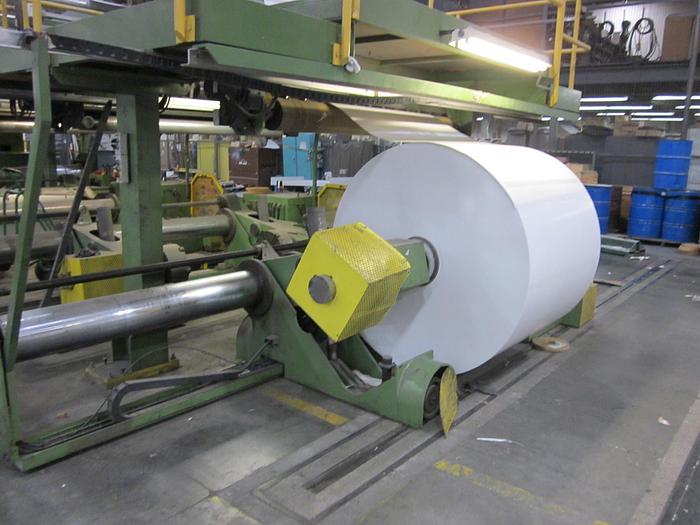

Model# KST-2200 Serial Number 1574 Manufactured 1990 Pasaban rebuilt drives 2010 3 - 80 HP motors Drum, Knife and High Speed blankets Speeds up to 1000 fpm 6 PT to 20 PT – 600 GSM max. knife load Max. Parent roll width 84” Min. 14” Maximum finished sheet width 80” Finished sheet length 17” to 60” Maximum 4 stacks – 72” Max piler height 4 shaftless roll out unwind stands 1 max. 72” dia. 3 max. 60” dia. Minimum roll diameter 20” 3”, 5”, 8”, 12” cores Bowed spreader roll 4 decurlers with dancer roll tension Reject gate to waste bin Additional reject gate to lower piler is inoperative 480V 3ph 60 hertz 600 amp power requirement 85 psi clean dry air requirement Footprint 120’L X 30’W X 17’H

Specifications

ManufacturerPASABAN
ModelKST-2200
ConditionUsed
Stock Number109408
