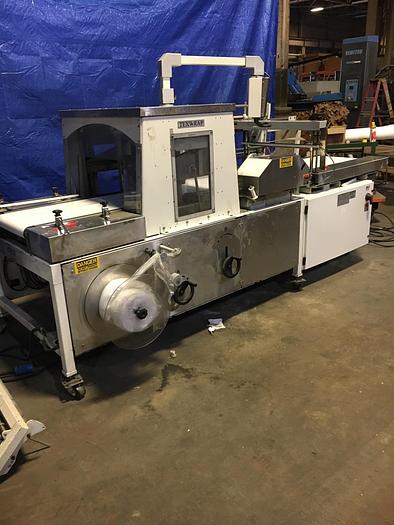

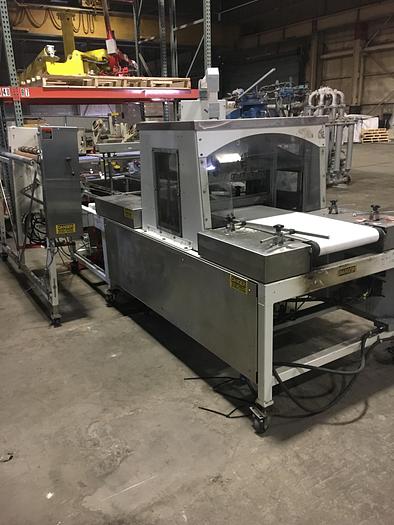

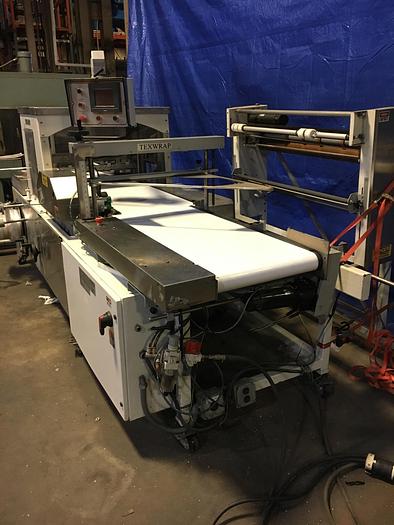

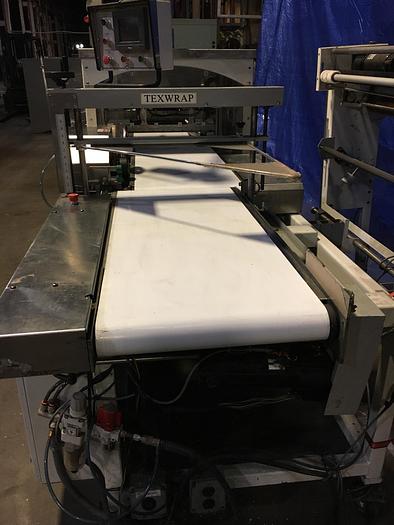

TEXWRAP MODEL 2202 S/S SIDE SEALER AND SHRINK WRAP TUNNEL

TEXWRAP MODEL 2202 S/S SIDE SEALER AND SHRINK WRAP TUNNEL

Contact us for price

orCall +1 215-664-6016

Description

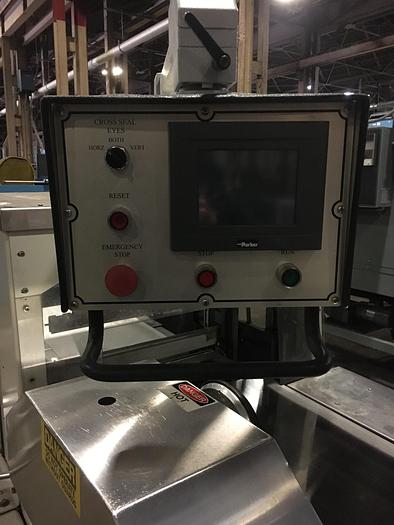

TEXWRAP # 2202 SS CONTINUOUS MOTION SIDE SEAL SHRINK WRAP SYSTEM W/ ALLEN BRADLEY PLC CONTROL, SWIVEL TOUCHSCREEN OPERATOR INTERFACE. ADJUSTABLE FILM INVERTING HEAD, PIN PERFORATOR, VARIABLE SPEED CONTROL, INFEED CONVEYOR SPEED TRIM TO CONTROL PRODUCT SPACING. SYSTEM IS IN VERY GOOD CONDITION AND WAS PREVIOUSLY RUNNING SW --PE AND POF SHRINK FILMS WITH A CENTERFOLDER. IT WAS USED FOR 2 MONTHS PER YEAR WRAPPING CHEESE CAKES FOR THE HOLIDAYS (THANKSGIVING THROUGH NEW YEARS). SET TO RUN SINGLE WOUND FILM. MAX. PKG. SIZE: 10.5”H X 20”W X INFINITE LENGTH MIN. PKG. SIZE: 4”L X 2”W MAX. FILM WIDTH: SW 54” MAX. FILM SPEED: 100’ /FPM POWER: 240V;1 PH; 15 AMP AIR REQUIRED: 80 PSI FLOOR SPACE: 156.5”L X 78.25”W X 66.25”H WEIGHT: 2800 LBS. --- TEXWRAP # 1622-2 DUAL CHAMBER SHRINK TUNNEL DOUBLE CHAMBER FORCED AIR SHRINK TUNNEL W/ TEFLON MESH BELT CONVEYOR. ADJUSTABLE CONVEYOR SPEED AC DIRECT DRIVE; DIGITAL TEMPERATURE CONTROLS; TOP & BOTTOM AIR FLOW CONTROLS W/ EXTENDED OUTFEED CONVEYOR AND TWO FANS FOR PE SHRINK FILM. CONDITION IS VERY GOOD AND WAS USED FOR TWO MONTHS PER YEAR FOR THE THANKSGIVING THROUGH CHRISTMAS HOLIDAYS. CONVEYOR SPEED: 0-160’ FPM TUNNEL CHAMBER: 22”W X 16”H X 85”L POWER: 240V; 3 PH; 60 AMP FOOT PRINT: 44”W X 79”H X 185”L WEIGHT: 2400 LBS.

Specifications

ManufacturerSTORK TEXWRAP
Model2202
ConditionUsed
Stock Number904091.002
Weight2400 LBS.
Max. pkg. size10.5”H X 20”W X INFINITE LENGTH
Min. pkg. size4”L X 2”W
Max. film widthSW 54”
Max. film speed100’ /FPM
Power240V; 3 PH; 60 AMP
Air required80 PSI
Floor space156.5”L X 78.25”W X 66.25”H
Conveyor speed0-160’ FPM
Tunnel chamber22”W X 16”H X 85”L
Foot print44”W X 79”H X 185”L
