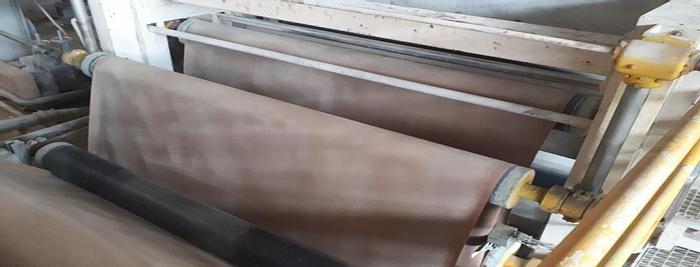

104" (2.65M) TISSUE MACHINE 20 - 30 TPD (2) CONFIGURATIONS

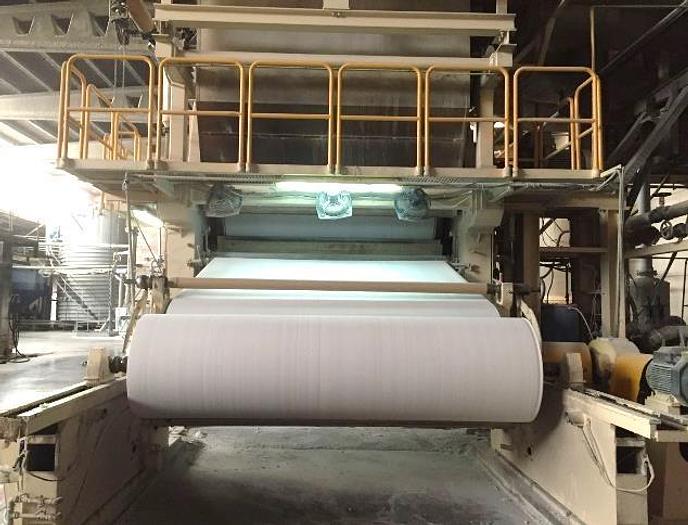

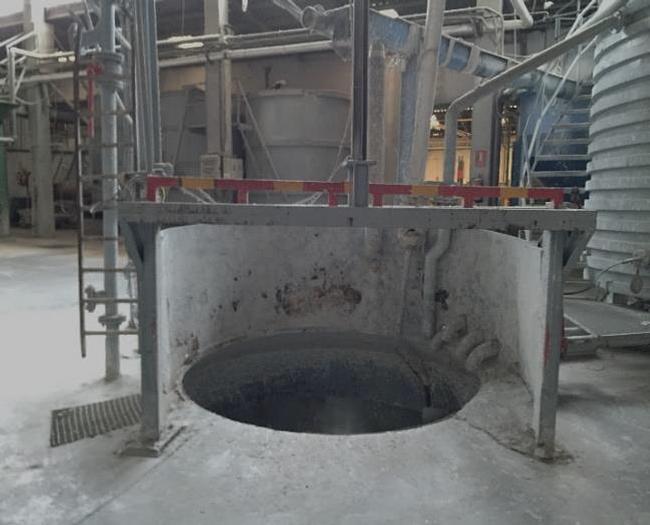

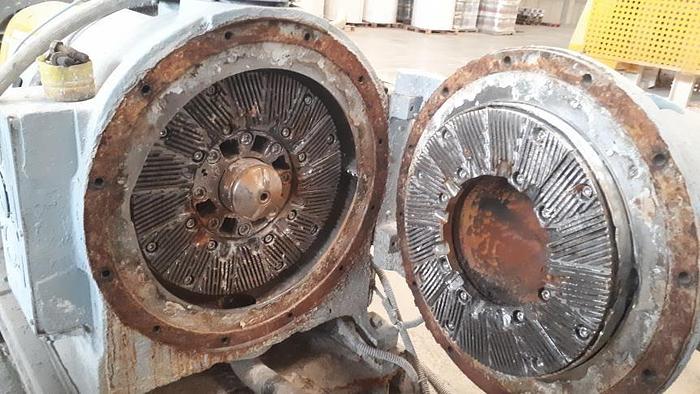

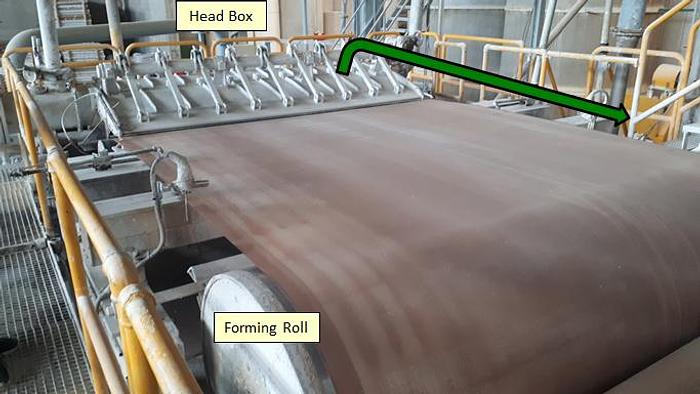

109244 One (1) used 104" (2.65M) wide Tissue machine Solá Industrias Mecánicas Year: 2000 Capacity: 20-30 TPD (from 15 to 32 GSM) Width: 2650 mm Speed: 500 m/min IMPORTANT: this tissue machine can have two configurations: –Crescent Former design (100% virgin pulp) –Flat Wire design (100% recycled fibers) Stock preparation included (14 m3 Low Density Pulper, 2 x Beloit DD refiners (16″), etc..) Paper machine with: Close headbox (flow rate: 20.000 l/min) Vacuum forming section Suction press roll Drying section composed of 8 dryers Yankee cylinder: diameter 3200 mm, width 2800 mm High Efficiency hood with heat recovery system, width 2800 mm Pope reeler, width 2800 mm, for jumbo rolls diameter (1270-1778 mm) and core diameter 76 mm Water recovery system Boiler (3000 Kg of steam/h) Several spare parts and ancillary equipment available
