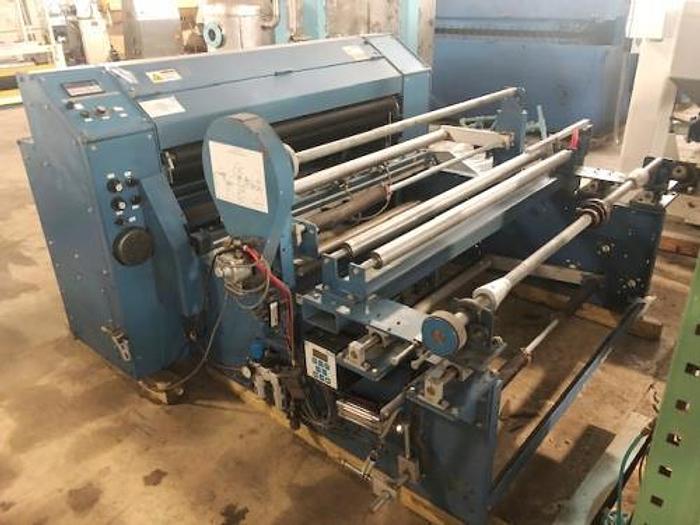

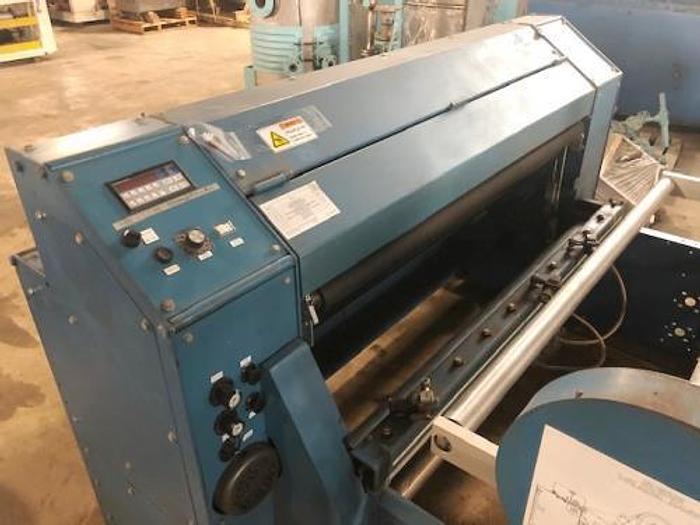

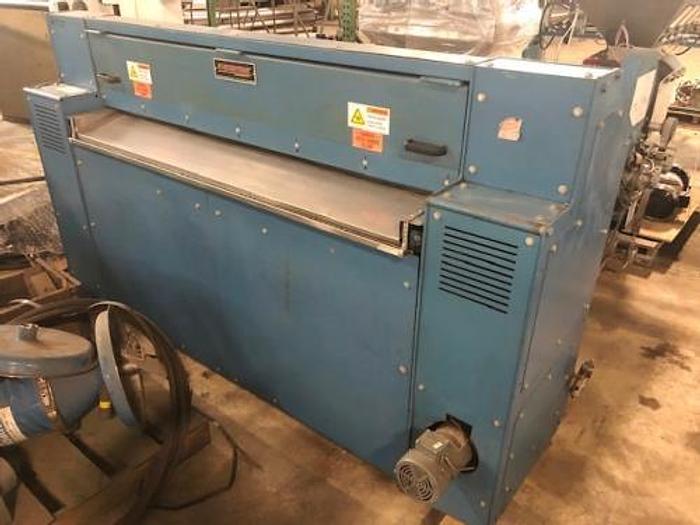

USED 60' ROSENTHAL SHEETER WAS-5-HUSEAAWJ

No longer available

USED 60' ROSENTHAL SHEETER WAS-5-HUSEAAWJ

Description

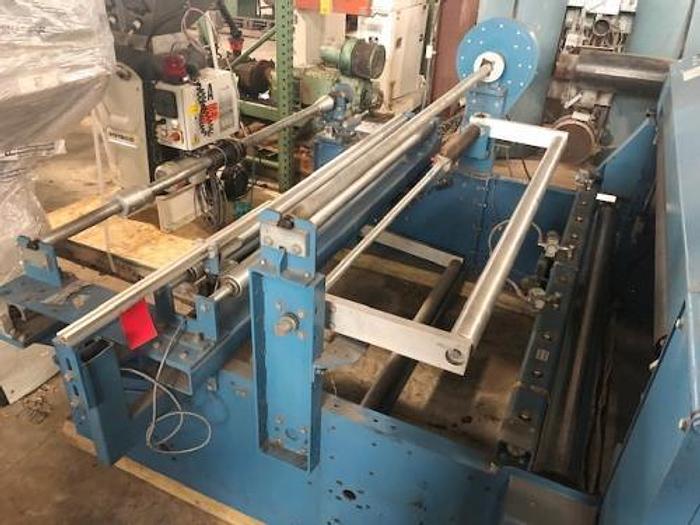

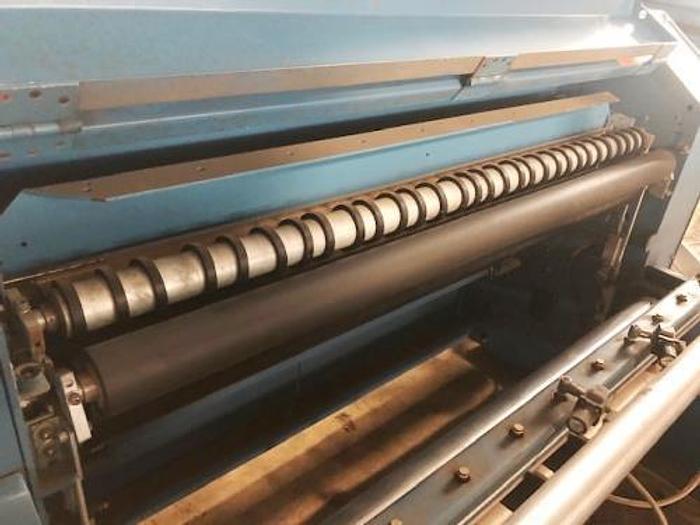

109328 Used-60" Rosenthal Sheeter Model WAS-5-HUSEAAWJ, Year.2014. Capable of processing materials that meet the following specifications: Specification WAS-5 Maximum Web Width 60? H Heavy Duty Knife U Unwind Stand 500lbs (estimate) S Slitting E Static Eliminator AA- Chain Drive W rewinder- 12? diameter rolls G Edge Guide System This machine will cut one 36 inch long sheet in 2-3* seconds and has a dynamic edge guide. Unwind Features: -Unwind 250 lb Maximum Capacity, 36 inch Maximum OD -Dancer for maintaining tension control Feed Features: -The pulling station is powered by Chain Drive -Nip pressure roll -Static Eliminator Cut Features: -Cross Cut made by Heavy Duty Scissors Action Shear Cutting Mechanism with linear blades. -The top blade is fixed and the bottom blade is movable with AC motor -Blade pressure is spring loaded -Cutting action is Shear -Blades are hardened D2 steel. -No tool change required for cutting specified materials * Note Blades wear over time Miscellaneous Features: Machine painted Rosenthal standard blue Facility Requirements: Acceptable range of input voltages 120v, Single Phase, 60 hz. There are two Rosenthal slitter knives. The manifold is equipped for up to 11 knives.

Specifications

ManufacturerROSENTHAL
ModelWAS-5-HUSEAAWJ
Year2014
ConditionUsed
Serial Number81528
Stock Number109328
