59" NORDMECCANICA SOLVENTLESS COATER LAMINATOR 600 SL MODEL 1500; 50" TURRETS
No longer available
59" NORDMECCANICA SOLVENTLESS COATER LAMINATOR 600 SL MODEL 1500; 50" TURRETS
Description

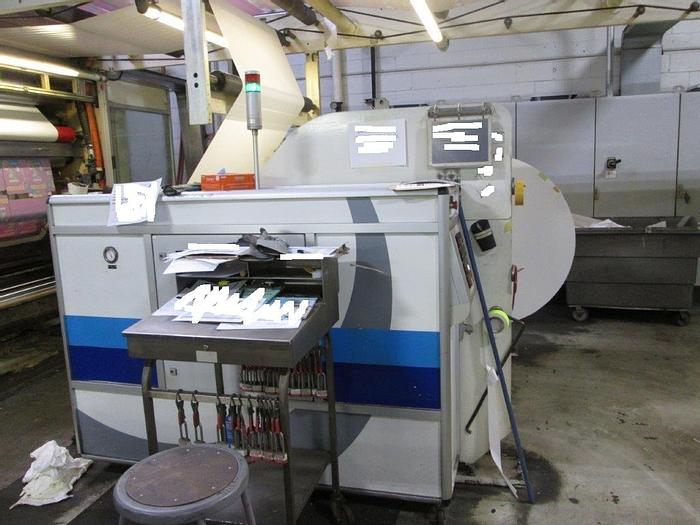

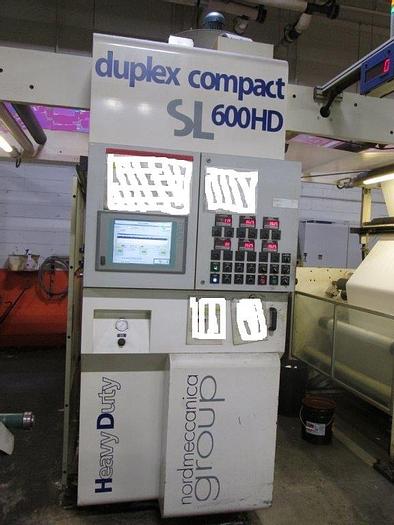

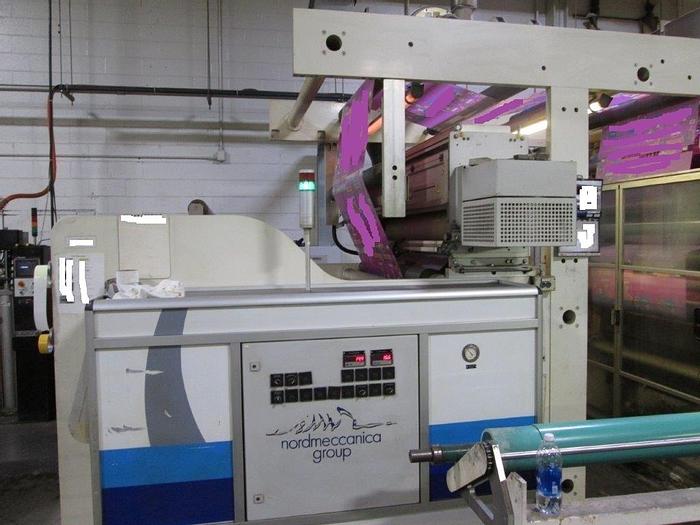

One (1) Used 59" Nordmeccanica Solventless Coater Laminator 600 SL Model 1500
*all specifications listed were taken from original specification*
Max working width: 59"
Minimum working width: 22"
Fife web guide
Turreted unwinds and rewind for continuous run
Unwind units maximum diameter: 50"
Unwind units core diameters: 3" & 6"
Unwind units max weight: 3300 lbs
Rewind unit maximum diameter: 50"
Rewind unit core diameter: 6" only
Rewind unit max weight: 3300 lbs
Web tension minimum:
Unwind: 15 lb
Rewind: 20 lb
Web tension maximum:
Unwind: 165 lb
Rewind: 200 lb
Mechanical Speed: 1968 ft/minute
Max automatic reel change speed: 1312 ft/minute

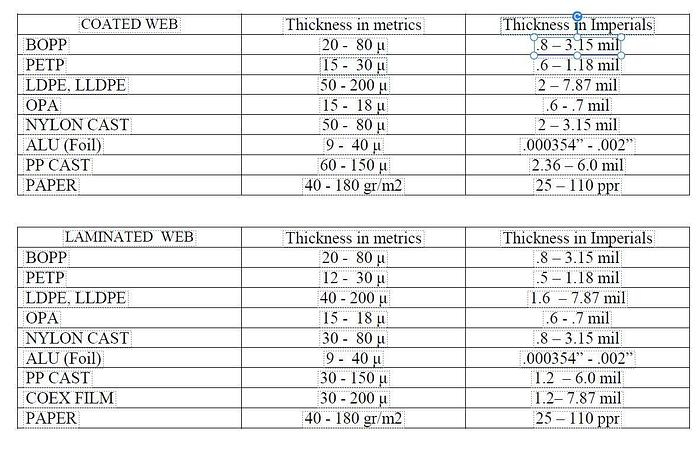

See photo for material range
Voltage: 3x 480v, 60hz
Air: 87 to 145 psi
Specifications
| Manufacturer | NORDMECCANICA |
| Model | 600 SL MODEL 1500 |
| Year | 2012 |
| Condition | Used |
| Stock Number | 109304 |
| Width | 59.0 in |
| Max working width | 59" |
| Minimum working width | 22" |
| Unwind units maximum diameter | 50" |
| Unwind units core diameters | 3" & 6" |
| Unwind units max weight | 3300 lbs |
| Rewind unit maximum diameter | 50" |
| Rewind unit core diameter | 6" only |
| Rewind unit max weight | 3300 lbs |
| Unwind | 165 lb |
| Rewind | 200 lb |
| Mechanical speed | 1968 ft/minute |
| Max automatic reel change speed | 1312 ft/minute |
| Voltage | 3x 480v, 60hz |
| Air | 87 to 145 psi |
