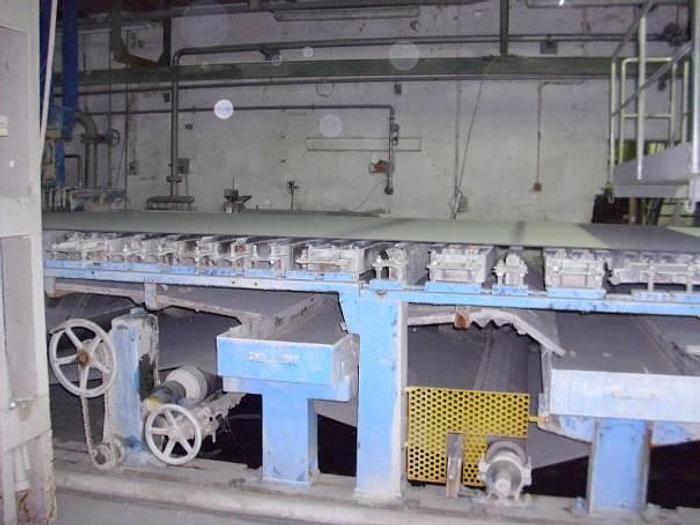

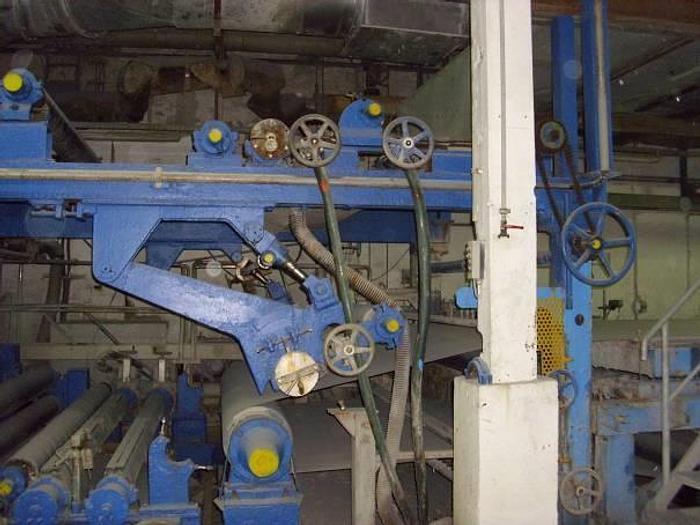

2320mm Pama Machine for Tissue and MG Paper

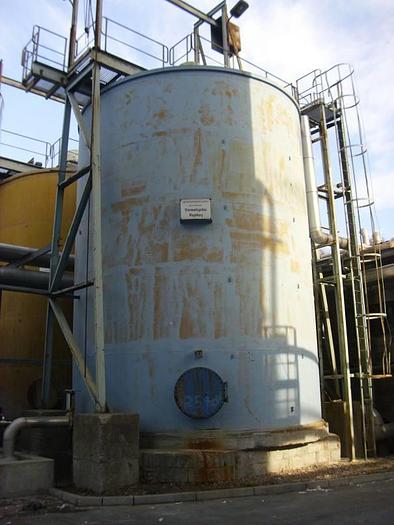

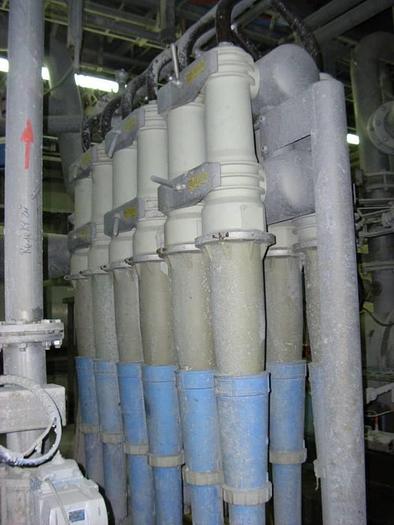

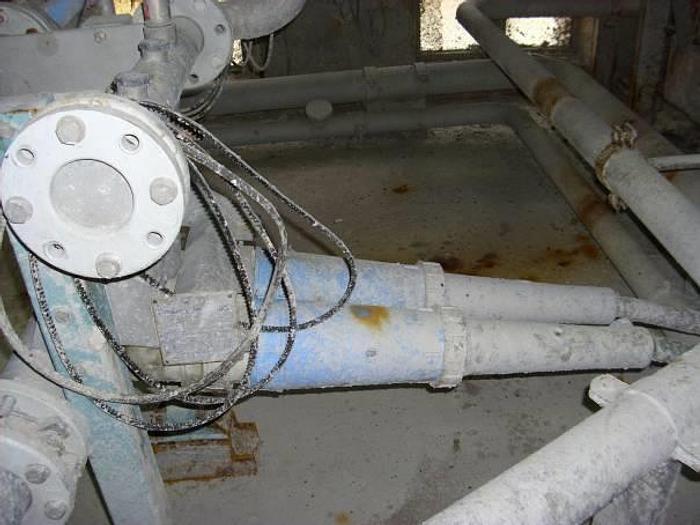

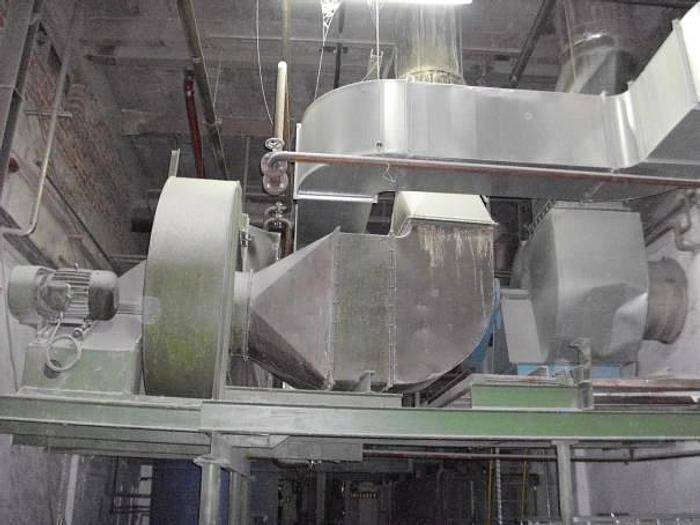

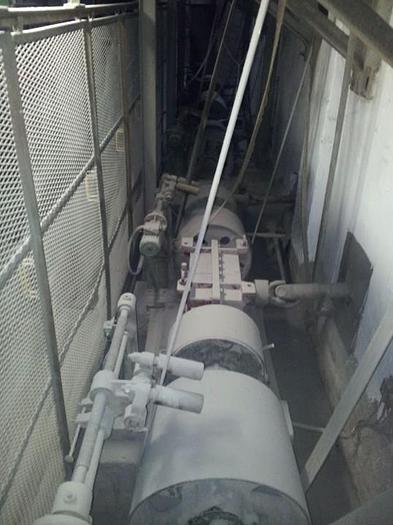

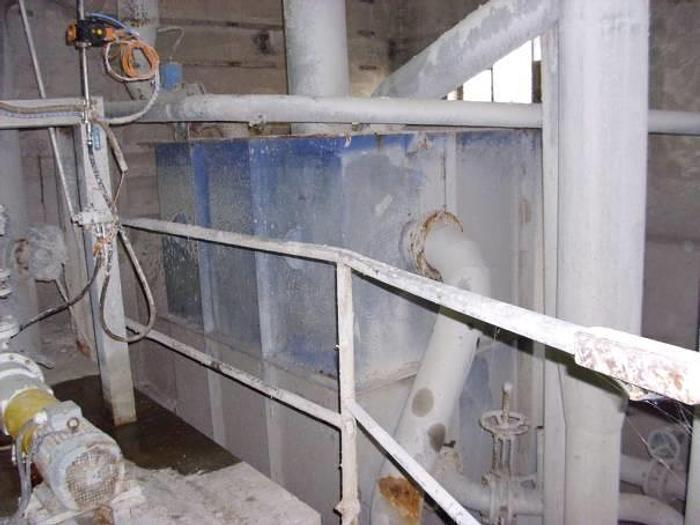

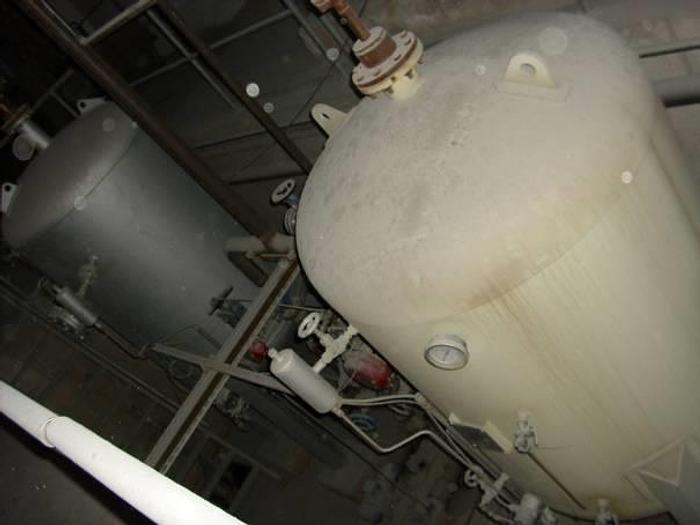

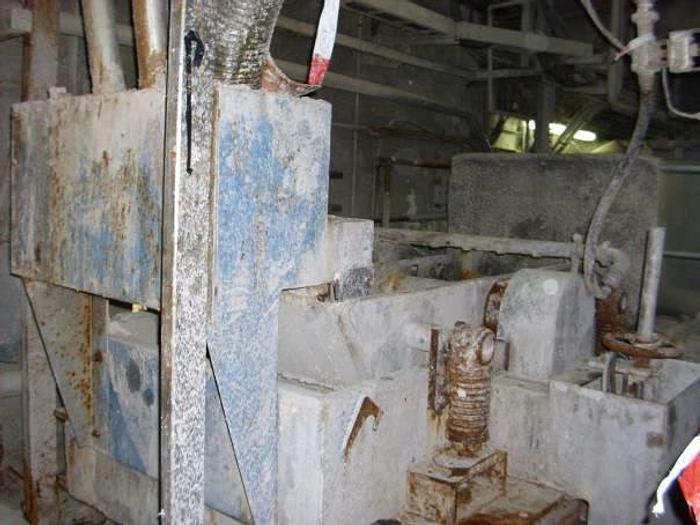

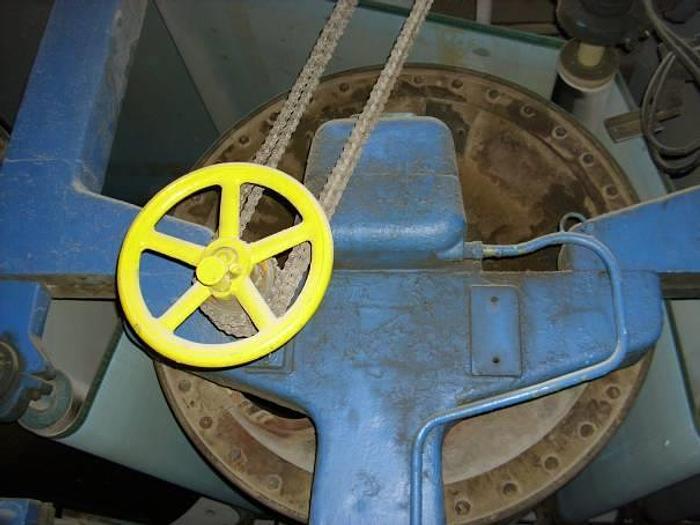

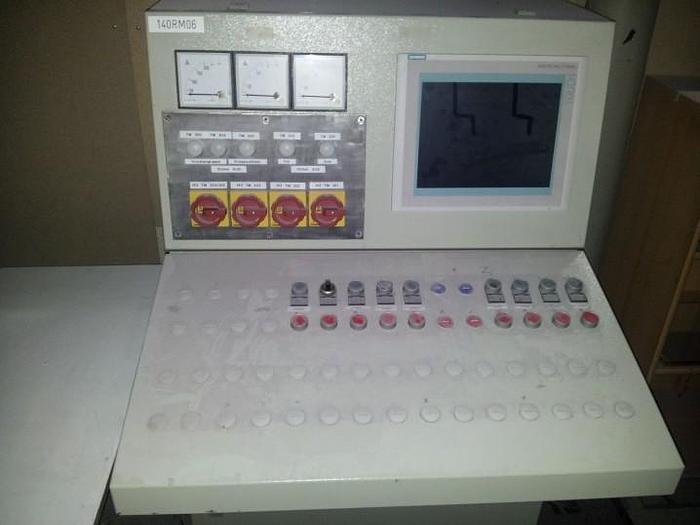

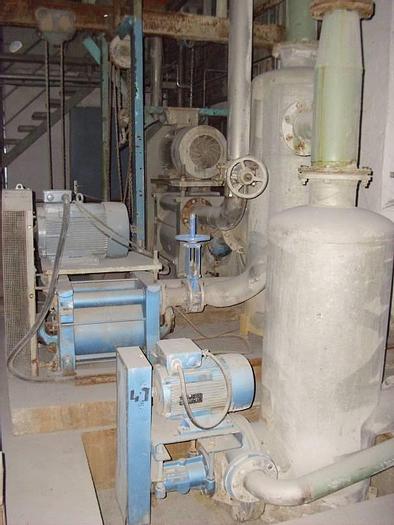

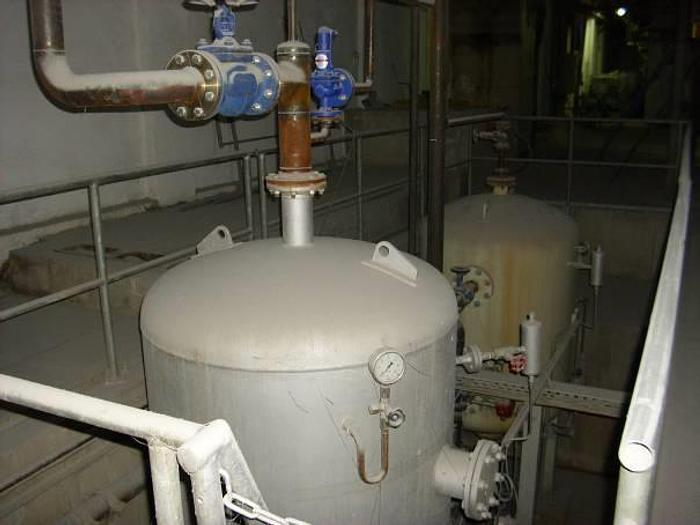

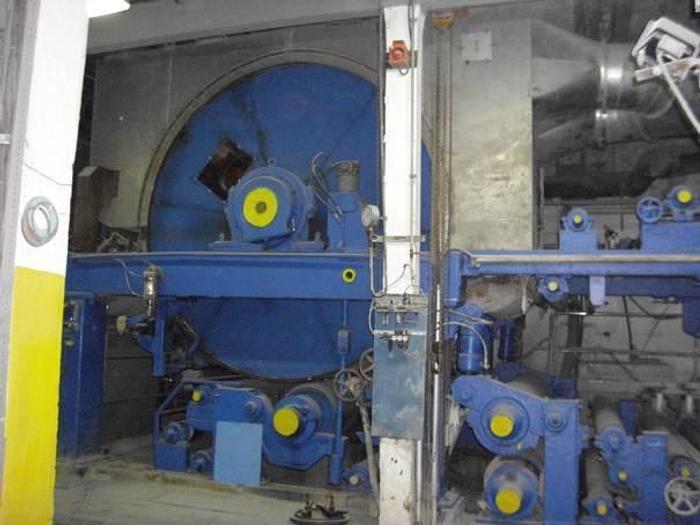

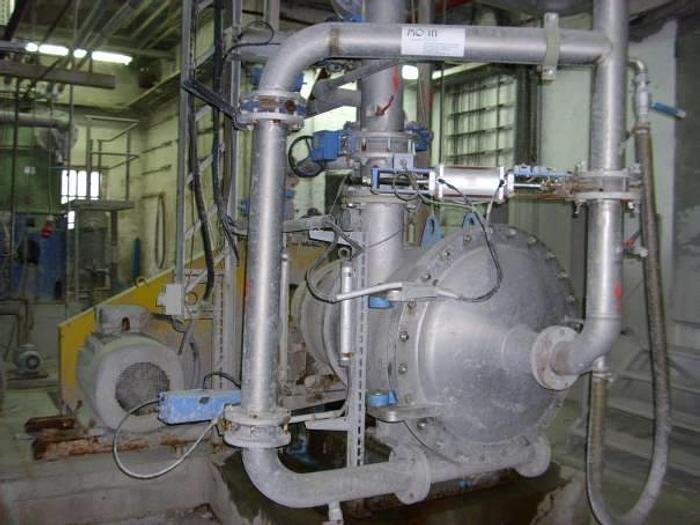

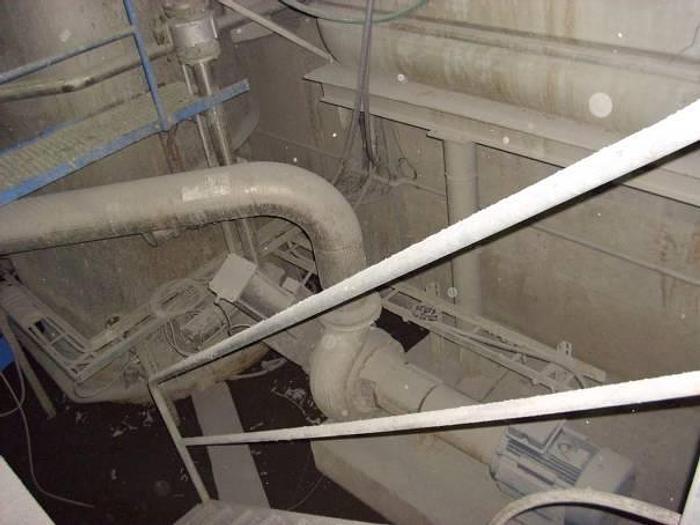

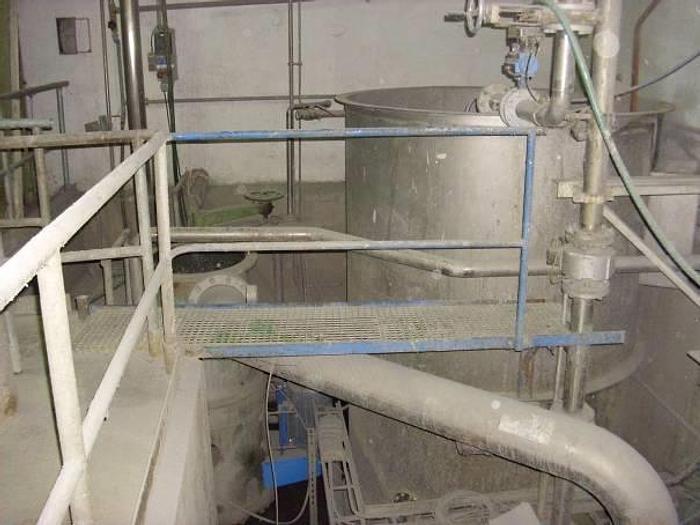

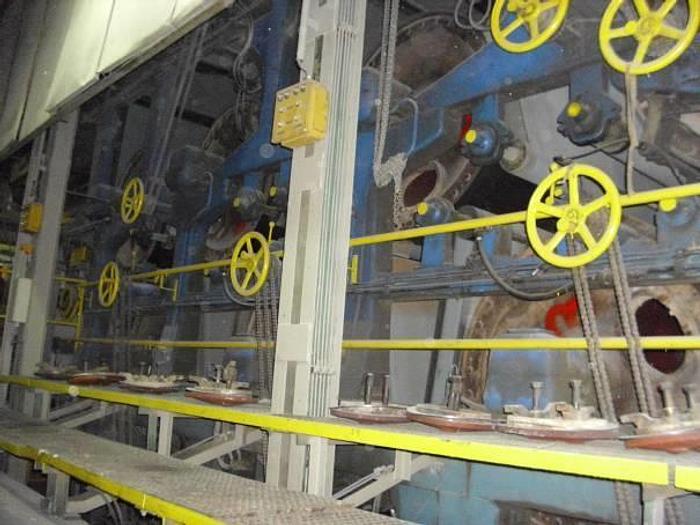

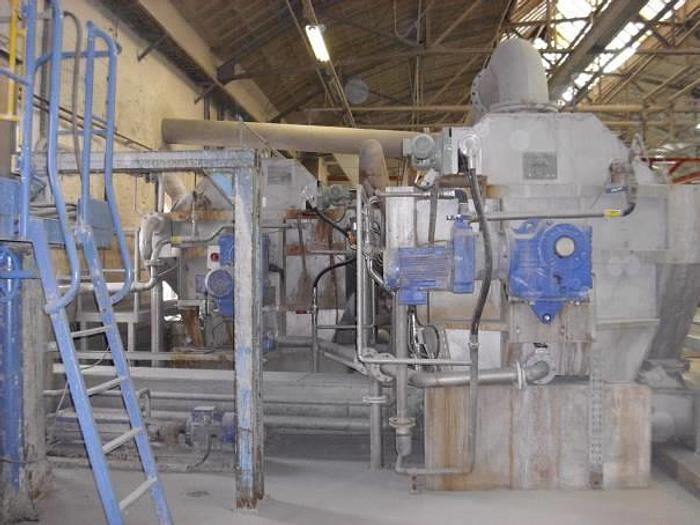

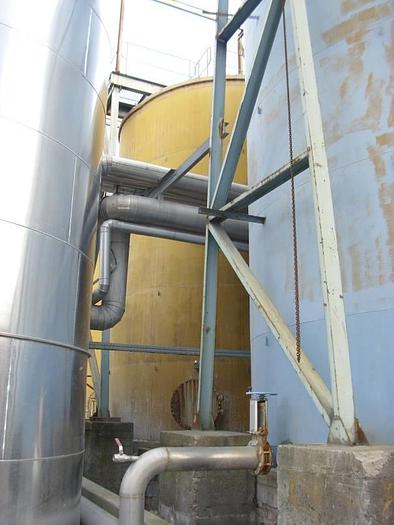

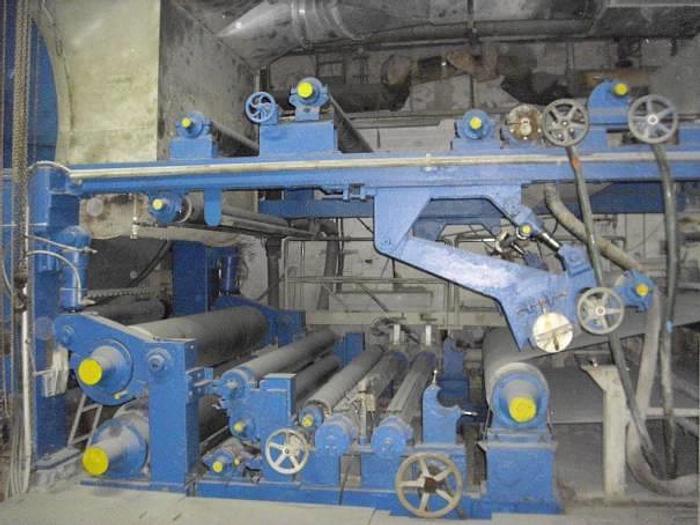

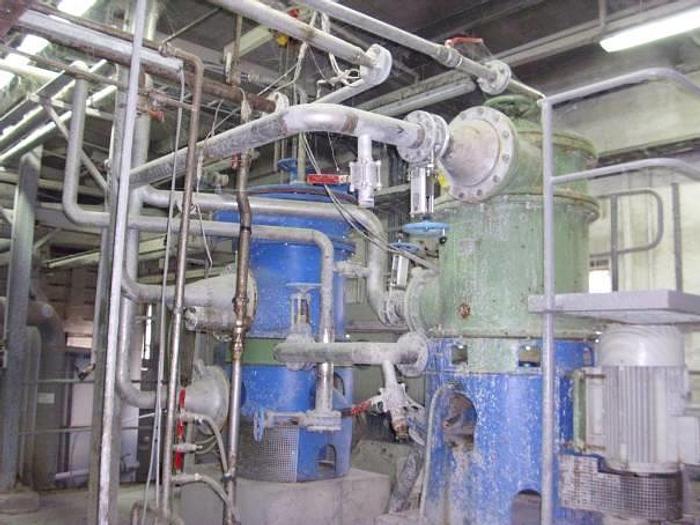

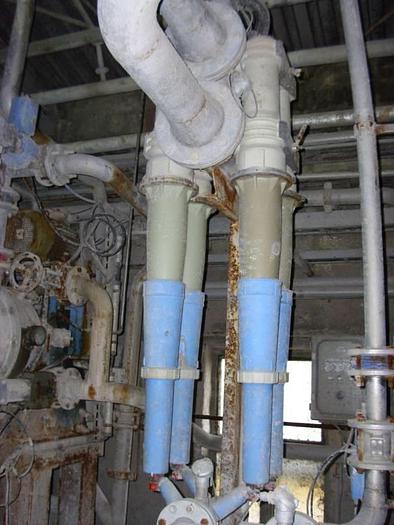

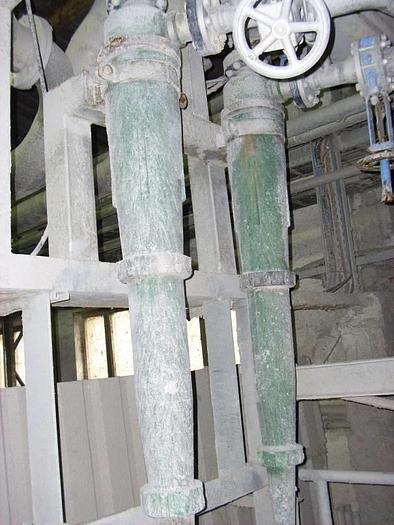

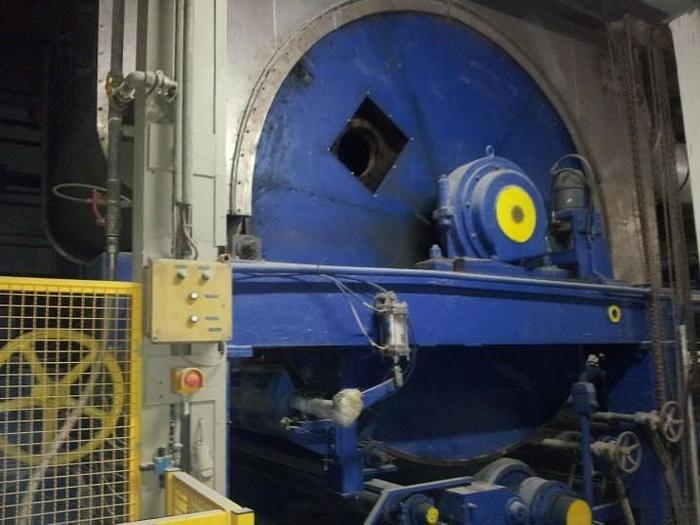

Manufacturer: PAMA Year: 1958 In production until mid of 2010, now well preserved (cylinders open for avoiding moisture accumulation, lubrication verified, etc...) Right hand drive Production: 30-40 tpd of crepe paper towel 41 gsm Type of furnish: waste paper Width at reel: 2320 mm Speed on Yankee: 320-350 m/min Yankee diameter: 3187 mm, metallized in 2001 Yankee operating pressure: 2.5 bar Press section: 2 presses (1 felt press, 1 yankee) Dry section: 8 drying cylinders. Canopy hood on the cylinders Cylinder diameter: 1500 mm Cylinder operating pressure: 2.5 bar Steam and condensate system N° 3 doctor blades Overhead monorail crane for spool handling Walkways and stairs Stock preparation composed of: N° 8 process pumps N° 20 cleaners N° 5 screens N° 1 deflaker N° 4 chests N° 1 vertical agitator Water treatment system Vacuum system Air system PLC by Siemens (Simatic S7) Pulper, conveyor belt and refiner not included in the supply Several spare parts available, including cylinders, felts, rolls, motors, screens, etc...
