100" JAGENBERG VARI-STEP 4318
No longer available
100" JAGENBERG VARI-STEP 4318
Description

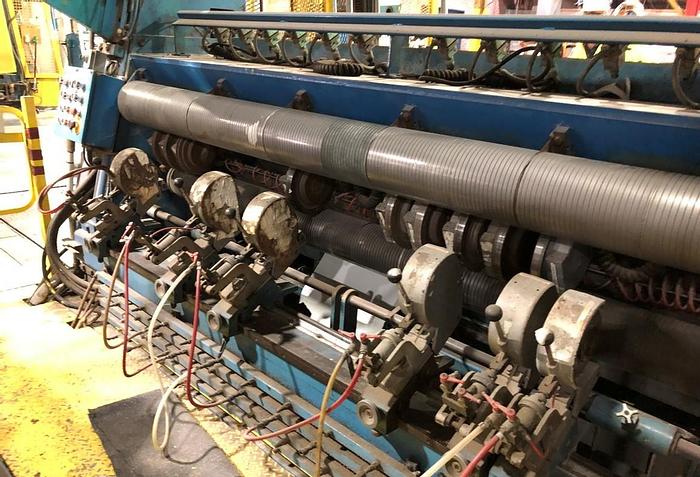

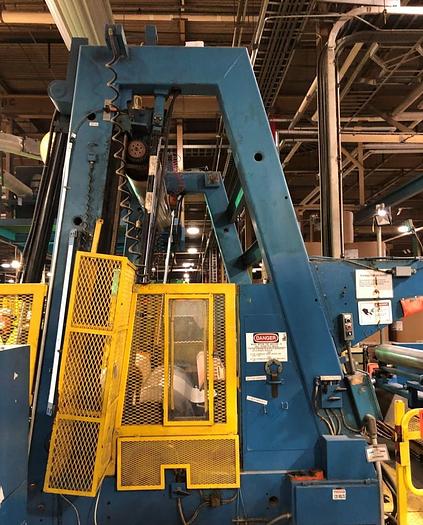

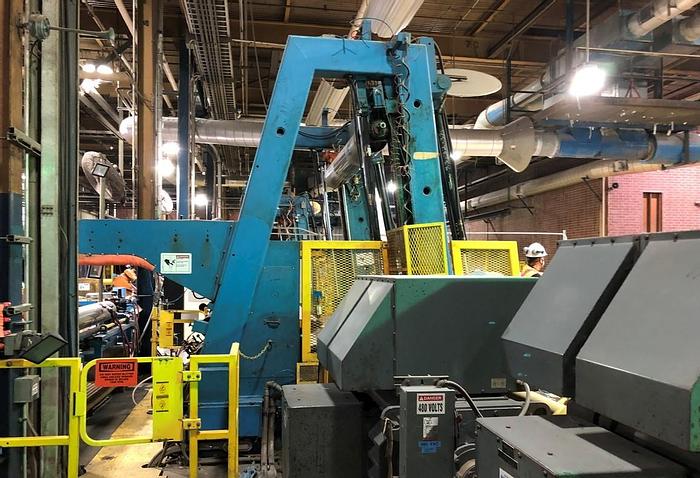

100" JAGENBERG VARI-STEP 43-18 TWO DRUM SLITTER REWINDER

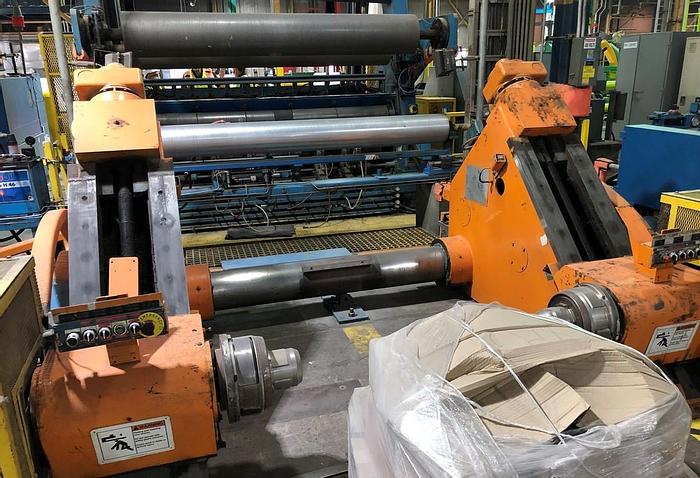

SHAFTLESS FLOOR PICK UP UNWIND

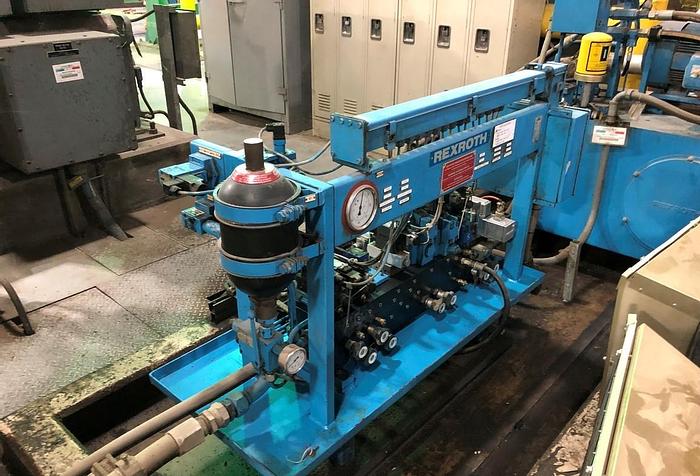

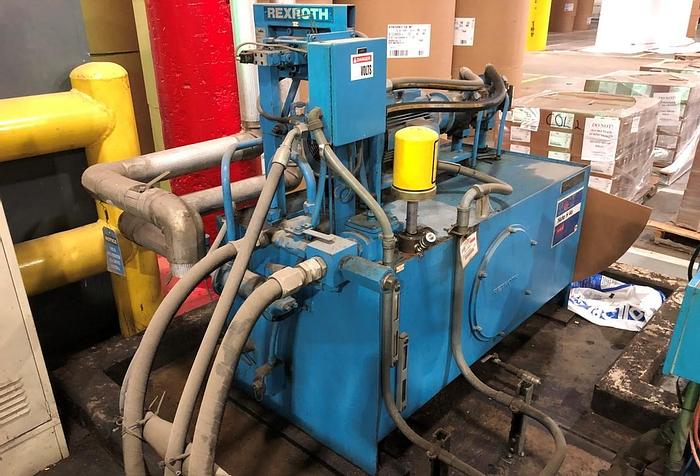

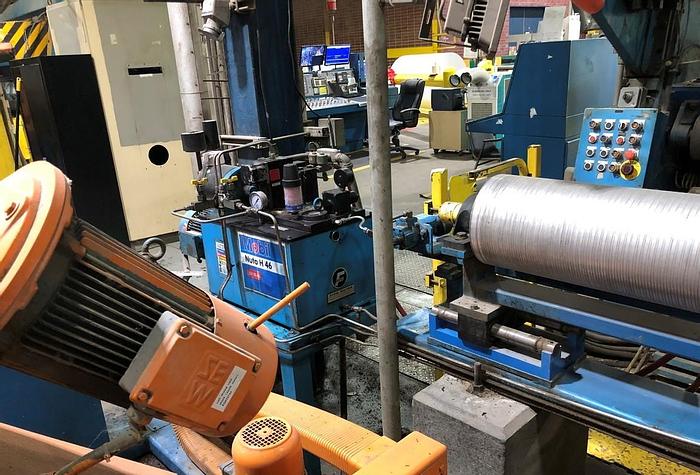

HYDRAULIC & PNEUMATIC PANELS

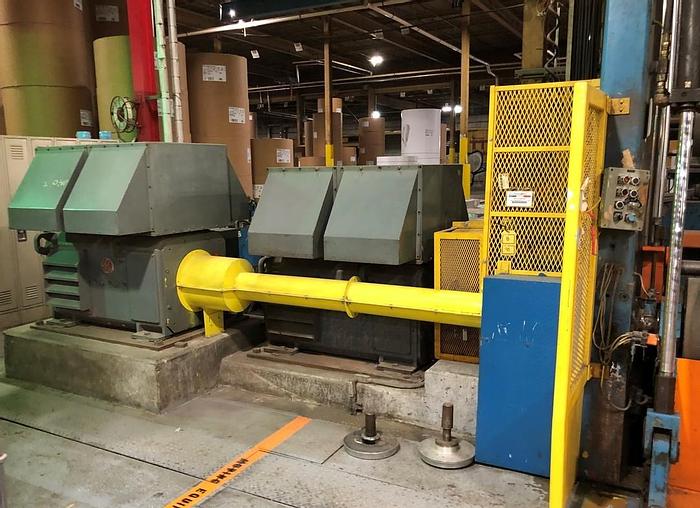

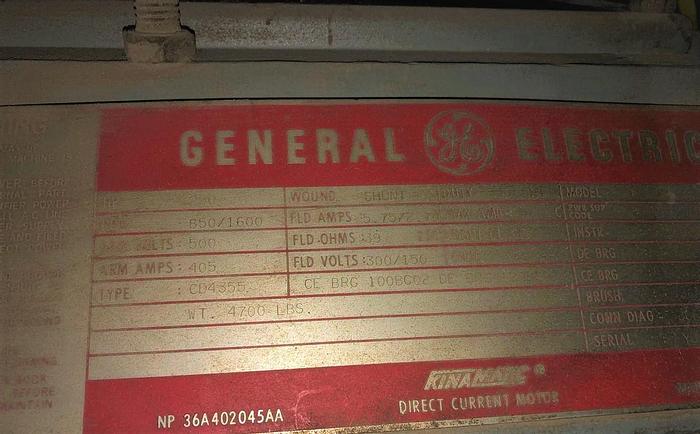

MAIN DRIVE DC MOTORS 250 HP

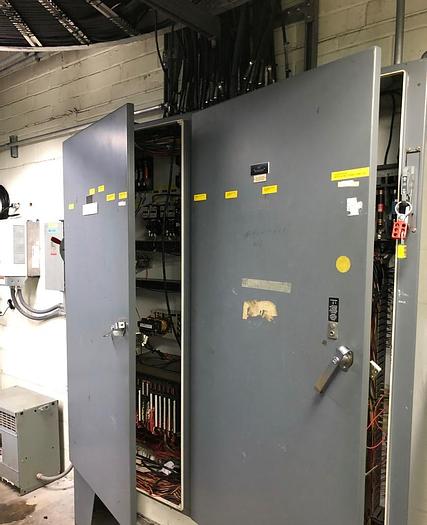

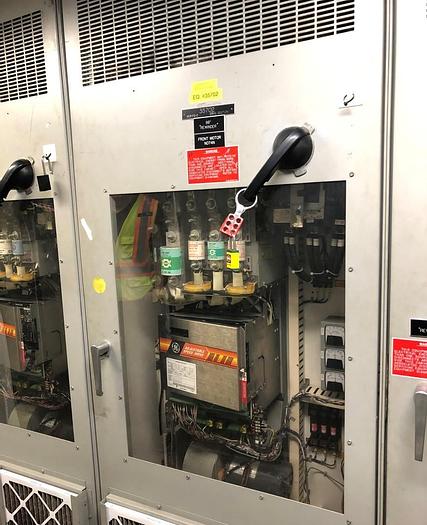

MAIND DRIVE GE PANELS

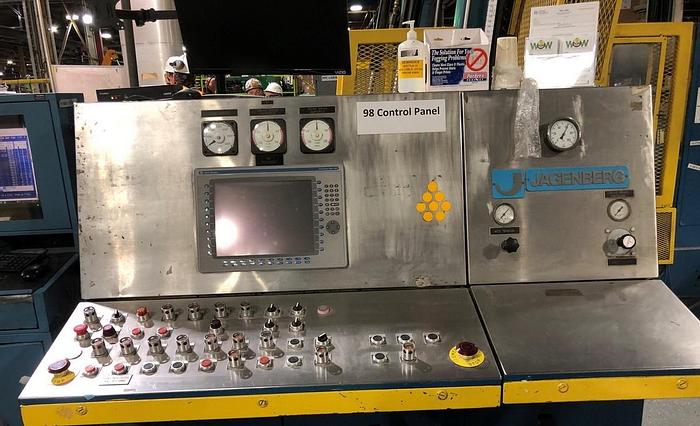

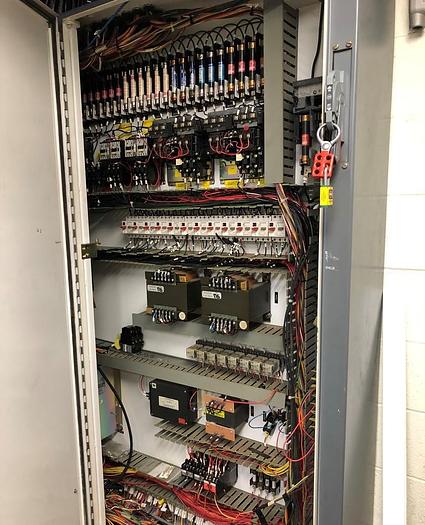

MAIN CONTROL PANEL
MAX SPEED 6000 FPM
MAXIMUM UNWIND DIAMETER 72"
MAXIMUM REWIND DIAMETER 72"
MINIMUM SLIT WIDTH 4.33"
DIAMETER OF REAR DRUM 29.5"
DIAMETER FRONT FRUM 19.7"
Specifications
| Manufacturer | JAGENBERG |
| Model | vari-step 43-18 |
| Year | 1990 |
| Condition | Used |
| Serial Number | 89.0215 |
| Stock Number | 109213 |
| Width | 100.0 in |
| Rewind diameter | 72.0 in |
| Production | 30-40 tpd of crepe paper towel 41 gsm |
| Type of furnish | waste paper |
| Width at reel | 2320 mm |
| Speed on yankee | 320-350 m/min |
| Yankee diameter | 3187 mm, metallized in 2001 |
| Yankee operating pressure | 2.5 bar |
| Press section | 2 presses (1 felt press, 1 yankee) |
| Dry section | 8 drying cylinders. Canopy hood on the cylinders |
| Cylinder diameter | 1500 mm |
| Cylinder operating pressure | 2.5 bar |
