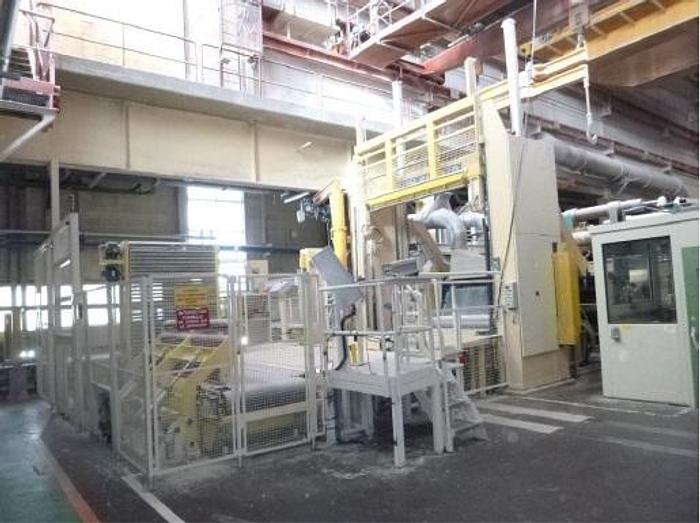

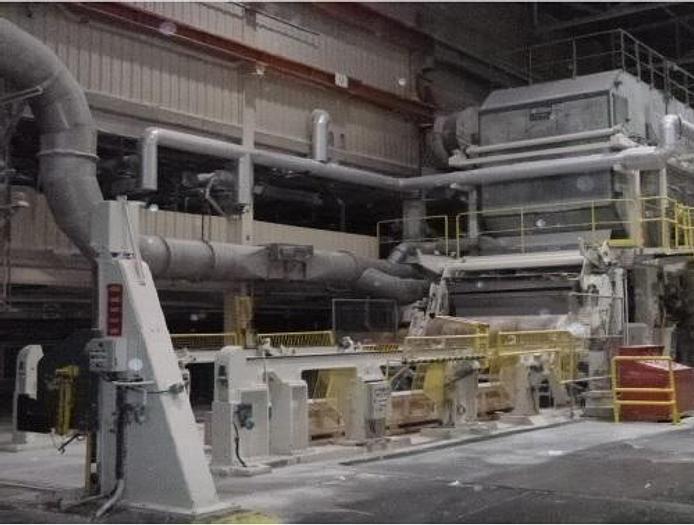

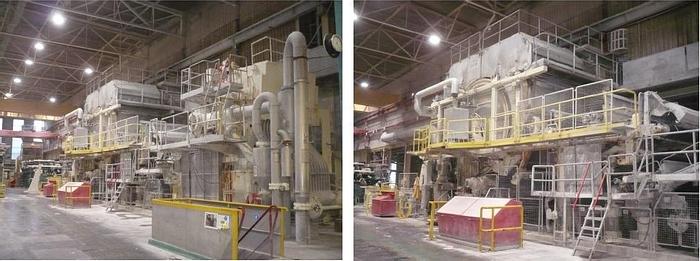

105" (2680mm) Beloit Tissue Machine

105" (2680mm) Beloit Tissue Machine

Contact us for price

orCall +1 215-664-6016

Description

Manufacturer: Beloit Type: Suction breast roll former (inclined wire) Year: 1971 (Startup) Nominal Width: 2720 mm Width at pope: 2680 mm Design Speed: 1600 m/min Production Speed: up to 1550 m/min Grammage: 14 to 23 gsm Production: 55-65 tpd Raw material: virgin pulp Drive voltage: 400 V, 50 Hz Machine Drive type: ABB Hood Drive type: Siemence DC DCS made by ABB Major rebuilds in 1984 (drying system) and 2004 (Yankee Cylinder) Key Products: all type napkins, facials, toilet & kitchen towels Scope of Supply: Stock Preparation: 2 refiners, cleaners, fan pump Beloit Headbox (slice width: 2743 mm) Forming: Shoe pickup, N°2 felt vacuum boxes Valmet Yankee Cylinder installed NEW in 2004 (diameter 4580 mm) Suction press: 78 kN/m, blind press: 80 kN/m Gas drying hoods rebuilt in 1984, 430 °C Pope Reeler width 2680 mm (max roll diameter 2000 mm) Extractor with roll up-ender ABB scanner (Type 1190/SP700) Hydraulic station and lubrication system Several electrical and mechanical spare parts available + 2 felts + 2 wires Drawings and technical files available

Specifications

ManufacturerBeloit
ModelVER4578
Year1971
ConditionUsed
Stock Number109215
Width105.0 in
TypeSuction breast roll former (inclined wire)
Nominal width2720 mm
Type of furnishwaste paper
Width at pope2680 mm
Design speed1600 m/min
Production speedup to 1550 m/min
Grammage14 to 23 gsm
Production55-65 tpd
Width at reel2320 mm
Raw materialvirgin pulp
Drive voltage400 V, 50 Hz
Machine drive typeABB
Hood drive typeSiemence DC
Speed on yankee320-350 m/min
Key productsall type napkins, facials, toilet & kitchen towels
Stock preparation2 refiners, cleaners, fan pump
Beloit headbox (slice width2743 mm)
FormingShoe pickup, N°2 felt vacuum boxes
Yankee diameter3187 mm, metallized in 2001
Yankee operating pressure2.5 bar
Press section2 presses (1 felt press, 1 yankee)
Dry section8 drying cylinders. Canopy hood on the cylinders
Cylinder diameter1500 mm
Cylinder operating pressure2.5 bar
