54" Dusenbery 616MP 3 Ply Add Roll Slitter
Description

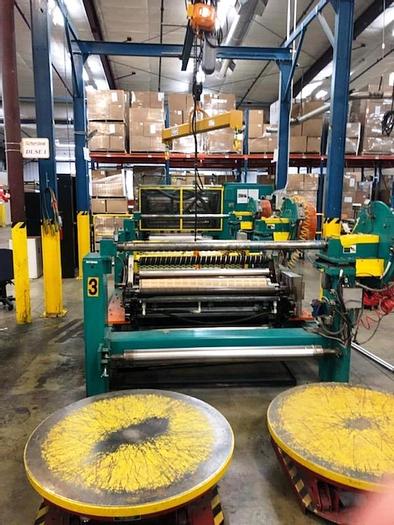

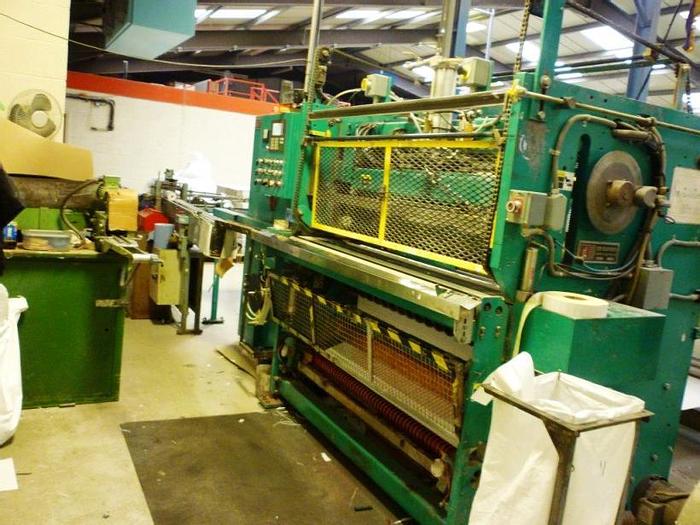

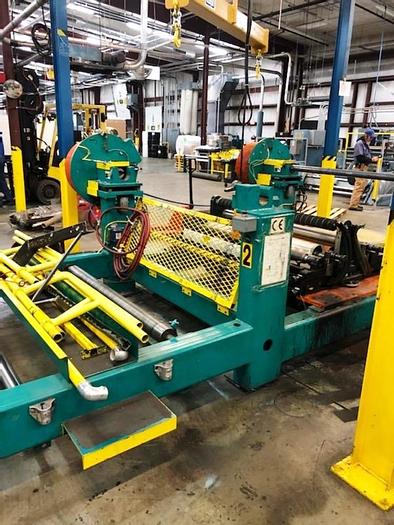

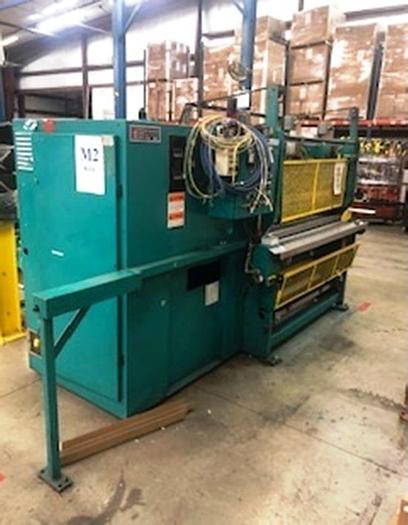

54" Dusenbery model 616 MP slitter rewinder Built in 1995.
This is a highly automated slitter-rewinder designed for production of Point of Purchase (cash register) receipt rolls.
It can process single or two or three ply papers as follows: Bond Paper- 2.8 mil to 3.9 mil, Thermal Paper- 12 to 20 pound.
This machine features an automatic tabbing assembly for sealing the finished roll on single-ply or three ply rolls, and an auto-inking system to mark roll depletion for consumer and auto-tabbing and roll ejection. Specifications of the machine is as follows: Control System: Mitsubishi PLC with E600 operator interface., Drive System- 30 HP single motor main drive, 5 HP motor for rider roll, Electrics- 480v/3ph/60hz, 100 AMP required, 45 AMP average use, Model 616SU three ply Unwind Assembly: Maximum Unwind Core Width- 54", Minimum Unwind Core Width- 40", Maximum Roll Diameter- 50", Maximum Roll Weight- 3,250 lbs, Core Size Inner Diameter- 3.0", Includes: electrically actuated manual edge guide, 3" steel air-shaft. Slitting Section: Slitting Widths- 1 ¾" to 4 1/2" , Slitting Method- Rotary Shear knives , Rewind Section: Maximum untrimmed web width - 54 ¼", Maximum trimmed web width- 54" , Maximum rewind diameter- 5", Minimum roll diameter for auto tabbing and auto eject- 2 1/8", Minimum core inside diameter- 7/16", Minimum core outside diameter using 3" TRR- 7/8". The printing press is not included.
Specifications
Manufacturer | DUSENBERY |
Model | 616 MP |
Year | 1995 |
Condition | Used |
Stock Number | 109164 |
Width | 54.0 in |
Rewind diameter | 5.0 in |
It can process single or two or three ply papers as follows | Bond Paper- 2.8 mil to 3.9 mil, Thermal Paper- 12 to 20 pound. |
