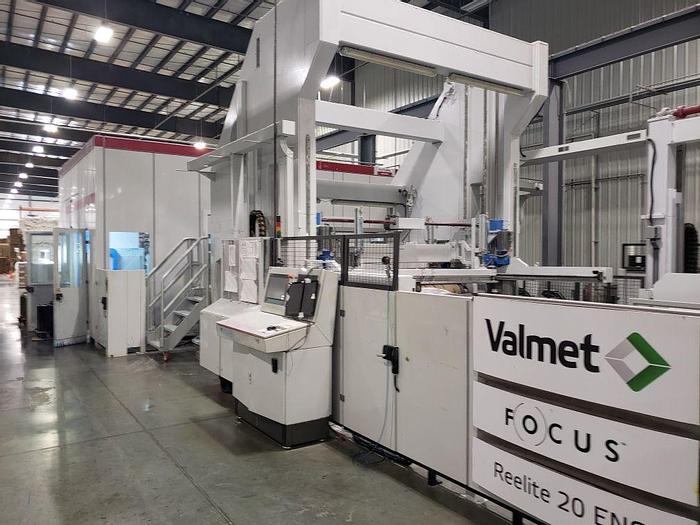

110" VALMET FOCUS FOUR COLOR TISSUE REWINDER AND FUTURA PRINTER MFG. 2015

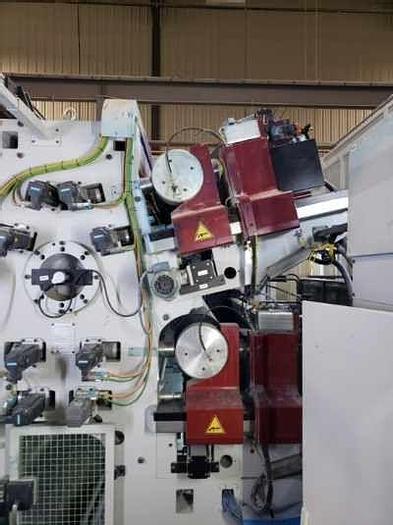

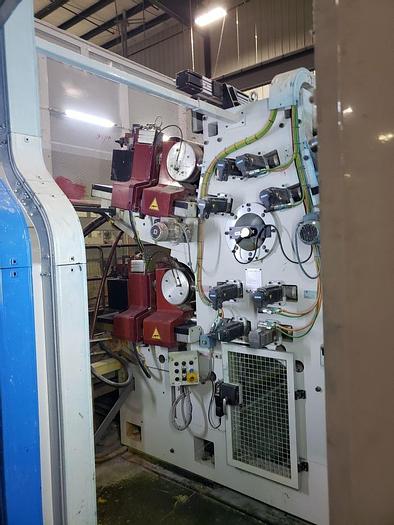

109162 Paper Grade: Tissue Basis weight range: 12-40 ghm Crepe ratio: 9-25 % General Drive Side: (as per web flow) Left Web Width: Max 110” (2590.8mm) Cliché Roll Diameter: Base Mandrel Diam. 12.15” (308.61mm) Total Finished Diameter (base mandrel + sleeve): 12.738” (323.54mm) Printer Unit Futura, year 2015 Model: F80.A 4-Colour OFF line Printer s/n 183 Unwind Stand: 1x F70 Manual up to 1000 m/min (3280 ft/min) Parent Roll Max. Diameter: 3000mm (118”) Parent Roll Max Weight: 5000kg (11000lb) for Max Diameter 300mm (118”) Core Plugs – qty 4 – 297mm (11 11/16”) Slitting Unit Type: CM-150A Sitting System: Shear type No. of slitters: 14 Slitting min Width: 150 mm Blade diameter: 180 mm Counterblade diameter: 250 mm Slitting unit positioning: Manual system Rewinder Valmet Focus Reelite 20-ENS Shaft Sizes: 2 x 3” + 2 x 12” 12-40 g/sq.M Carrying Drums Diameter: 750 mm Face: 2900 mm Finished Reels Max Diameter 2500mm Max Width 2700mm Speed and Ramps Design Speed: 1300 mt/min Max Speed Operaling and Drive: 1100 mt/min Effective Working Speed: Deperding on paper qualily, number of slitters, cores size, etc... Normal acc/dec: 16 mt/min/sec - The value of acceleration ramp is affected by max winding shaft rpm Fast Stop: 30 mt/min/sec - Without paper tension contol Emergency Stop: 100 mt/min/sec - By drive and final mechanical brake lock
