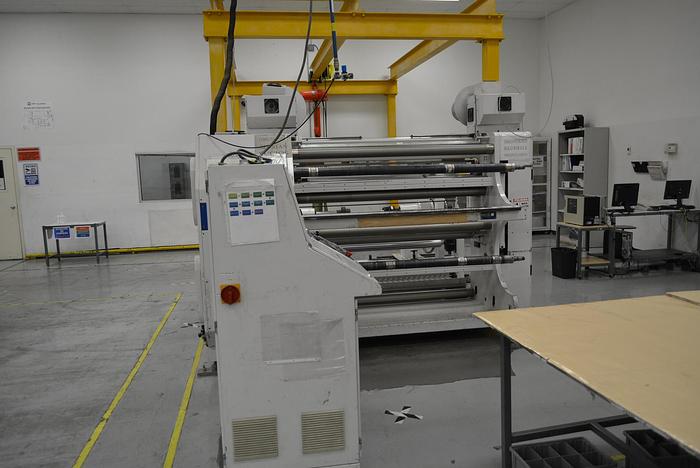

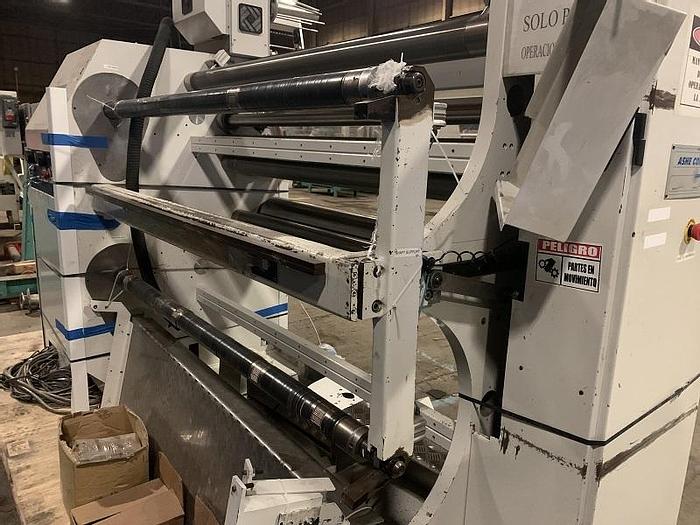

62" ASHE DUPLEX CANTILEVERED SLITTER REWINDER
No longer available
62" ASHE DUPLEX CANTILEVERED SLITTER REWINDER
Description
903667
One (1) Used Ashe Sapphire Cantilevered Slitter Rewinder
Allen Bradley controls

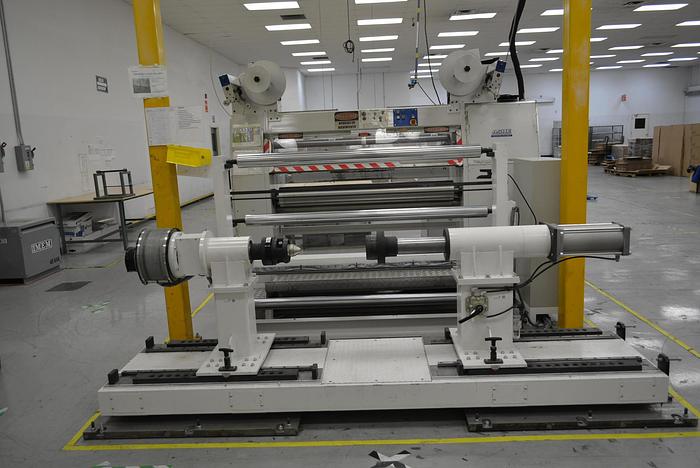

Unwind control: Torque-controlled via air operated brake from calculated unwind diameter
Unwind diameter max: 42"
Unwind weight max: 3200 lbs
Unwind tension: Appx. 3-100 lbs
Unwind core size: 3"
Ultrasonic web guide
Web guide movement: +/-3", 1" per second correction rate

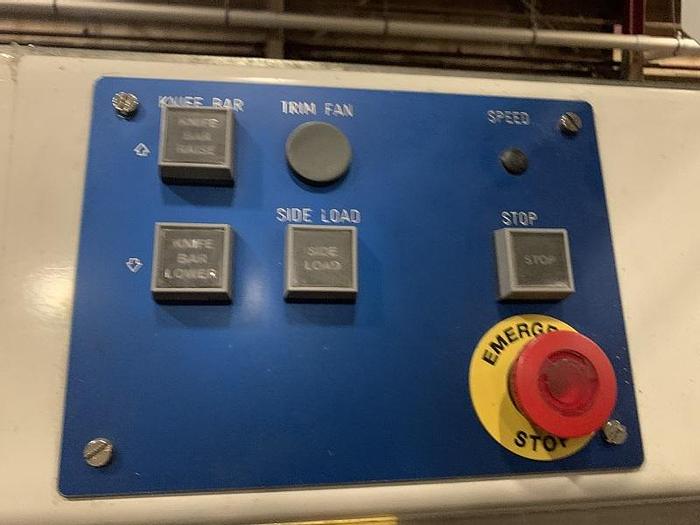

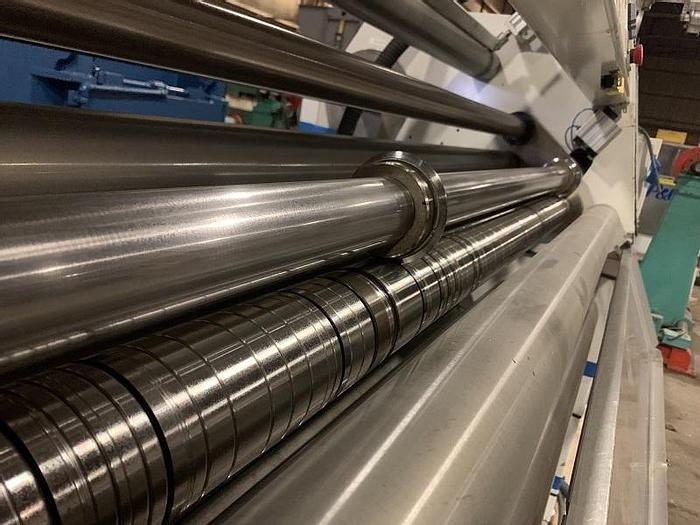

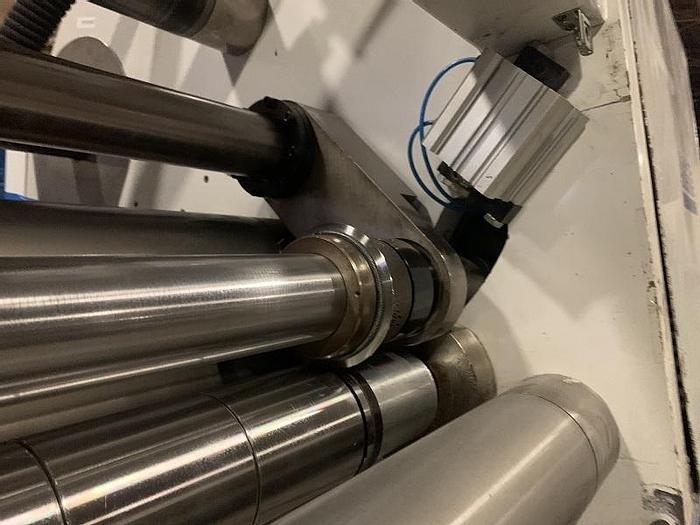

Slitting: Cantilevered rotary shear slitting. Driven male and female knife bars
Machine speed: 1000ft/minute (manual), 1500ft/minute (max).

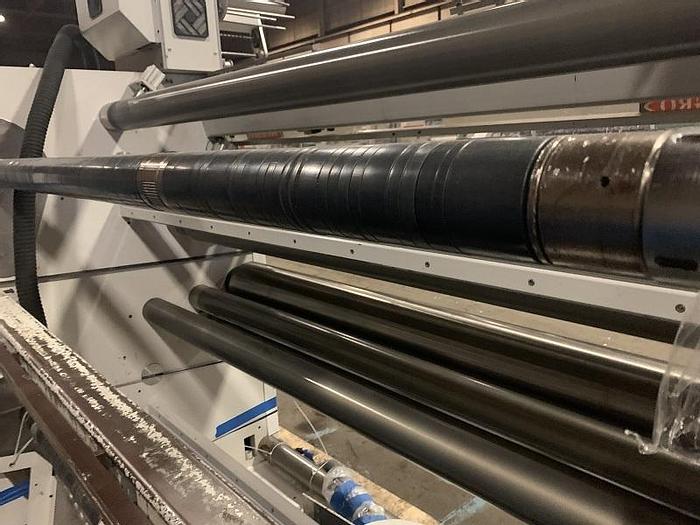

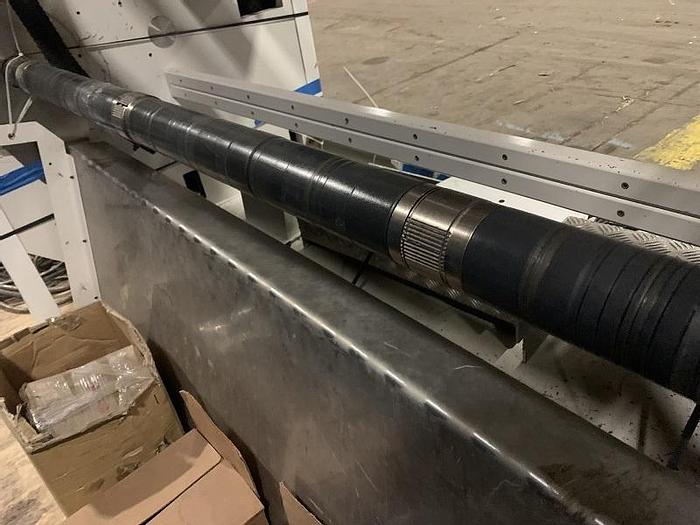

Rewind configuration: Differential chucks
Rewind chuck widths: 2", 3" & 72mm
Rewind tension: Appx. 3oz - 9lbs
Rewind diameter max: 24"
Rewind diameter weight max: 220lbs

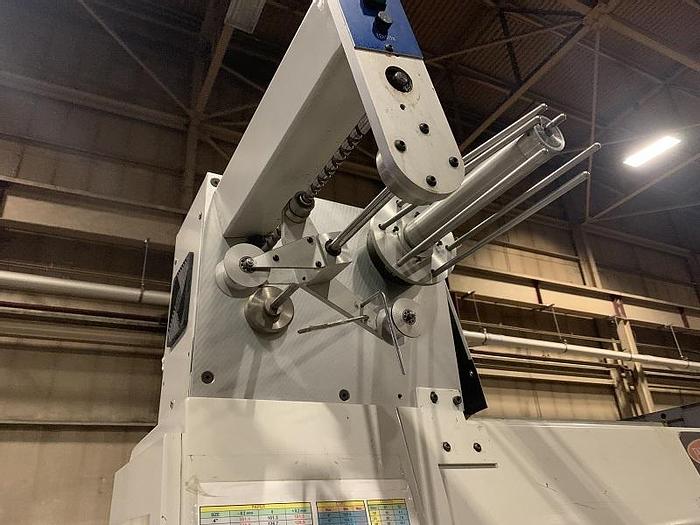

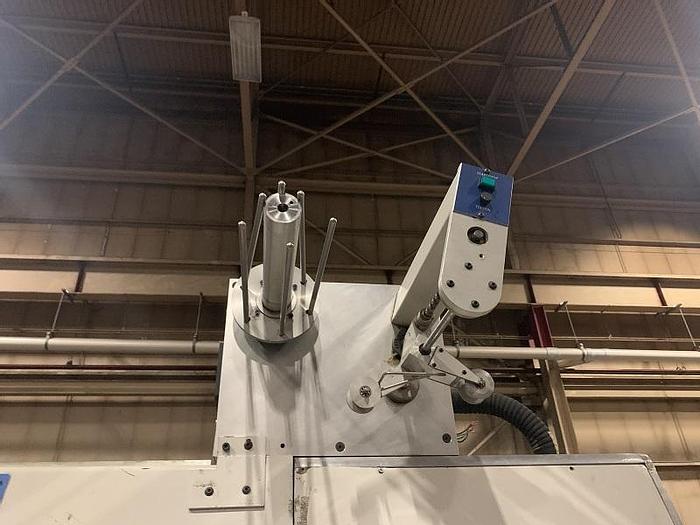

Dual trim winders:
Up to 1" width trims
Traverse width: 15"
Rewind diameter for trim winders: 16"
Traverse type: fixed pitch (.25 inch per turn)
Core diameter: 6" (coreless style trim winders)
Max trim speed: 1500ft/minute
Tapered mandrel with air release
Rewind Upgraded in 2019 for $66,000.00
Specifications
Manufacturer | ASHE |
Model | SAPPHIRE 160-80 |
Condition | Used |
Serial Number | W/O 19693 |
Stock Number | 903667 |
Width | 62.0 in |
Rewind diameter | 24.0 in |
Unwind control | Torque-controlled via air operated brake from calculated unwind diameter |
Unwind diameter max | 42" |
Unwind weight max | 3200 lbs |
Unwind tension | Appx. 3-100 lbs |
Unwind core size | 3" |
Web guide movement | +/-3", 1" per second correction rate |
Slitting | Cantilevered rotary shear slitting. Driven male and female knife bars |
Machine speed | 1000ft/minute (manual), 1500ft/minute (max). |
Rewind configuration | Differential chucks |
Rewind chuck widths | 2", 3" & 72mm |
Rewind tension | Appx. 3oz - 9lbs |
Rewind diameter max | 24" |
Rewind diameter weight max | 220lbs |
Traverse width | 15" |
Rewind diameter for trim winders | 16" |
Traverse type | fixed pitch (.25 inch per turn) |
Core diameter | 6" (coreless style trim winders) |
Max trim speed | 1500ft/minute |
